| Fitur | Spesifikasi |
| VIGI NVR1104H-4P | |
| Video and Audio | |
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 01-Apr |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel†|
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP; 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Record Management | |
| Record Mode | Manual Recording; Scheduling Recording; Motion Detection Recording |
| Playback Mode | Instant Playback; Regular Playback; Tag Playback; Event Playback |
| Backup Mode | Regular Backup; Video Clip Backup |
| Playback Function | Play; Pause; Stop; Fast Forward; Fast Backward; Play By Frame; Full Screen; Video Clip; Export Clip; Digital Zoom; Lock Recording; Audio On/Off |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |

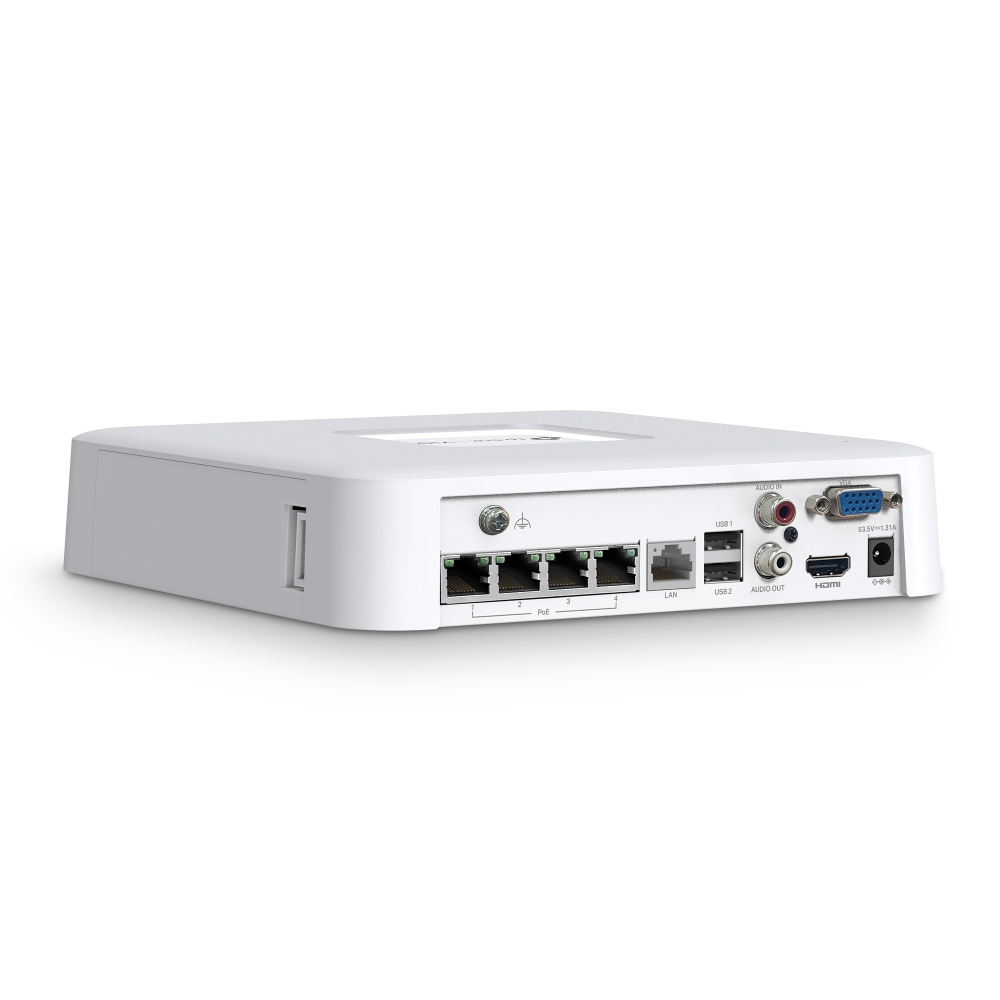

| External Interface | |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | 1; Real-time Audio Output without Needing Peripherals. |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interface; Enables Easy Manual HDD Installation and Removal with Convenient Side Access. |
| Capacity | Up to 10 TB Capacity for Each HDD* |
| PoE | |
| Standard | 802.3at/af Compliant |
| Interface | 1-4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 Wâ–³ Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
| General Alarm | Motion Detection; Video Tampering; Scene Change Detection; Line-Crossing Detection; Intrusion Detection; Region Entering Detection; Region Exiting Detection; Loitering Detection; Object Abandoned/Removal Detection; Vehicle Detection; Human Detection; Abnormal Sound Detection; Smart Frame; Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | Video Loss; Offline and IP Conflict; Disk Exception; Login Exception; Note: The alarm function requires the use of a camera. |
| Alarm Linkage | Recording; White Light Alarm; Buzzer; Log; Audible Alarm; Note: The alarm function requires the use of a camera. |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Content | VIGI Network Video Recorder; Power Adapter; Rubber Feet; HDD Screws; Mouse; Quick Installation Guide |
| Working Temperature | NVR: -10–55 °C; Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | 200.3 × 200.3 × 43 mm |
| Power Supply | 53.5V DC/1.31A |
| Max. Power Consumption | 4.82 W (Without Disk); 14.23 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
