High Performance Industrial 4-inch Wide StandardÂ

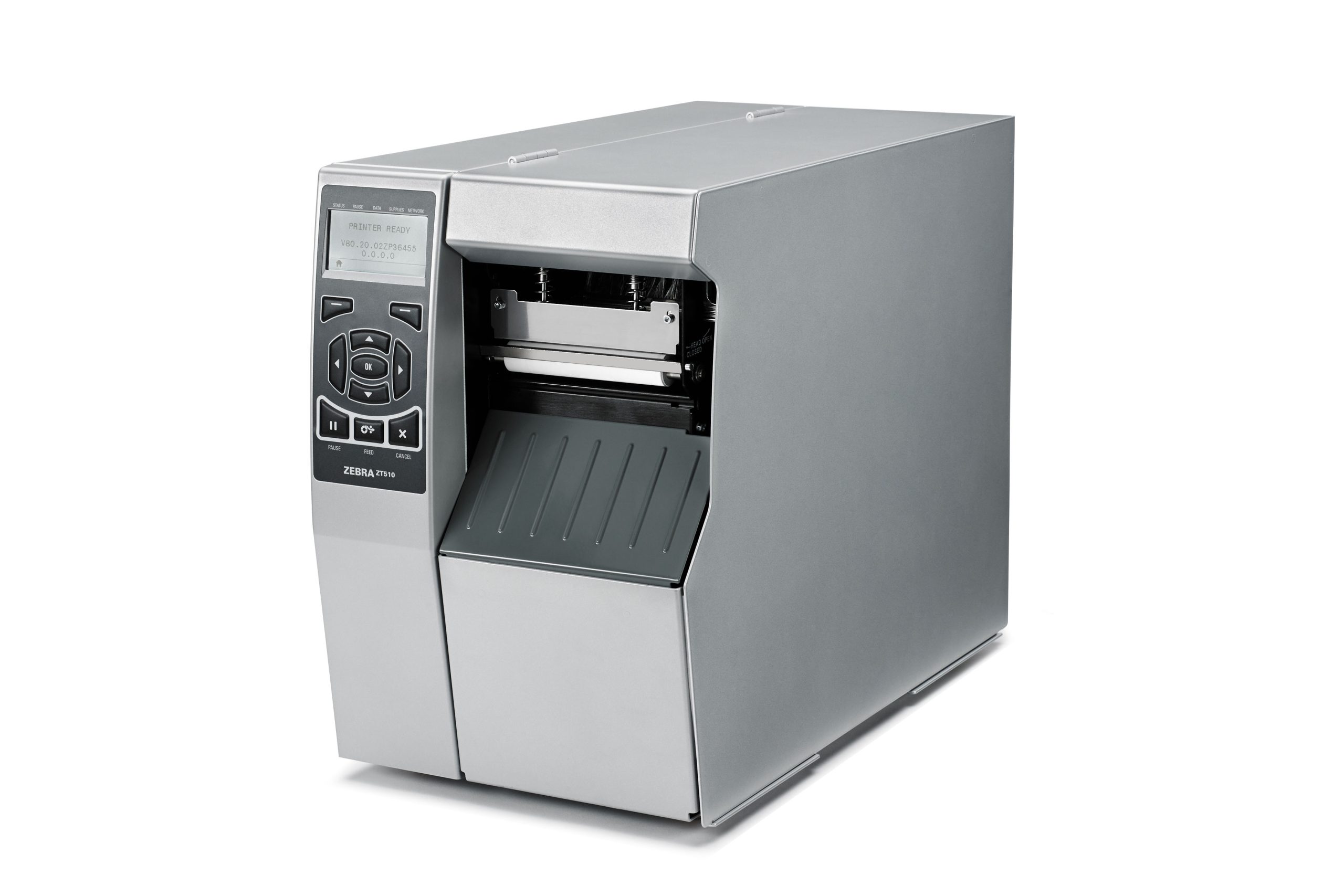

The ZT510 includes the core features you need in an industrial printer at a cost-effective price point. The ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come—all at an exceptional value.Â
In the BoxÂ
Key FeaturesÂ
Commonly Used ForÂ
| Parameter / Feature | Specification Details |
| PRINTER SPEC - Resolution | 203 dpi (8 dots/mm) standard; 300 dpi (12 dots/mm) optional |
| PRINTER SPEC - Memory | 512 MB RAM; 2 GB on-board linear Flash memory |
| PRINTER SPEC - Maximum Print Width | 4.09 in. (104 mm) |
| PRINTER SPEC - Maximum Print Speed | 12 ips (305 mm/sec) |
| PRINTER SPEC - Media Sensors | Dual media sensors: transmissive and reflective |
| PRINTER SPEC - Max Continuous Print Length | 203 dpi: 150 in. (3810 mm) | 300 dpi: 100 in. (2540 mm) |
| MEDIA - Media Width Range | 0.79 in. (20 mm) to 4.5 in. (114 mm) |
| MEDIA - Maximum Media Roll Size | 8.0 in. (203 mm) O.D. on a 3 in. (76 mm) I.D. core |
| MEDIA - Thickness Range | 0.003 in. (0.076 mm) to 0.012 in. (0.305 mm) |
| MEDIA - Media Types | Continuous, die-cut, notch, black-mark |
| RIBBON - Standard Length | 1,476 ft. (450 m) |
| RIBBON - Ribbon Width Range | 2.00 in. (51 mm) to 4.33 in. (110 mm) |
| RIBBON - Ribbon Core Inner Diameter | 1.0 in. (25.4 mm) I.D. |
| OPERATING - Operating Temperature | Thermal Transfer: 40°F to 104°F (5°C to 40°C) | Direct Thermal: 32°F to 104°F (0°C to 40°C) |
| OPERATING - Storage / Transport Temperature | -22°F to 140°F (-30°C to 60°C) |
| OPERATING - Humidity Range | Operating: 20% to 85% non-condensing | Storage: 20% to 85% non-condensing |
| OPERATING - Electrical & Power | Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, 250 Watts; ENERGY STAR qualified |
| OPERATING - Agency Approvals | IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro |
| PHYSICAL - Dimensions (Closed) | 20.17 in. L x 10.56 in. W x 15.58 in. H (512.3 mm L x 268.2 mm W x 395.68 mm H) |
| PHYSICAL - Weight | 50 lbs. (22.7 kg) |
