Premium Mobile 3-inch Wide Standard

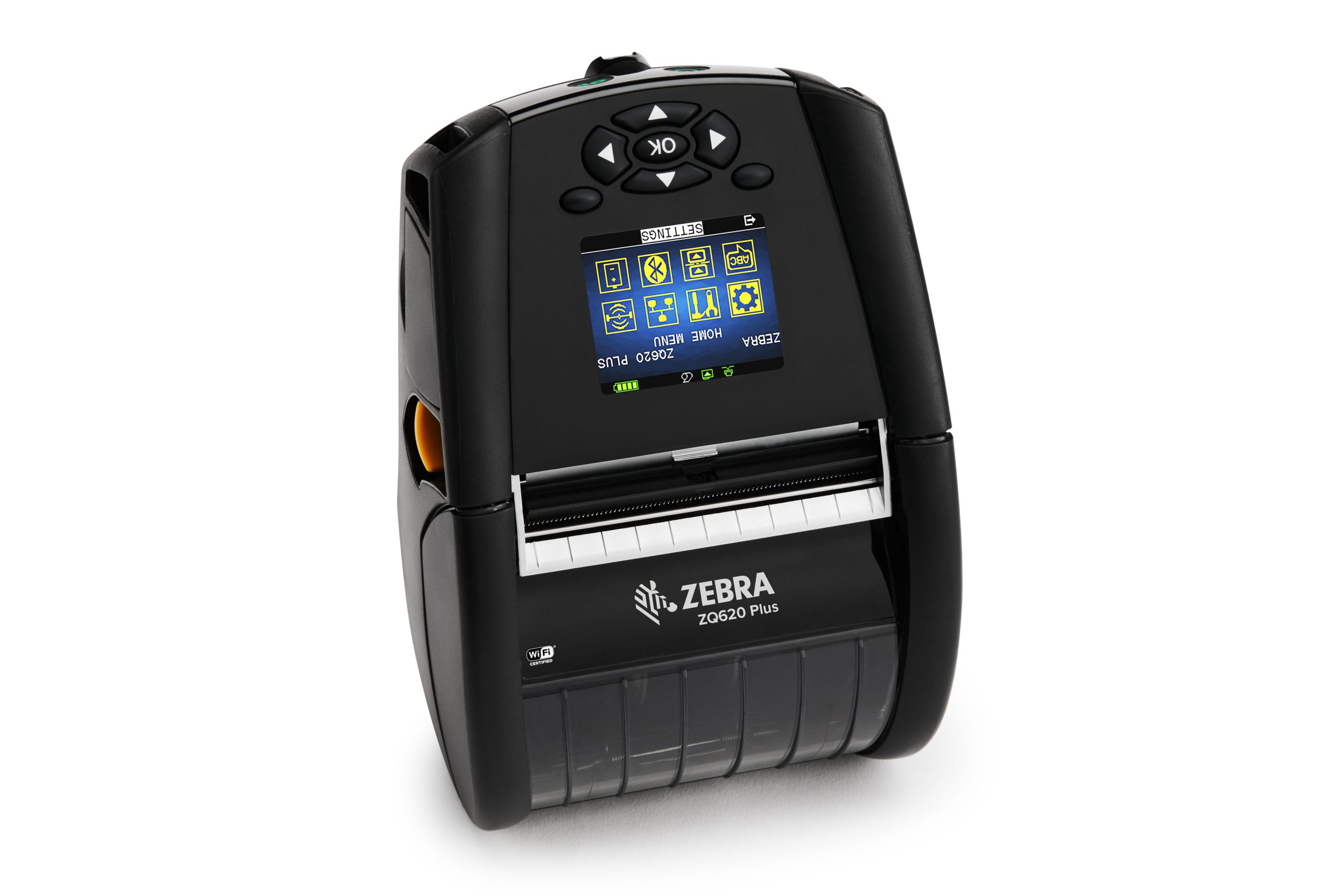

This 3-inch mobile printer is ideal for applications such as shelf labeling, mobile point of sale and inventory management, and prints receipts, labels and linerless media. The ZQ620 Plus boosts associate productivity with advanced technology, fast and secure Wi-Fi 6 (802.11ax) and Bluetooth 5.3 wireless connections, an innovative design, a large color display, superior battery management, and an instant wake-up feature. Wi-Fi 5 (802.11ac) and Bluetooth 4.2 option also available.
In the Box
Key Features
Commonly Used For
| Parameter / Feature | Specification Details |
| PHYSICAL - Dimensions | ZQ610 Plus: 6.73 x 3.6 x 2.85 in. (170.9 x 91.4 x 72.4 mm) | ZQ620 Plus: 6.84 x 4.64 x 3.03 in. (173.7 x 117.9 x 76.9 mm) | ZQ630 Plus: 7.35 x 6.5 x 3.25 in. (186.7 x 165.1 x 82.5 mm) (Note: Extended Capacity battery adds 0.6 in. / 16 mm to height) |
| PHYSICAL - Weight with Battery | ZQ610 Plus: 1.33 lbs (0.6 kg) | ZQ620 Plus: 1.6 lbs (0.73 kg) | ZQ630 Plus: 2.45 lbs (1.1 kg) |
| PRINTER SPEC - Operating System | Link-OS™ |
| PRINTER SPEC - Resolution | 203 dpi (8 dots/mm) |
| PRINTER SPEC - Memory | 256 MB RAM, 512 MB Flash (standard) |
| PRINTER SPEC - Maximum Print Width | ZQ610 Plus: 1.9 in. (48 mm) | ZQ620 Plus: 2.8 in. (72 mm) | ZQ630 Plus: 4.1 in. (104 mm) |
| PRINTER SPEC - Maximum Print Speed | Up to 4.5 in./sec (115 mm/sec) |
| PRINTER SPEC - Media Sensors | Black mark and gap media sensing using fixed center position sensors; label present sensor for batch labels |
| PRINTER SPEC - Print Length Range | Minimum: 0.5 in. (12.7 mm) | Maximum: 32 in. (813 mm) |
| PRINTER SPEC - Power & Battery | ZQ610/ZQ620 Plus: 3250 mAh (23.4 Wh) Li-Ion battery | ZQ630 Plus: 6600 mAh (47.5 Wh) Li-Ion battery |
| MEDIA - Label & Liner Length | 0.5 in. (12.7 mm) to 32 in. (813 mm) or continuous |
| MEDIA - Media Width Range | ZQ610 Plus: 1.0–2.18 in. (25–55.4 mm) | ZQ620 Plus: 1.0–3.125 in. (25–79 mm) | ZQ630 Plus: 2.0–4.4 in. (51–112 mm linered) / 2.0–4.1 in. (51–104 mm linerless) |
| MEDIA - Maximum Media Roll Size | ZQ610 Plus: 2.2 in. (55.9 mm) OD | ZQ620 Plus & ZQ630 Plus: 2.6 in. (66 mm) OD (Inner core: 0.75 in. / 19 mm or 1.375 in. / 34.9 mm) |
| MEDIA - Media Thickness Range | 2.3 mil to 5.5 mil tag stock or 6.5 mil label stock |
| MEDIA - Media Types | Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630 Plus RFID compatible), black bar and gap |
| OPERATING - Environmental Temperatures | Operating: -4°F to 122°F (-20°C to 50°C) | Storage/Transportation: -13°F to 149°F (-25°C to 65°C) |
| OPERATING - Environmental Humidity | Operating: 10% to 90% non-condensing | Storage: 10% to 90% non-condensing |
| OPERATING - Agency Approvals | Emissions: FCC Part 15 Class-B, EN55022 Class-B, EN60950, EN55024, VCCI Class B | Susceptibility: EN55024, EN61000-4-2/3/4/5 | Safety: CE, TUV, CSA | ENERGY STAR™ certified |
| OPERATING - Security Features | FIPS support is available at no cost as a printer OS download |
