Premium Mobile 4-inch Wide Standard

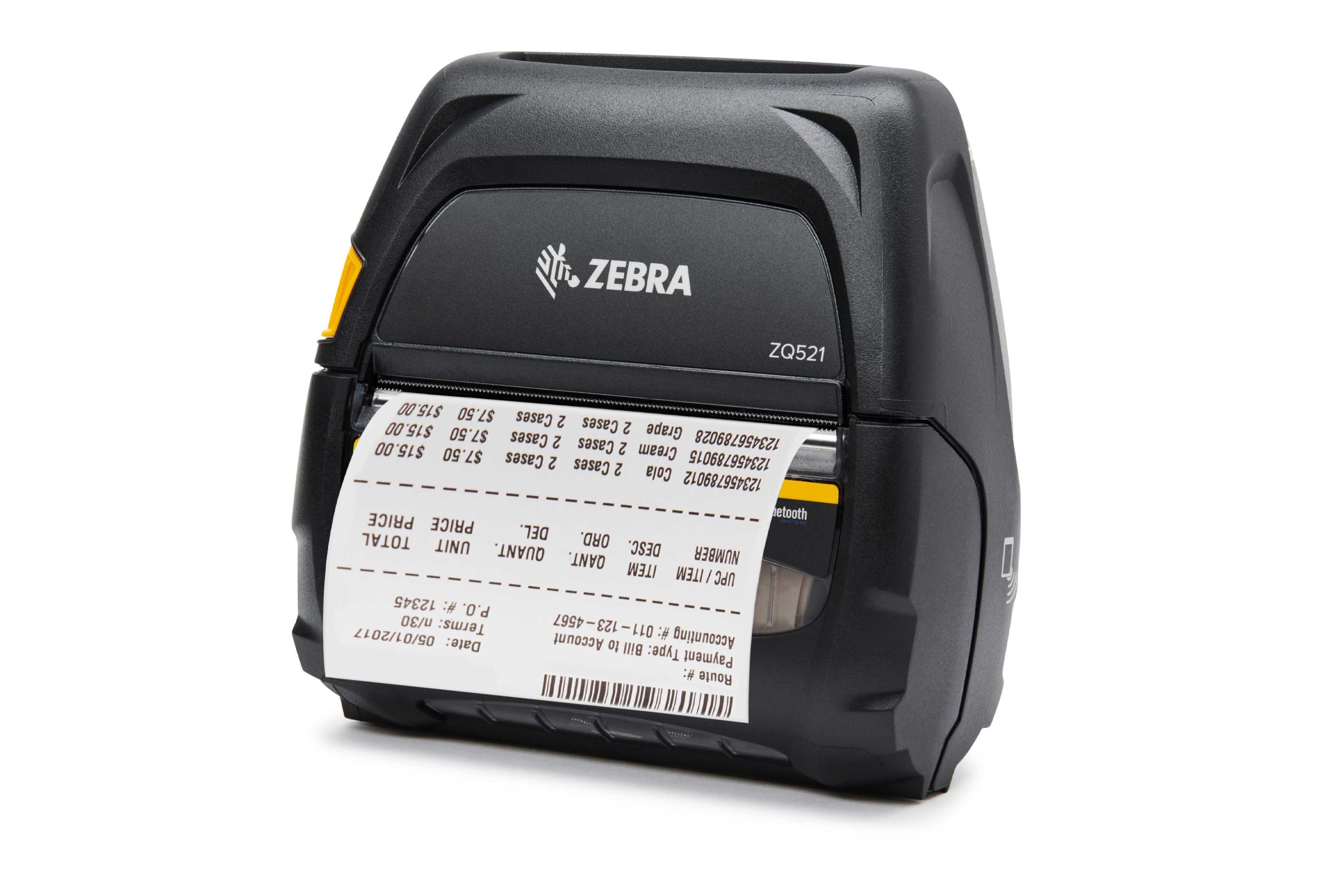

The ZQ521 4-inch mobile printer can be used to print receipts, labels or linerless media and is ideal for applications including warehouse management, packing, staging and cross-docking. This rugged mobile printer offers added durability and features like fast connectivity options, a high-capacity battery and USB on the go for easy printer maintenance in the field. We pushed the limits on rugged engineering to deliver the toughest mobile printers for harsh conditions.
In the Box
Key Features
Commonly Used For
| Parameter / Feature | Specification Details |
| PHYSICAL - Dimensions | ZQ511: 5.9 in. L x 4.7 in. W x 2.4 in. H (150 mm L x 120 mm W x 62 mm H) | ZQ521: 6.2 in. L x 6.1 in. W x 2.6 in. H (158 mm L x 155 mm W x 67 mm H) |
| PHYSICAL - Weight with Standard Battery | ZQ511: 1.39 lbs (0.63 kg) | ZQ521: 1.73 lbs (0.79 kg) |
| PHYSICAL - Weight with Extended Battery | ZQ511: 1.62 lbs (0.72 kg) | ZQ521: 1.96 lbs (0.89 kg) |
| PRINTER SPEC - Operating System | Link-OS™ printer operating system |
| PRINTER SPEC - Resolution | 203 dpi (8 dots/mm) |
| PRINTER SPEC - Memory | 256 MB RAM, 512 MB Flash (standard) | 8 MB RAM, 64 MB Flash (user available) |
| PRINTER SPEC - Maximum Print Width | ZQ511: 2.83 in. (72 mm) | ZQ521: 4.09 in. (104 mm) |
| PRINTER SPEC - Maximum Print Speed | Up to 5 in./sec (127 mm/sec) with Draft Mode enabled |
| PRINTER SPEC - Media Sensors | Black mark and gap media sensing using fixed center position sensors (Note: RFID models do not support gap sensing) |
| PRINTER SPEC - Print Length | Maximum: 39 in. |
| PRINTER SPEC - Power & Battery | 3250 mAh (nominal), removable, rechargeable PowerPrecision+ Li-Ion battery; optional 6500 mAh extended battery |
| MEDIA - Min/Max Media Width | ZQ511: 1.38 in. (35 mm) to 3.15 in. (80 mm+1 mm) | ZQ521: 2.0 in. (50.8 mm) to 4.45 in. (113 mm+1 mm) |
| MEDIA - Maximum Media Roll Size | ZQ511: 2.0 in. (51 mm) | ZQ521: 2.24 in. (57 mm) |
| MEDIA - Maximum Media Thickness | 0.0063 in. (0.1600 mm) for labels | 0.0055 in. (0.1397 mm) for tag/receipt |
| MEDIA - Minimum Media Thickness | 0.0023 in. (0.05842 mm) for all media (ZQ511 Linerless SKU: 0.0021 in. / 0.05334 mm) |
| MEDIA - Media Types | Receipt, Gap/Black-mark Label, Tag, Linerless, RFID (Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing) |
| OPERATING - Environmental Temperatures | Operating: -4°F to 131°F (-20°C to 55°C) | Charging: 32°F to 104°F (0°C to 40°C) | Cradle: 32°F to 122°F (0°C to 50°C) | Storage: -22°F to 150°F (-30°C to 66°C) |
| OPERATING - Environmental Humidity | Operating: 10% to 90% non-condensing | Storage: 10% to 90% non-condensing |
| OPERATING - Agency Approvals | Emissions: FCC Part 15 Subpart B, EN55022 Class-B, EN55024, ICES-003, EN55032, EN301489 | ENERGY STAR™ certified |
| OPERATING - Security | FIPS support is available at no cost as a printer OS download |
