ZD621R

Kategori :

Desktop Printer
Tanyakan mengenai produk ini

Deskripsi

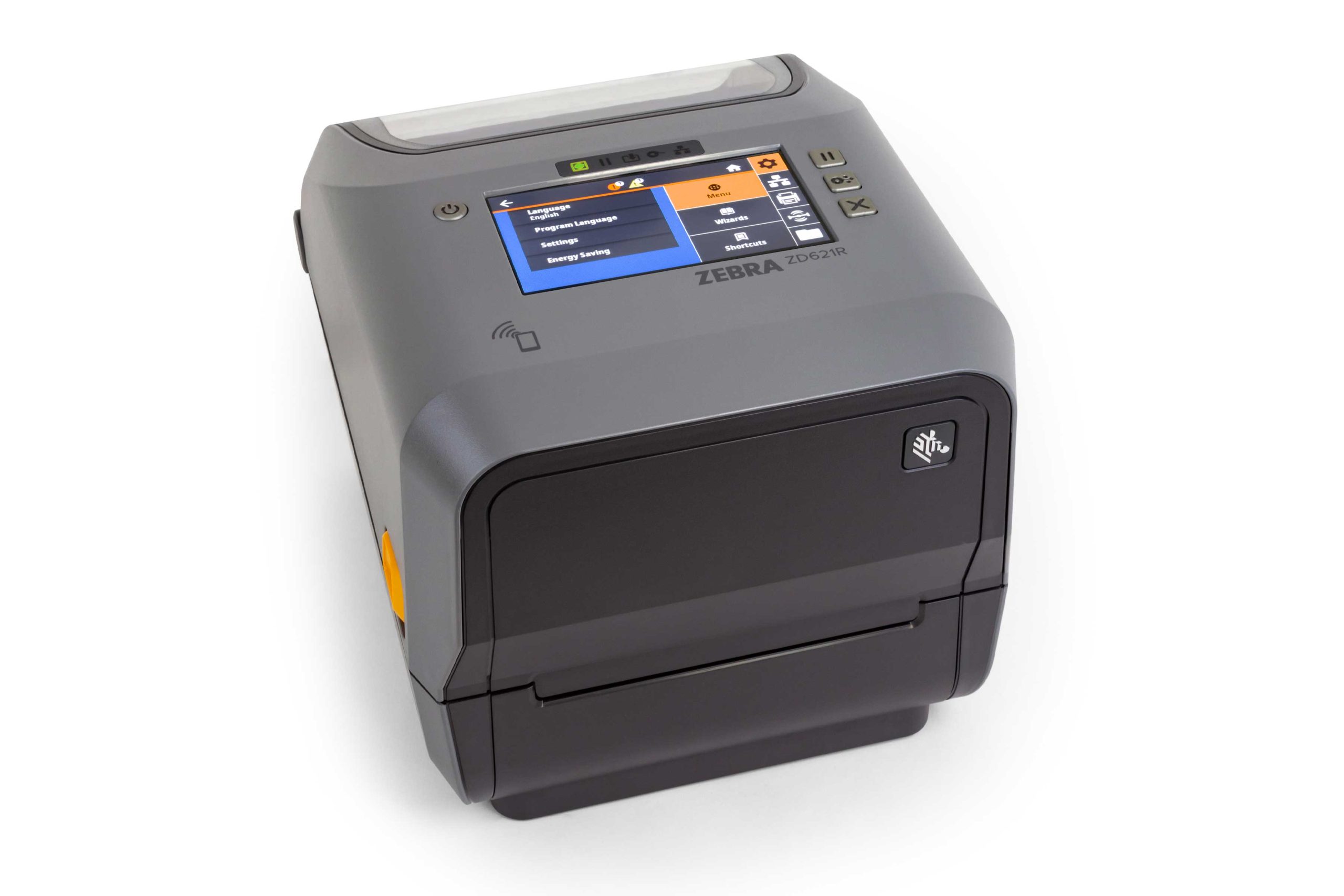

Premium Desktop Thermal Transfer 4-inch Wide RFID

Optimized to efficiently print and encode RFID labels, the 4-inch ZD621R gives you greater tracking abilities, deeper visibility, and enterprise insights-without complication. It comes standard with a 4.3-inch, full color LCD touch display with intuitive menu for easy setup and use.

In the Box

  • Printer
  • Power supply and power cord
  • USB cable
  • Quick start guide
  • Empty ribbon take-up cores (1 inch and 0.5 inch)

Key Features

  • Print Technology: Thermal Transfer/Direct Thermal
  • Print Speed: 6 ips (152 mm/s), 8 ips (203 mm/s)
  • Print Resolution: 203 dpi (8 dot/mm), 300 dpi (12 dot/mm)
  • Connectivity: Wi-Fi 6 (802.11ax) with Bluetooth 5.3 (optional), Wi-Fi 5 (802.11ac) with Bluetooth 4.2 (optional), Bluetooth Low Energy
Parameter / FeatureSpecification Details
PHYSICAL - Dimensions (ZD621R)10.5 in. L x 8.0 in. W x 7.5 in. H (267 mm L x 202 mm W x 192 mm H)
PHYSICAL - Dimensions (ZD611R)9.56 in. L x 5.46 in. W x 6.66 in. H (242.9 mm L x 138.7 mm W x 169.2 mm H)
PHYSICAL - Weight (ZD621R / ZD611R)ZD621R: 5.5 lb (2.5 kg) | ZD611R: 3.59 lb (1.629 kg)
PRINTER SPEC - Operating SystemLink-OS
PRINTER SPEC - Resolution203 dpi (8 dots/mm) standard; 300 dpi (12 dots/mm) optional
PRINTER SPEC - Memory512 MB Flash; 256 MB SDRAM
PRINTER SPEC - Maximum Print Width (ZD621R)203 dpi: 4.09 in. (104 mm) | 300 dpi: 4.27 in. (108 mm)
PRINTER SPEC - Maximum Print Width (ZD611R)203 dpi: 2.2 in. (56 mm) | 300 dpi: 2.13 in. (54 mm)
PRINTER SPEC - Maximum Print Speed203 dpi: 8 in./sec (203 mm/sec) | 300 dpi: 6 in./sec (152 mm/sec)
PRINTER SPEC - Media SensorsFull width moveable reflective/black mark sensor; multi-position transmissive/gap sensor
PRINTER SPEC - Firmware / ProgrammingZPL II, EPL 2, XML, ZBI, PDF Direct
MEDIA - Label LengthMinimum: 0.25 in. (6.35 mm) | Maximum: 39.0 in. (991 mm)
MEDIA - Media Width (ZD621R / ZD611R)ZD621R: 0.585 in. (15 mm) to 4.65 in. (118 mm) | ZD611R: 0.585 in. (15 mm) to 2.36 in. (60 mm)
MEDIA - Media Roll SizeMax Outer Diameter: 5.00 in. (127 mm) | Core ID: 0.5 in. (12.7 mm) & 1.0 in. (25.4 mm) standard; 1.5 in., 2.0 in., 3.0 in. via optional adapters
MEDIA - Media Thickness0.0024 in. (0.06 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only)
MEDIA - Media TypesRoll-fed or fan-fold, die cut or continuous with/without black mark, tag stock, continuous receipt paper, wristbands
RIBBON - Outside Diameter2.6 in. (66 mm) for 300 m; 1.34 in. (34 mm) for 74 m
RIBBON - Standard Length984 ft. (300 m); 243 ft. (74 m)
RIBBON - Ribbon Ratio1:4 ribbon to media (300 m) | 1:1 ribbon to media (74 m)
RIBBON - Ribbon Width (ZD621R / ZD611R)ZD621R: 1.3 in. (33 mm) - 4.3 in. (109.2 mm) | ZD611R: 1.3 in. (33 mm) - 2.24 in. (58 mm)
RIBBON - Ribbon Core I.D.1 in. (25.4 mm) for 300 m; 0.5 in. (12.7 mm) for 74 m
OPERATING - Temperature RangeOperating: 40° to 105° F (4.4° to 41° C) | Storage: -40° to 140° F (-40° to 60° C)
OPERATING - Humidity RangeOperating: 10% to 90% non-condensing | Storage: 5% to 95% non-condensing
OPERATING - Electrical & PowerAuto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI; optional 2750 mAh battery; Healthcare IEC60601-1
OPTIONS - Media HandlingDispenser/Peeler with label present sensor; Cutter (factory or field installable)
OPTIONS - CommunicationsWi-Fi 6 (802.11ax) & Bluetooth 5.3 (Factory MIMO / Field SISO)
OPTIONS - Battery & KDU2750 mAh full-shift battery; ZKDU keyboard display unit for stand-alone printing
