Premium Desktop 2-inch WideÂ

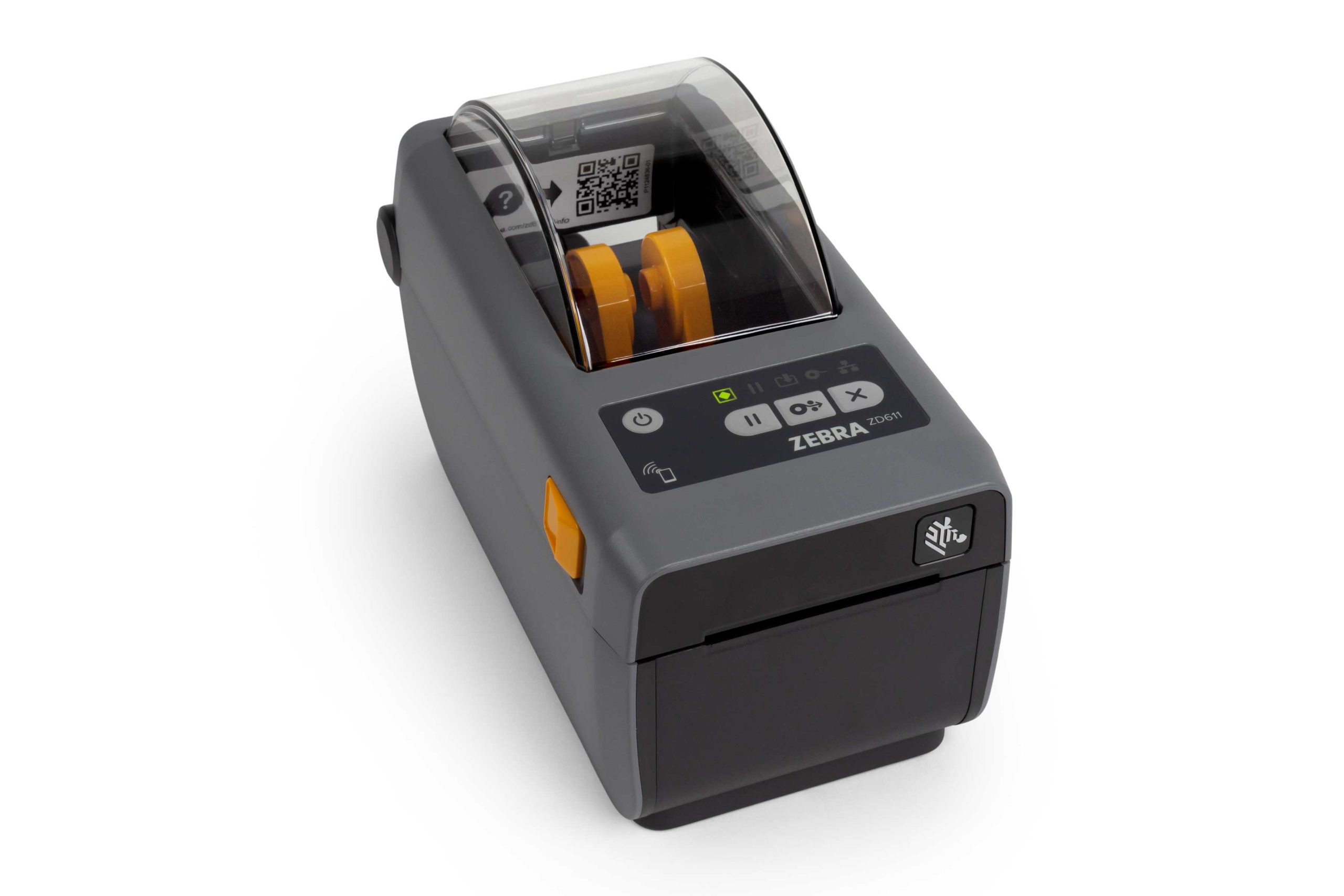

The 2-inch ZD611 delivers next-generation technology, industry-leading features and unmatched security for years of superior printing. With a new architecture for added performance, optimal field-installable media handling designs and wireless communication. Select models feature a full-color touch display, or choose linerless model to reduce waste and improve productivity.Â
In the BoxÂ
Key FeaturesÂ
| Parameter / Feature | Specification Details |
| PHYSICAL - Dimensions (ZD611 Direct Thermal) | 8.6 in. L x 4.5 in. W x 6.0 in. H (220 mm L x 115 mm W x 151 mm H) |
| PHYSICAL - Dimensions (ZD611 Thermal Transfer) | 9.56 in. L x 5.46 in. W x 6.66 in. H (242.9 mm L x 138.7 mm W x 169.2 mm H) |
| PHYSICAL - Dimensions (ZD621 Direct Thermal) | 8.7 in. L x 7.0 in. W x 5.9 in. H (221 mm L x 177 mm W x 151 mm H) |
| PHYSICAL - Dimensions (ZD621 Thermal Transfer) | 10.5 in. L x 8.0 in. W x 7.5 in. H (267 mm L x 202 mm W x 192 mm H) |
| PHYSICAL - Weight (ZD611 DT / TT) | ZD611 DT: 2.36 lb (1.07 kg) | ZD611 TT: 3.59 lb (1.629 kg) |
| PHYSICAL - Weight (ZD621 DT / TT) | ZD621 DT: 3.6 lb (1.6 kg) | ZD621 TT: 5.5 lb (2.5 kg) |
| PRINTER SPEC - Operating System | Link-OS |
| PRINTER SPEC - Resolution | 203 dpi (8 dots/mm) standard; 300 dpi (12 dots/mm) optional |
| PRINTER SPEC - Memory | 512 MB Flash; 256 MB SDRAM |
| PRINTER SPEC - Maximum Print Width (ZD611) | 203 dpi: 2.2 in. (56 mm) | 300 dpi: 2.13 in. (54 mm) |
| PRINTER SPEC - Maximum Print Width (ZD621) | 203 dpi: 4.09 in. (104 mm) | 300 dpi: 4.27 in. (108 mm) |
| PRINTER SPEC - Maximum Print Speed | 203 dpi: 8 in./sec (203 mm/sec) | 300 dpi: 6 in./sec (152 mm/sec) |
| PRINTER SPEC - Media Sensors | Full width moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| PRINTER SPEC - Programming Languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| MEDIA - Label Length | Minimum: 0.25 in. (6.35 mm) | Maximum: 39.0 in. (991 mm) |
| MEDIA - Media Width (ZD611) | 0.585 in. (15 mm) to 2.36 in. (60 mm) |
| MEDIA - Media Width (ZD621 Direct Thermal) | 0.585 in. (15 mm) to 4.25 in. (108 mm) |
| MEDIA - Media Width (ZD621 Thermal Transfer) | 0.585 in. (15 mm) to 4.65 in. (118 mm) |
| MEDIA - Media Roll Size | Max Outer Diameter: 5.00 in. (127 mm) | Core ID: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard; 1.5 in. (38.1 mm), 2.0 in. (50.8 mm), and 3.0 in. (76.2 mm) via optional adapters |
| MEDIA - Media Thickness (ZD611) | 0.024 in. (0.06 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only) |
| MEDIA - Media Thickness (ZD621) | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. (tear-off mode only) |
| MEDIA - Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands, and linerless (linerless model only) |
| RIBBON - Outside Diameter (ZD611) | 1.34 in. (34 mm) - 74 m |
| RIBBON - Outside Diameter (ZD621) | 2.6 in. (66 mm) - 300 m; 1.34 in. (34 mm) - 74 m |
| RIBBON - Standard Length (ZD611) | 243 ft. (74 m) |
| RIBBON - Standard Length (ZD621) | 984 ft. (300 m); 243 ft. (74 m) |
| RIBBON - Ribbon Ratio | 1:4 ribbon to media (300 m) | 1:1 ribbon to media (74 m) |
| RIBBON - Ribbon Width (ZD611) | 1.3 in. (33 mm) to 2.24 in. (58 mm) |
| RIBBON - Ribbon Width (ZD621) | 1.33 in. (33.8 mm) to 4.3 in. (109.2 mm) |
| RIBBON - Ribbon Core I.D. | 1 in. (25.4 mm) for 300 m; 0.5 in. (12.7 mm) for 74 m |
| OPERATING - Operating Temperature | 40° to 105° F (4.4° to 41° C) |
| OPERATING - Storage Temperature | -40° to 140° F (-40° to 60° C) |
| OPERATING - Operating Humidity | 10% to 90% non-condensing |
| OPERATING - Storage Humidity | 5% to 95% non-condensing |
| OPERATING - Electrical & Power | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply |
