Reliable operation, quality construction, unsurpassed valueNot all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle.Â

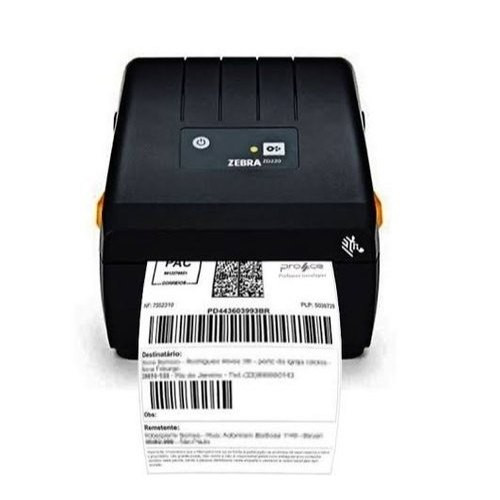

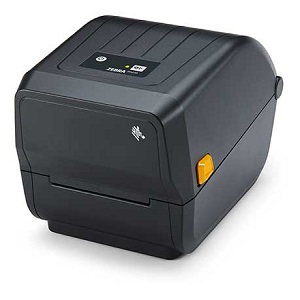

Zebra does it differently. The ZD220 desktop printer gives you reliable operation and basic features at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction for added durability. And, it is ENERGY STARâ„¢ qualified to reduce your operational expenses. Built to last for years, the ZD220 provides an outstanding return on your investment.Â
Power Cord bundle (EU, UK), USBÂ
APAC Power Cord bundle (EU, UK), USBÂ
SpecificationsÂ
| Fitur | Spesifikasi |
| Zebra ZD200 Series | |
| PHYSICAL | |
| Dimensions - Thermal Transfer | 10.5 in. L x 7.75 in. W x 7.5 in. H; 267 mm L x 197 mm W x 191 mm H |
| Dimensions - Direct Thermal | 8.6 in. L x 6.9 in. W x 5.9 in. H; 220 mm L x 176 mm W x 151 mm H |
| Weight - Thermal Transfer | 3.7 lbs. / 1.7 kg |
| Weight - Direct Thermal | 2.5 lbs. / 1.1 kg |
| PRINTER SPECIFICATIONS | |
| Resolution | 203 dpi / 8 dots per mm |
| Memory | 128 MB Flash; 128 MB SDRAM |
| Maximum Print Width | 4.09 in. / 104 mm |
| Print Speed | 4 in. / 102 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left side; fixed off-center gap sensor |
| Firmware | ZPL II; EPL 2; XM |
| MEDIA AND RIBBON CHARACTERISTICS | |
| Maximum Label Length | 39.0 in. / 991 mm |
| Media Width | 1.00 in. / 25.4 mm to 4.4 in. / 112 mm |
| Media Roll Size | 5.00 in. / 127 mm outer diameter; core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard; 1.5 in. (38.1 mm) using optional adapters |
| Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. in tear-off mode only |
| Media Types | Roll-fed or fan-fold; die cut or continuous with or without black mark; tag stock; continuous receipt paper; wristbands |
| Ribbon Outside Diameter | 1.34 in. / 34 mm (74 m) |
| Maximum Ribbon Length | 244 ft. / 74 m |
| Ribbon Ratio | 1:1 ribbon to media (74 m) |
| Ribbon Width | 1.33 in. / 33.8 mm to 4.3 in. / 109.2 mm |
| Ribbon Core I.D. | 74 meter ribbon: 0.5 in. / 12.7 mm |
| OPERATING CHARACTERISTICS | |
| Operating Temperature | 40° to 105° F / 4.4° to 41° C |
| Storage Temperature | -40° to 140° F / -40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable, PFC compliant 100–240 VAC, 50–60 Hz; ENERGY STAR qualified |
| OPTIONS AND ACCESSORIES | |
| Media Handling | Factory-installed peeler |
| Real Time Clock | None |
| FONTS / GRAPHICS / SYMBOLOGIES | |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11; Code 39; Code 93; Code 128; ISBT-128; UPC-A; UPC-E; EAN-8; EAN-13; UPC and EAN 2- or 5-digit extensions; Plessey; Postnet; Standard 2-of-5; Industrial 2-of-5; Interleaved 2-of-5; Logmars; MSI; Codabar; Planet Code |
| 2D Bar Codes | Codablock; PDF417; Code 49; DataMatrix; MaxiCode; QR Code; MicroPDF; Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts; two resident scalable ZPL fonts; five resident expandable EPL2 fonts; native OpenType font support; Unicode compliant for multilingual on-demand thermal printing; 50 MB user-available non-volatile memory; 8 MB user-available SDRAM |
| PRINTER SUPPLIES | |
| Printer Supplies | Zebra Certified Supplies are recommended for consistent, optimized printer performance. |
| REGULATORY | |
| Regulatory Compliance | IEC 60950-1; EN55022 Class B; EN55024; EN61000-3-2; EN61000-3-3; FCC Class B; ICES-003; FCC 15.209; 15.247(d); IC RSS 247; EN 300 328; EN 301 893; EN 62311; cTUVus; CE Marking; VCCI; C-Tick; S-Mark; CCC; CU; BSMI; KCC; SABS; IN-Metro; BIS; NOM |
| RECOMMENDED SERVICES | |
| Zebra OneCare Essential | Comprehensive coverage including printheads, normal wear and accidental breakage; priority 8x5 live technical support and software updates; three-day depot repair turnaround plus free return ground shipping; online RMA support. Service availability may vary by region. |
| OPERATING SYSTEM | |
| Operating System | Link-OSâ„¢ Basic printer operating system |
| PRINT DNA SOFTWARE | |
| Print DNA Software | Supported by a core set of Print DNA Basic applications and capabilities |
| Zebra Setup Utilities | Enables quick and easy printer configuration |
| ZebraDesigner Essentials | Supports designing and printing industry-standard, compliant labels with fixed or variable data |
| Emulations | On-printer apps allow Zebra printers to use legacy languages typically associated with other printer brands |
| PRODUCT WARRANTY | |
| Product Warranty | ZD200 Series printers are warranted against defects in workmanship and materials for a minimum period of 2 years from the date of shipment. Warranty varies by region. |
