| Fitur | Spesifikasi |

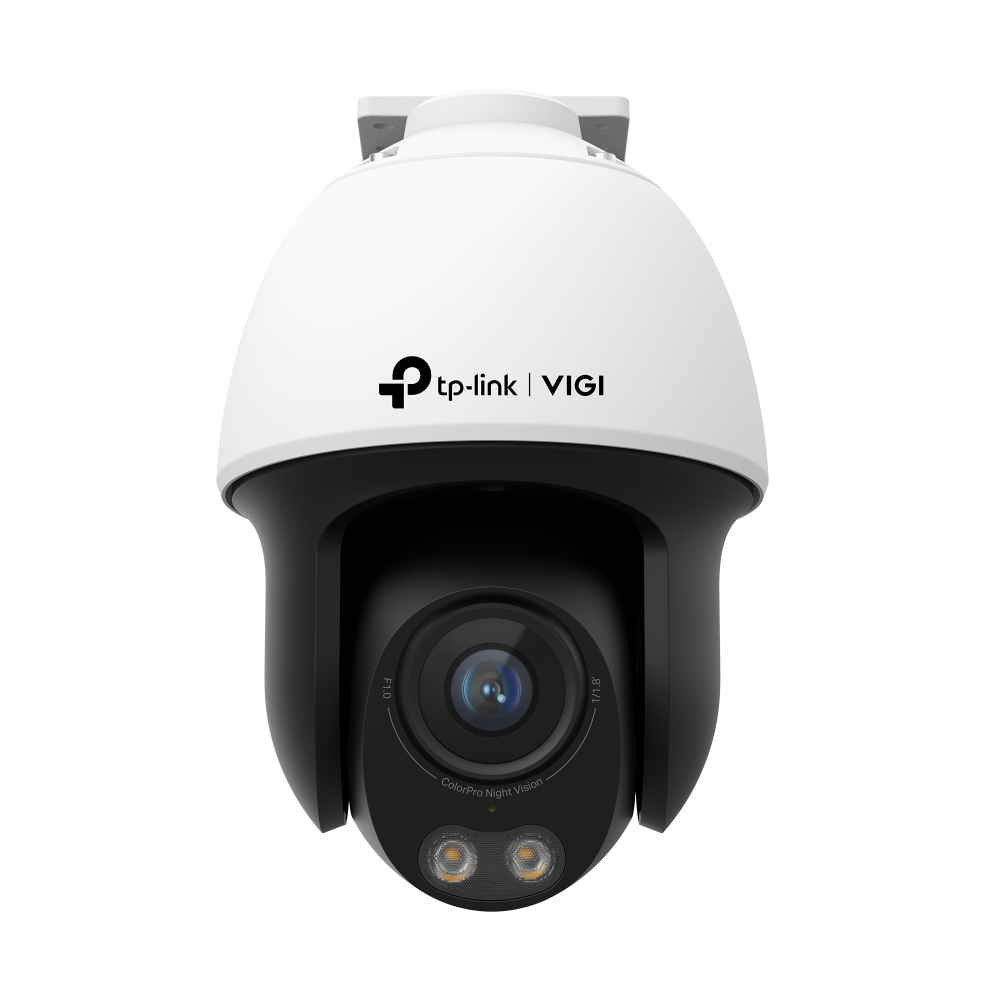

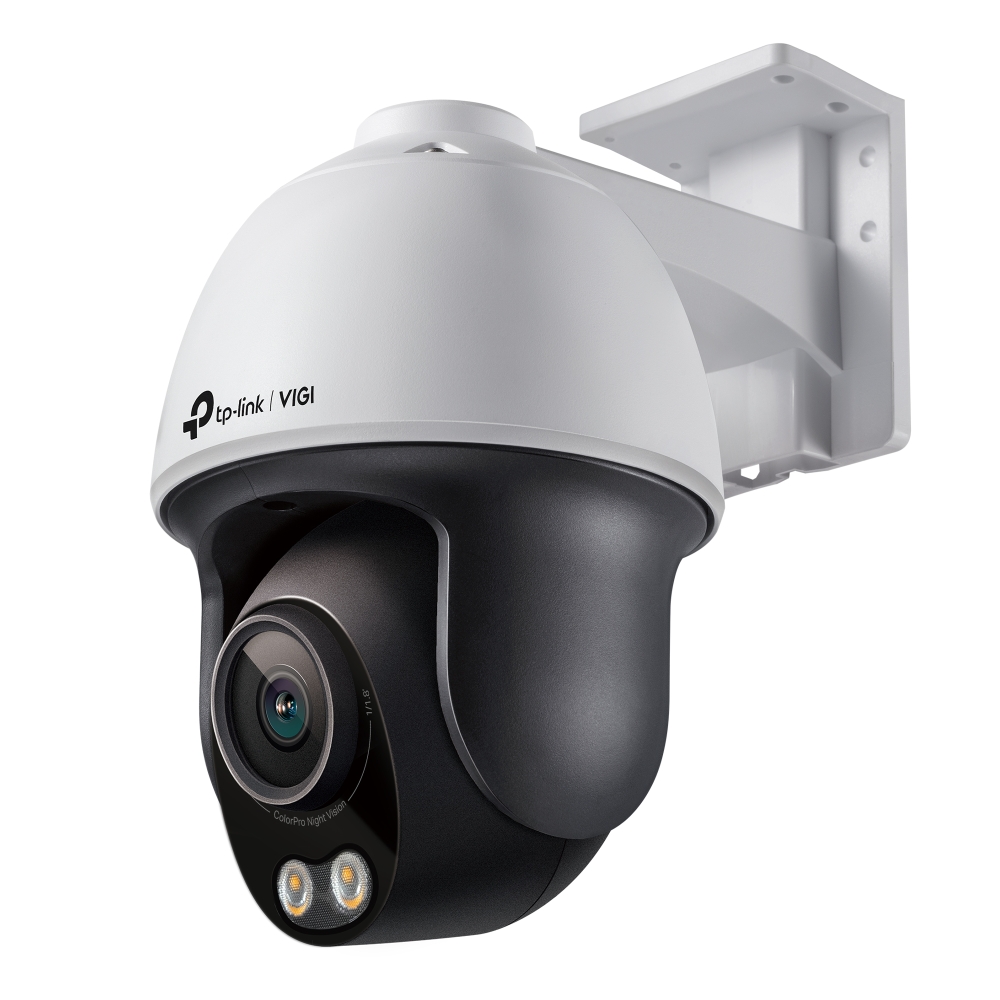

| VIGI C540S | |
| CAMERA | |
| Image Sensor | 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with White Light |
| Day/Night Mechanism | N/A |
| Day/Night Switch | Unified/Scheduled/Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.0±5% |
| FOV | 4mm: Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127° |
| Lens Mount | M16*P 0.5 |
| DORI Distance | 4 mm: Detect: 63 m (207 ft); Observe: 26 m (86 ft); Recognize: 13 m (41 ft); Identify: 6 m (21 ft) |
| PTZ | |
| Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 105° |
| Pan/tilt Speed | Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s; Tilt Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PTZ and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| Angle Adjustment (Manual) Range | Pan: 0° to 348°; Tilt: 0° to 105° |
| ILLUMINATOR | |
| IR LED | N/A |
| White LED | Quantity: 2; Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 704x576, 640x480, 352x288, 320x240 |
| Third Stream | Frame Rate: 15fps; Resolution: 1280x720 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Mainstream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Mainstream Supported |
| H.265 Type | Main Profile |
| H.265+ | Mainstream Supported |
| Video Bit Rate | Mainstream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
| Image Settings | Mirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC |
| Wide Dynamic Range | 120dB; Note: When Face Recognition is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Human & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; People Detection; Vehicle Detection; Region Entering Detection; Region Exiting Detection; Abandoned Object Detection; Object Removal Detection; Loitering Detection; Scene Change Detection; Smart Frame |
| Basic Event | Motion Detection; Video Tampering Detection; Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning; White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Deep Learning Function | People & Vehicle Analytics; Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |

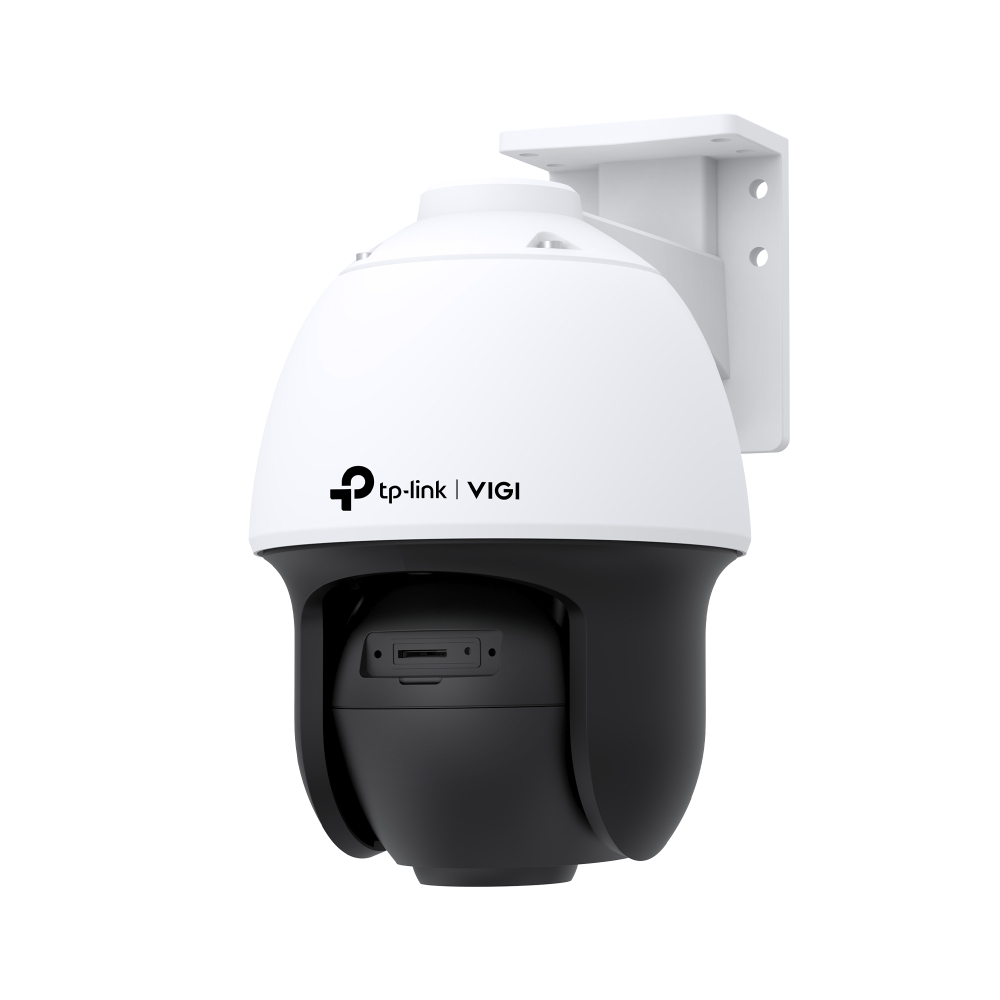

| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | VIGI Network Camera; Quick Start Guide; Waterproof Cable Attachments; Mounting Accessories |
| Material | Plastic |
| Power Supply | 12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug; PoE: 802.3at, class 4, Max. 16.47 W |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 172 × 203 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
