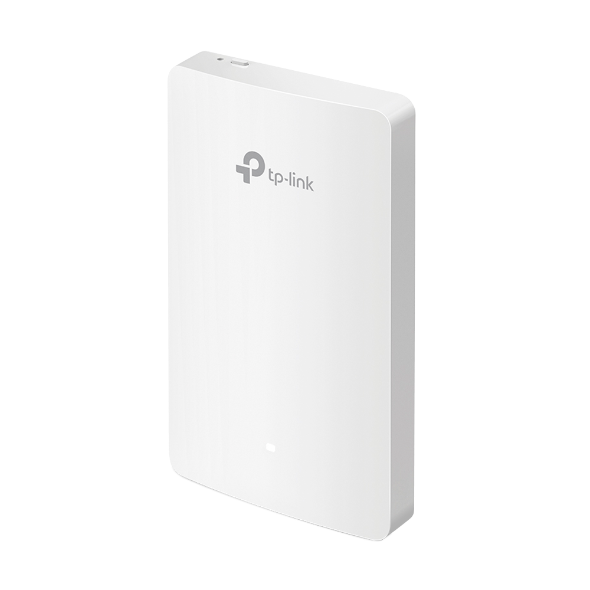

TP-LINK OMADA EAP235-Wall

Kategori :

Wall Mount AP
Tanyakan mengenai produk ini

Deskripsi

Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

  • Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
  • Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment
  • Interface: 4 Gigabit Ethernet ports (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
  • High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
  • Cloud management and Omada app supported for ultra-convenience and easy management
  • Enterprise class Wi-Fi security helps to decrease network security threats
  • Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
CategoryFeatureSpecification
Hardware FeaturesInterface Uplink10/100/1000 Mbps Ethernet Port x1
Hardware FeaturesInterface Downlink10/100/1000 Mbps Ethernet Port x3
Hardware FeaturesPoE OUT PortOne downlink port supports PoE OUT; requires 802.3at PoE+ input; maximum output 13W
Hardware FeaturesPhysical Security LockYes
Hardware FeaturesButtonReset
Hardware FeaturesPower Supply802.3af/802.3at PoE
Hardware FeaturesPoE OutPoE Passthrough (Pins 1,2+; 3,6-)
Hardware FeaturesPoE Out RequirementRequires 802.3at PoE input; maximum output 13W
Hardware FeaturesMax. Power Consumption9.8 watts / 24.4 watts (PoE Out Included)
Hardware FeaturesDimensions (W x D x H)143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Hardware FeaturesAntenna2 Dual-Band Antennas
Hardware FeaturesAntenna Gain 2.4GHz2 × 4dBi
Hardware FeaturesAntenna Gain 5GHz2 × 4dBi
Hardware FeaturesMountingWall Plate Mounting
Wireless FeaturesCoverage25㎡ (300 ft²)
Wireless FeaturesConcurrent Clients200+
Wireless FeaturesWireless StandardsIEEE 802.11a/b/g/n/ac
Wireless FeaturesFrequency2.4GHz and 5GHz
Wireless FeaturesSignal Rate 5GHzUp to 867Mbps
Wireless FeaturesSignal Rate 2.4GHzUp to 300Mbps
Wireless FeaturesSSIDs16 SSIDs (Up to 8 SSIDs on each band)
Wireless FeaturesWireless FunctionEnable/Disable Wireless Radio
Wireless FeaturesWireless FunctionAutomatic Channel Assignment
Wireless FeaturesWireless FunctionTransmit Power Control (Adjust Transmit Power on dBm)
Wireless FeaturesWireless FunctionQoS (WMM)
Wireless FeaturesWireless FunctionMU-MIMO
Wireless FeaturesWireless FunctionBand Steering
Wireless FeaturesWireless FunctionBeamforming
Wireless FeaturesWireless FunctionLoad Balance
Wireless FeaturesWireless FunctionRate Limit
Wireless FeaturesWireless FunctionReboot Schedule
Wireless FeaturesWireless FunctionWireless Schedule
Wireless FeaturesWireless FunctionWireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal AuthenticationYes
Wireless SecurityAccess ControlYes
Wireless SecurityWireless Mac Address FilteringYes
Wireless SecurityWireless Isolation Between ClientsYes
Wireless SecuritySSID to VLAN MappingYes
Wireless SecurityLocal LAN port based VLANYes
Wireless SecurityRogue AP DetectionYes
Wireless Security802.1X SupportYes
Wireless SecurityEncryption64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission PowerCE 2.4GHz≤20 dBm (2.4 GHz, EIRP)
Transmission PowerCE 5GHz≤23 dBm (5 GHz, EIRP)
Transmission PowerFCC 2.4GHz≤21 dBm (2.4 GHz)
Transmission PowerFCC 5GHz≤21 dBm (5 GHz)
Management FeaturesOmada AppYes
Management FeaturesOmada Cloud ControllerYes
Management FeaturesCentralized ManagementOmada Cloud-Based Controller
Management FeaturesCentralized ManagementOmada Hardware Controller (OC300)
Management FeaturesCentralized ManagementOmada Hardware Controller (OC200)
Management FeaturesCentralized ManagementOmada Software Controller
Management FeaturesOmada Controller SoftwareYes
Management FeaturesCloud AccessYes; requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Management FeaturesEmail AlertsYes
Management FeaturesLED ON/OFF ControlYes
Management FeaturesManagement MAC Access ControlYes
Management FeaturesSNMPv1, v2c
Management FeaturesSystem LoggingLocal/Remote Syslog
Management FeaturesSSHYes
Management FeaturesWeb-based ManagementHTTP/HTTPS
Management FeaturesL3 ManagementYes
Management FeaturesMulti-site ManagementYes
Management FeaturesManagement VLANYes
Management FeaturesZero-Touch ProvisioningYes; requires Omada Cloud-Based Controller
OthersCertificationCE, FCC, RoHS
OthersPackage ContentOmada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
OthersPackage ContentInstallation Guide
OthersPackage ContentMounting Screw
OthersSystem RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
EnvironmentOperating Temperature0℃~40℃ (32℉~104℉)
EnvironmentStorage Temperature-40℃~70℃ (-40℉~158℉)
EnvironmentOperating Humidity10%~90% non-condensing
EnvironmentStorage Humidity5%~90% non-condensing
