TL-SX3206HPP

Kategori :

Managed PoE Switch
Tanyakan mengenai produk ini

Deskripsi

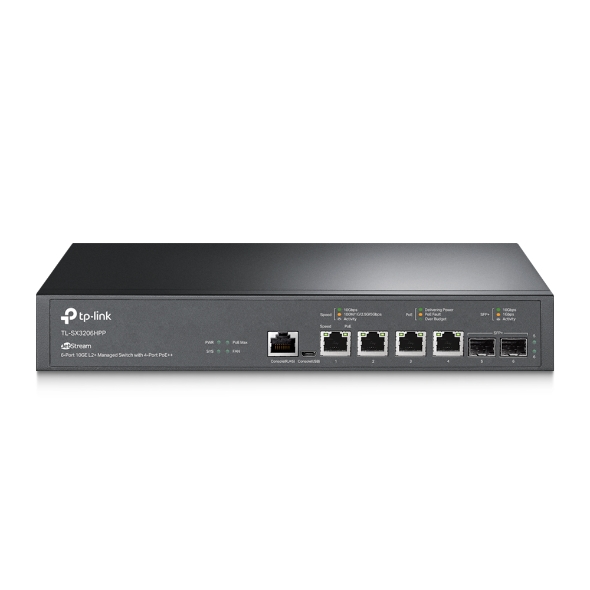

JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

  • Full 10G Lightning-Fast Connection: Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots.
  • PoE++ Output with 200 W Power Budget†: Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs.‡
  • Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
FeatureSpecification
Interface4× 100/1000/2500/5000/10000 Mbps RJ45 Ports; 2× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity2

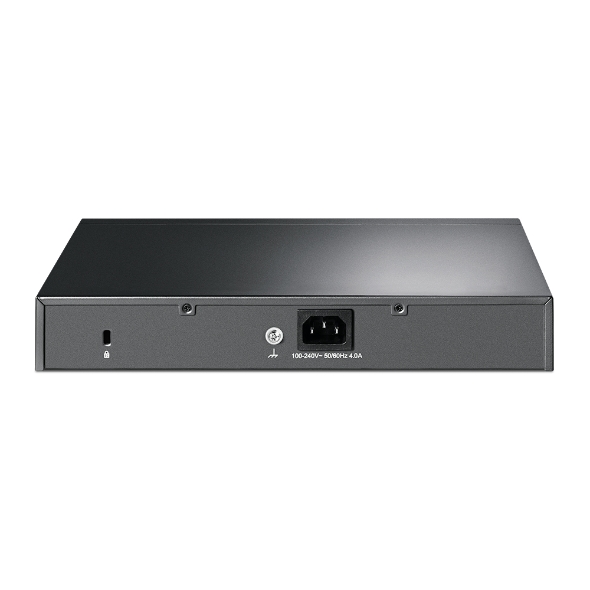

Power Supply100-240 V AC~50/60 Hz
PoE Ports (RJ45)Standard: 802.3bt/at/af compliant; PoE+ Ports: 4 Ports, up to 60 W per port; Power Budget: 200 W
Dimensions (W x D x H)11.6 × 7.1 × 1.7 in (294× 180 × 44 mm)
MountingRack Mountable; Desktop
Max Power Consumption27.29 W (110V/60Hz) (no PD connected); 244.90 W (110V/60Hz) (with 200 W PD connected)
Max Heat Dissipation93.12 BTU/h (110 V/60 Hz) (no PD connected); 835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)
Switching Capacity120 Gbps
Packet Forwarding Rate89.28 Mpps
MAC Address Table32 K
Jumbo Frame9 KB
Omada AppYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized ManagementOmada Cloud-Based Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Software Controller
Cloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3; Trap/Inform; RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log
CertificationCE, FCC, RoHS
Package ContentsTL-SX3206HPP Switch; Power Cord; Quick Installation Guide; Rackmount Kit; Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0–50 ℃ (32–122 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
