Download PDF Version
TL-SX3016F

Kategori :

Managed Switch
Tanyakan mengenai produk ini

Deskripsi

16-Port 10GE SFPplus L2plus Mnged Switch

Description :

  • 16× Full 10GE SFP+ Slots: Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity. Learn More about TP-Link 10G/Multi-Gigabit Switching Solutions
  • Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more.
  • Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.

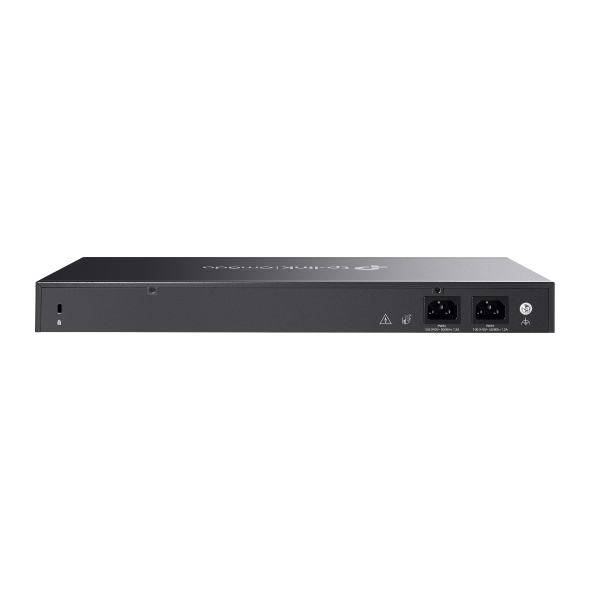

  • Dual Redundant Power Supplies: Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
FiturSpesifikasi
HARDWARE FEATURES
Interface16× 10GE SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity1
Power Supply100-240 V AC~50/60 Hz
Dimensions (W x D x H)17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
MountingRack Mountable
Max Power Consumption32.74 W (220 V / 50 Hz)
Max Heat Dissipation111.71 BTU/hr (220 V / 50 Hz)
PERFORMANCE
Switching Capacity320 Gbps
Packet Forwarding Rate238.08 Mpps
MAC Address Table32 K
Packet Buffer Memory24 Mbit
Jumbo Frame9 KB
MANAGEMENT
Omada AppYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized ManagementOmada Cloud-Based Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Software Controller
Cloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log
OTHERS
CertificationCE, FCC, RoHS
Package ContentsTL-SX3016F Switch; 2× Power Cords; Quick Installation Guide; Rackmount Kit; Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0–45 ℃ (32–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
Tanyakan mengenai produk ini
