TL-SL1218P

Kategori :

Enterprise Networking
Tanyakan mengenai produk ini

Deskripsi

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

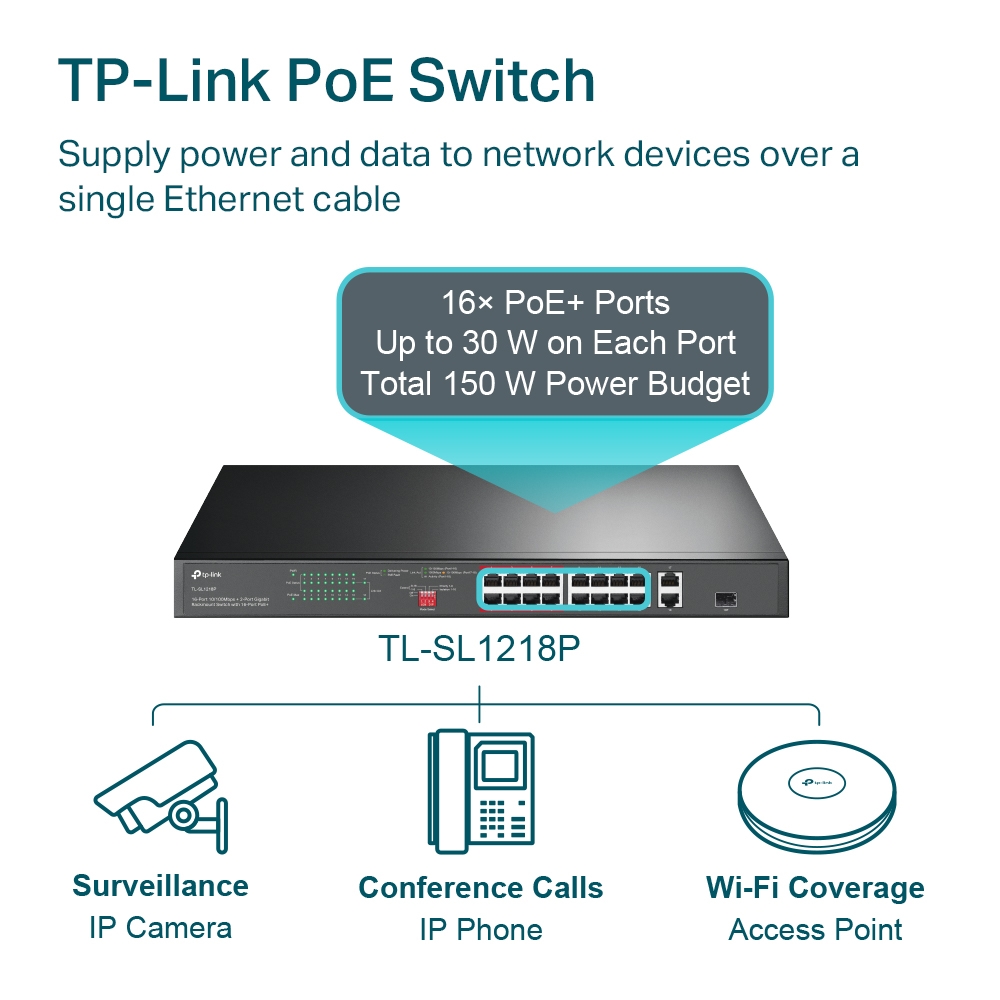

  • 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
  • High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*

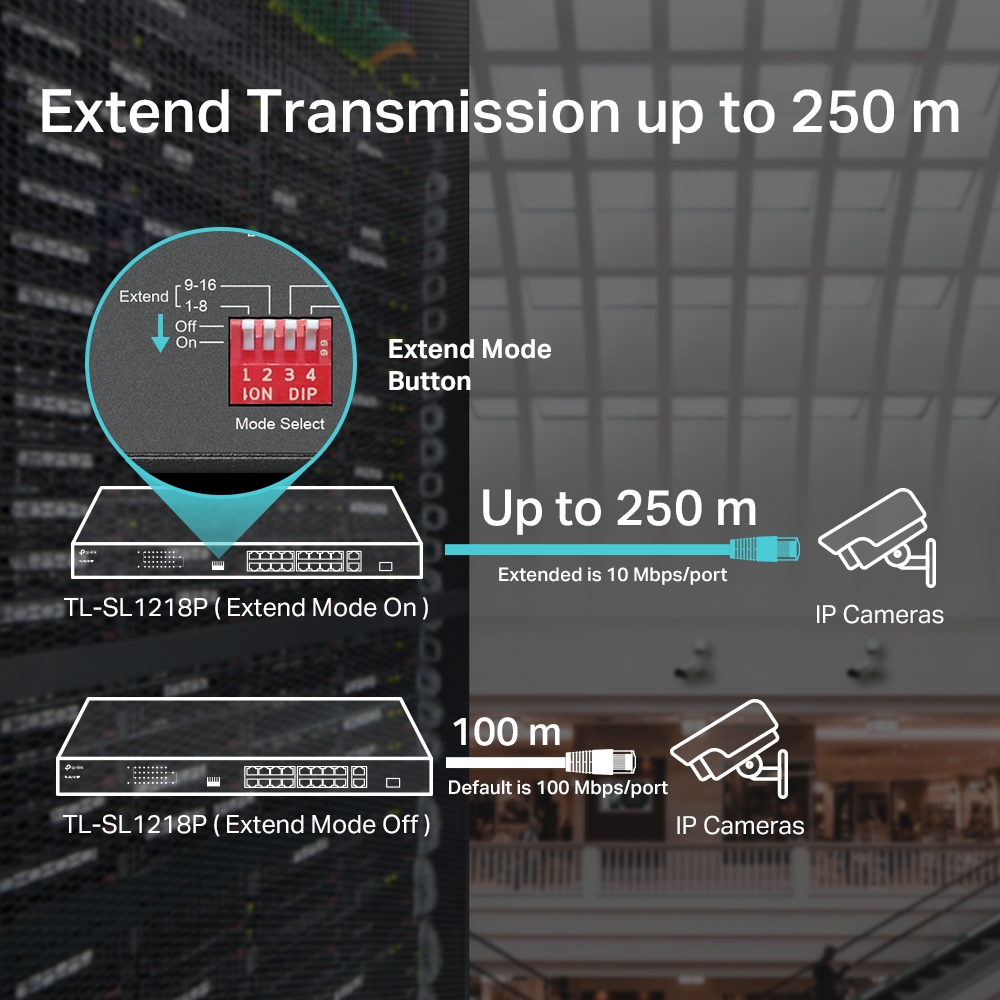

  • Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**

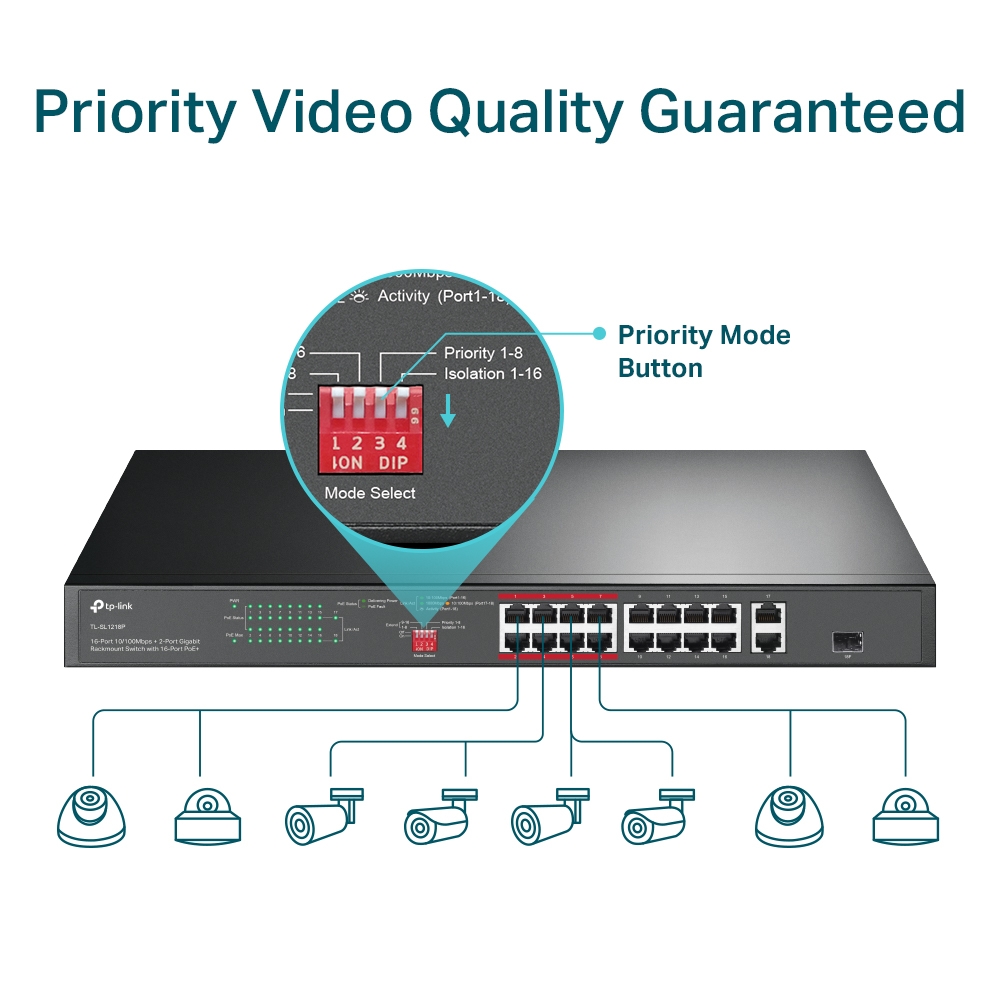

  • Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
  • Isolation Mode allows one-click client traffic separation for higher security and performance.

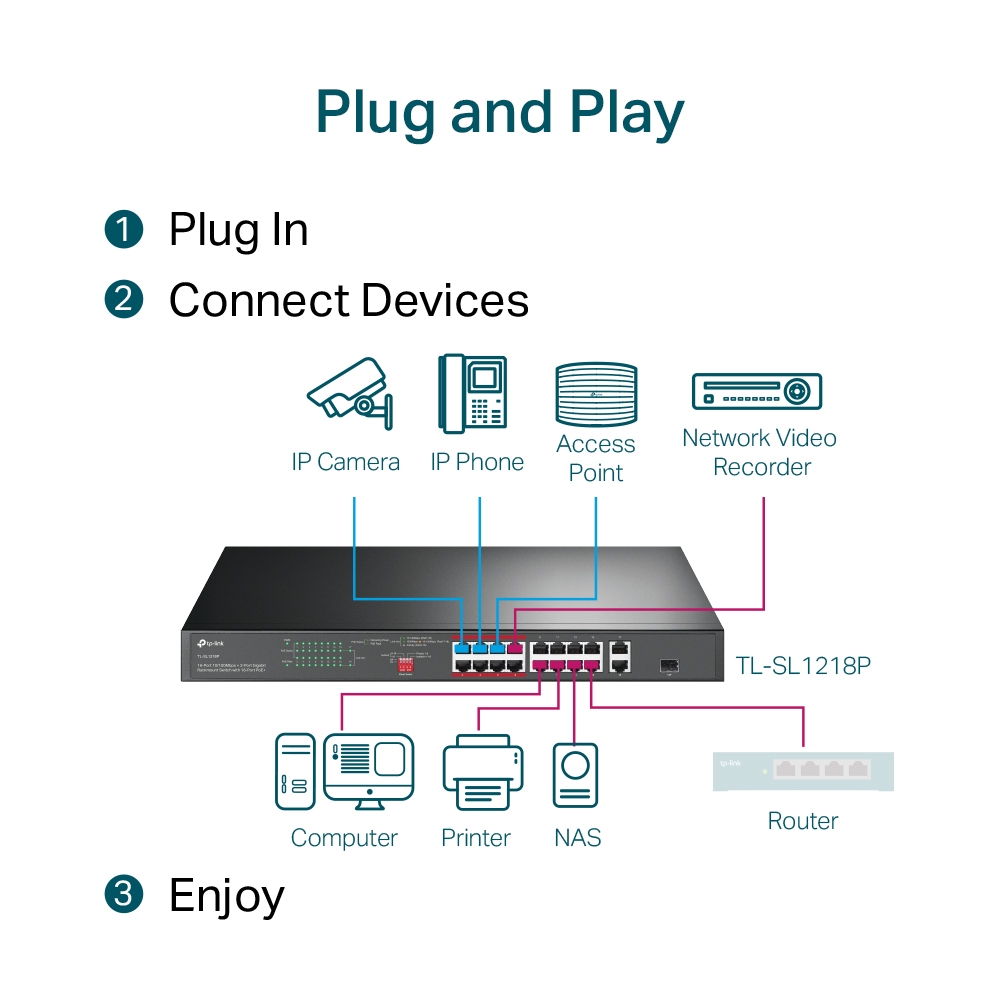

  • Easy to use, with no configuration and installation needed.
Parameter / FeatureSpecification Details
HARDWARE - Ports & Interface16× PoE+ 10/100 Mbps RJ45 Ports | 2× 10/100/1000 Mbps RJ45 Ports | 1× Combo Gigabit SFP Slot
HARDWARE - Network Media10BASE-T: UTP Cat 3, 4, 5 / 100Ω STP (max 100m) | 100BASE-TX: UTP Cat 5, 5e / 100Ω STP (max 100m) | 1000BASE-T: UTP Cat 5, 5e, 6+ / 100Ω STP (max 100m) | 1000BASE-X MMF, SMF
HARDWARE - Fan Quantity & Physical SecurityFan Quantity: 2 Fans | Physical Security Lock: Yes
HARDWARE - Power Supply SpecsInternal Power Supply: 100–240V AC, 50/60 Hz
HARDWARE - PoE SpecificationsStandard: 802.3at/802.3af compliant | PoE Ports: Ports 1–16 | Total PoE Power Budget: 150 W
HARDWARE - Dimensions & Mounting17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) | Rack Mountable (Two mounting brackets included)
HARDWARE - Max Power Consumption12.7 W (no power device connected) | 172.8 W (with 150W power devices connected)
HARDWARE - Max Heat Dissipation43.3 BTU/h (no power device connected) | 589.3 BTU/h (with 150W power devices connected)
PERFORMANCE - Switching Capacity & Forwarding RateSwitching Capacity: 7.2 Gbps | Packet Forwarding Rate: 5.36 Mpps
PERFORMANCE - Memory & TableMAC Address Table: 8K | Jumbo Frame: 10 KB
SOFTWARE - Transmission MethodStore-And-Forward
SOFTWARE - Advanced FeaturesCompatible with IEEE 802.3at/af PDs | Extend Mode (Up to 250m PoE power supply & data transmission) | Priority Mode | Isolation Mode | MAC Address Auto-Learning & Auto-Aging | IEEE 802.3x Flow Control
OTHERS - CertificationsCE, FCC, RoHS
OTHERS - Package ContentsTL-SL1218P | Power Cable | Installation Guide | Two Mounting Brackets
OTHERS - Environmental ConditionsOperating Temp: 0–50 °C (32–122 °F) | Storage Temp: -40–70 °C (-40–158 °F) | Operating Humidity: 10–90% RH non-condensing | Storage Humidity: 5–90% RH non-condensing
