24-Port Gigabit Easy Smart SwitchÂ
| Parameter / Feature | Specification Details |
| HARDWARE - Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| HARDWARE - Ports & Interface | 24× 10/100/1000Mbps RJ45 Ports | Auto Negotiation / AUTO MDI/MDIX |
| HARDWARE - Network Media | 10BASE-T: UTP Cat 3, 4, 5 / 100Ω STP (max 100m) | 100BASE-TX: UTP Cat 5, 5e / 100Ω STP (max 100m) | 1000BASE-T: UTP Cat 5, 5e, 6+ / 100Ω STP (max 100m) |
| HARDWARE - Fan Quantity & Physical Security | Fanless | Physical Security Lock: No |
| HARDWARE - Power Supply Specs | Internal Power Supply: 100-240VAC, 50/60Hz |
| HARDWARE - Dimensions & Mounting | 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm) | Rack Mountable |
| HARDWARE - Max Power Consumption & Heat Dissipation | Max Power Consumption: 15.56W (220V/50Hz) | Max Heat Dissipation: 50.06 BTU/h |
| PERFORMANCE - Switching Capacity & Forwarding Rate | Switching Capacity: 48Gbps | Packet Forwarding Rate: 35.7Mpps |
| PERFORMANCE - Memory & Table | MAC Address Table: 8K | Packet Buffer Memory: 4.1Mbit | Jumbo Frame: 10KB |
| SOFTWARE - Transmission Method | Store-And-Forward |
| SOFTWARE - Quality of Service (QoS) | Port-based / 802.1p / DSCP Priority | 4 Priority Queues | Rate Limit | Storm Control |
| SOFTWARE - L2 Features | IGMP Snooping V1/V2/V3 | Static Link Aggregation | Port Mirroring | Cable Diagnostics | Loop Prevention |
| SOFTWARE - VLAN Support | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) | MTU / Port / Tag VLAN |
| OTHERS - Certifications & System Requirements | Certifications: FCC, CE, RoHS | System Requirements: Microsoft® Windows® (for running Utility) |

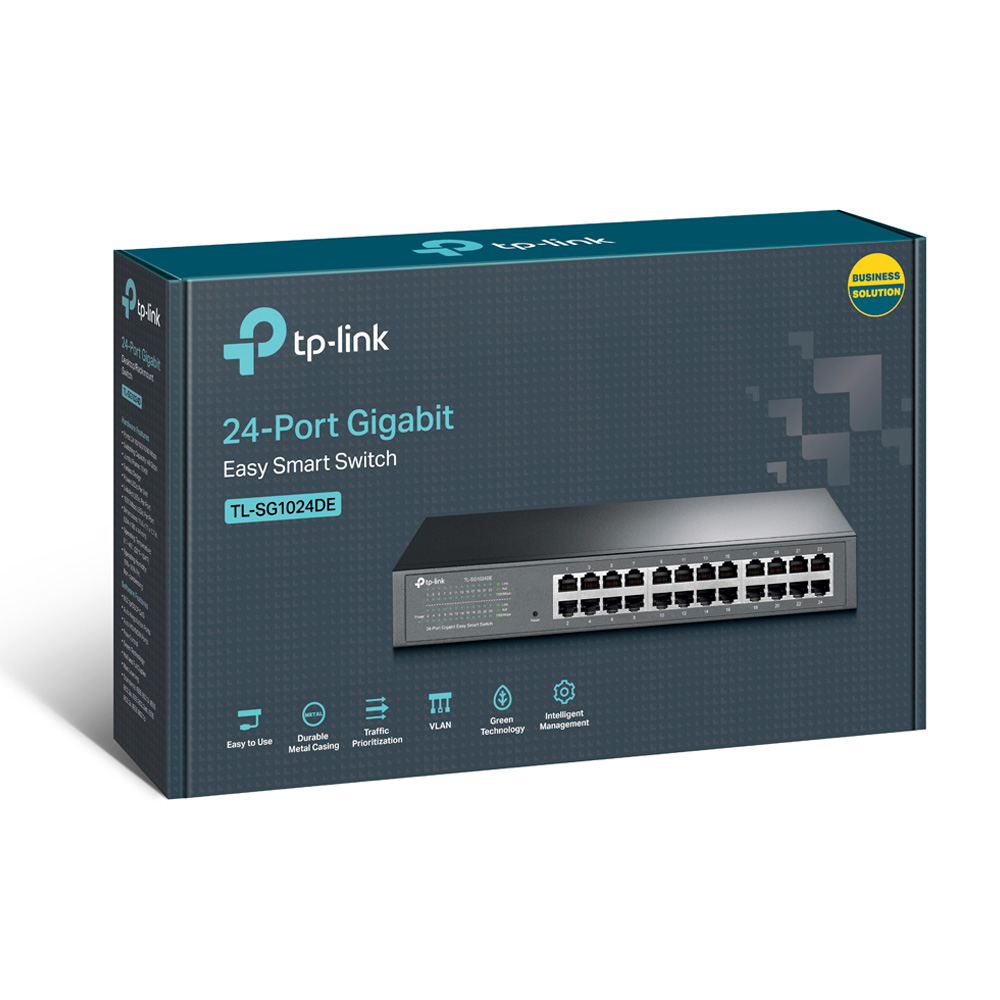

| OTHERS - Package Contents | TL-SG1024DE | Power Cord | Installation Guide | Resource CD | Rackmount Kit | Rubber Feet |
| OTHERS - Environmental Conditions | Operating Temp: 0℃~40℃ (32℉~104℉) | Storage Temp: -40℃~70℃ (-40℉~158℉) | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing |
