TL-SF1008P

Kategori :

Deskripsi

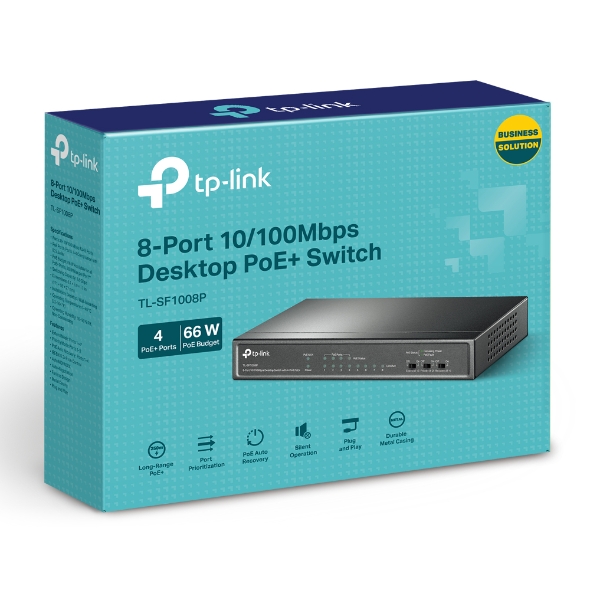

8-Port 10/100Mbps Desktop Switch with 4-Port PoE+

  • 8× 10/100 Mbps RJ45 ports
  • 4× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 66 W for all PoE ports*
  • Up to 250m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Fanless Design reduces power consumption and works silently in its location
  • Plug and play with no configuration required
Parameter / FeatureSpecification Details
HARDWARE - Ports & Interface8× 10/100 Mbps RJ45 Ports (4× 802.3af/at PoE+ Ports) | Auto Negotiation | Auto MDI/MDIX
HARDWARE - Network Media10BASE-T: UTP Cat 3, 4, 5 / 100Ω STP (max 100m) | 100BASE-TX: UTP Cat 5, 5e / 100Ω STP (max 100m)
HARDWARE - Fan Quantity & SecurityFanless | Physical Security Lock: Yes
HARDWARE - External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 1.31 A)
HARDWARE - PoE SpecificationsStandard: 802.3af/at compliant | PoE Ports: Ports 1–4 | Total Power Budget: 66 W
HARDWARE - Dimensions (W x D x H)6.7 × 3.9 × 1.1 in. (171 × 98 × 27 mm)
HARDWARE - Max Power Consumption2.27 W (220V/50 Hz, no PD connected) | 75.33 W (220V/50 Hz, with 66 W PD connected)
HARDWARE - Max Heat Dissipation7.74 BTU/h (no PD connected) | 256.88 BTU/h (with 66 W PD connected)
PERFORMANCE - Switching Capacity1.6 Gbps
PERFORMANCE - Packet Forwarding Rate1.1904 Mpps
PERFORMANCE - MAC Address Table & Jumbo FrameMAC Table: 2K | Jumbo Frame: 2 KB
SOFTWARE - Transmission MethodStore-And-Forward
SOFTWARE - Advanced FeaturesExtend Mode Button (Ports 1–4) | Priority Mode Button (Ports 1–2) | PoE Auto Recovery Button (Ports 1–4) | MAC Address Auto-Learning & Auto-Aging
OTHERS - CertificationsFCC, CE, RoHS
OTHERS - Package ContentsTL-SF1008P | Power Adapter | Installation Guide | Rubber Feet
OTHERS - Environmental ConditionsOperating Temp: 0–40 ℃ (32–104 ℉) | Storage Temp: -40–70 ℃ (-40–158 ℉) | Operating Humidity: 10–90% RH non-condensing | Storage Humidity: 5–90% RH non-condensing
