Mobile ComputerÂ

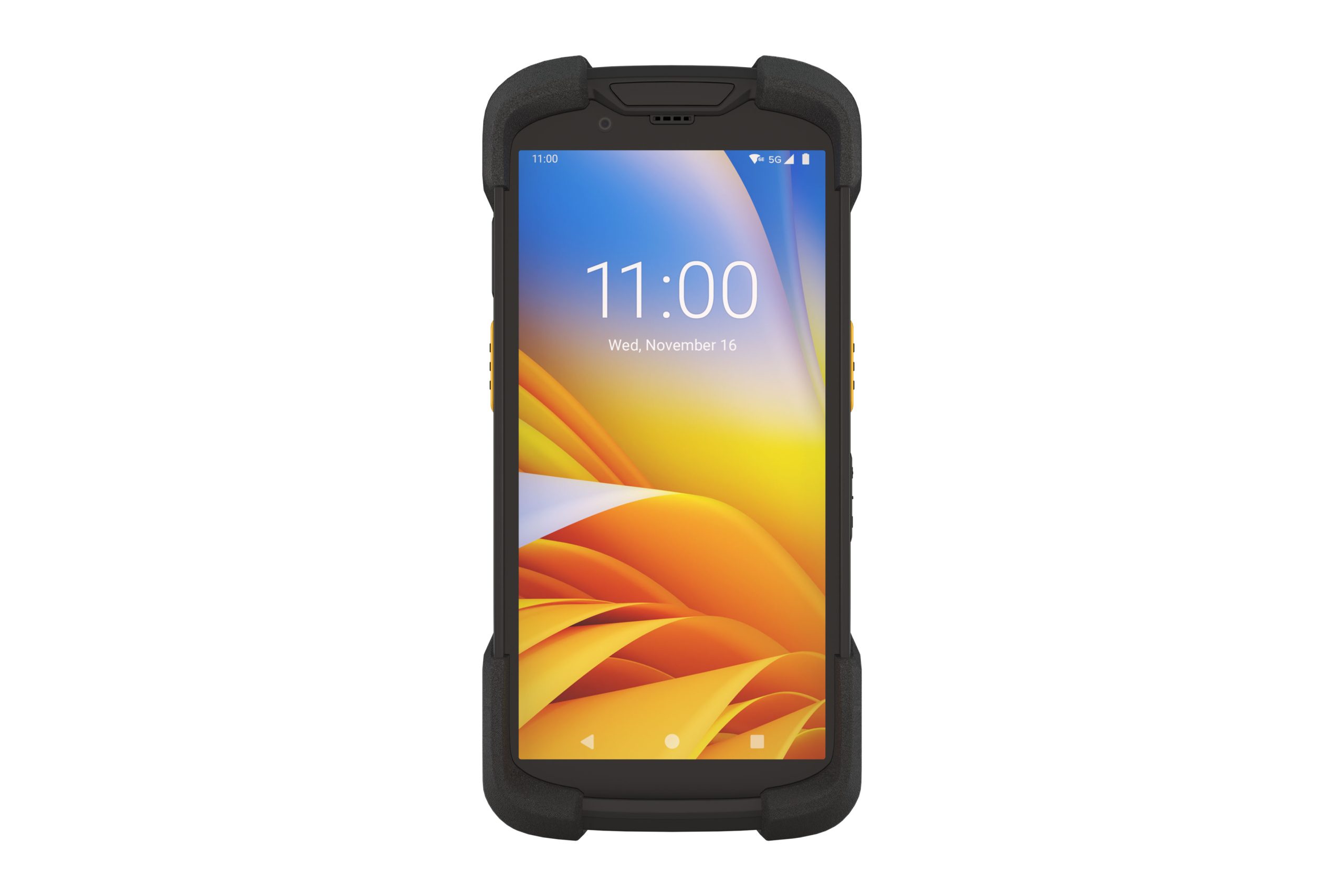

Designed for workers who spend their days inside your facility, the TC73 offers everything you need to support the new generation of mobile solutions—Wi-Fi 6E for fast and dependable wireless connections;a bright, easy-to-see 6-inch Full HD display;more power, memory and storage to support demanding apps;and an extended range scanner that can capture barcodes in hand and as far away as 40 ft./12.2 m away. And while it’s more rugged, it’s nearly 20% thinner, lighter and more ergonomic.Â
In the BoxÂ
Key FeaturesÂ
Android, for supported versions visit: www.zebra.com/android-versionsÂ
Commonly Used ForÂ
| Parameter / Feature | Specification Details |
| PHYSICAL - Dimensions | 6.96 in. L x 3.38 in. W x 1.12 in. H (176.8 mm L x 85.8 mm W x 28.4 mm H); Grip area: 3.179 in. W x 0.80 in. H (80.75 mm W x 20.3 mm H) |
| PHYSICAL - Weight | 12.3 oz. / 349 g with standard battery |
| PHYSICAL - Display | 6.0 in. Full HD+ (1080 x 2160); LED backlight; optically bonded |
| PHYSICAL - Imager Window & Touch Panel | Corning Gorilla Glass; Multi-mode capacitive touch (gloved/stylus); water droplet rejection; anti-smudge coating |
| PHYSICAL - Power & Battery Modes | Standard: 4680 mAh (18.01 Wh) | Extended: 7000 mAh (26.95 Wh) | BLE & Wireless Charge options | Warm Swap (standard) / Hot Swap (premium) |
| PHYSICAL - Expansion Slot & SIM | MicroSD up to 2 TB | TC78 only: 1 Nano SIM, 1 eSIM |
| PHYSICAL - Network Connections | TC73: WLAN, WPAN (Bluetooth) | TC78: WWAN 5G |
| PHYSICAL - Voice & Audio | Built-in mics with noise suppression & stereo record; dual speakers; HD voice, VoLTE EVS, VoIP SWB; Zebra USB-C PTT headset support |
| PHYSICAL - Buttons & Interface Ports | Programmable dual scan buttons, PTT, volume, trigger button via Back I/O | USB 2.0 (Back I/O - Host Only), USB 3.0 Type-C SuperSpeed |
| PERFORMANCE - CPU & OS | Qualcomm 6490 octa-core, 2.7 GHz | Android |
| PERFORMANCE - Memory Configurations | 4 GB RAM / 64 GB UFS Flash; 8 GB RAM / 128 GB UFS Flash |
| PERFORMANCE - Security Features | FIPS 140-2 cryptography (select configurations); Secure Boot & Verified Boot |
| ENVIRONMENTAL - Temperature & Humidity | Operating: -4°F to 122°F (-20°C to 50°C) | Storage: -40°F to 158°F (-40°C to 70°C) | Humidity: 5% to 95% non-condensing |
| ENVIRONMENTAL - Sealing Rating | IP65 and IP68 with battery per IEC sealing specifications |
| ENVIRONMENTAL - Drop Specifications | 10 ft. / 3.05 m to concrete at room temp; 8 ft. / 2.4 m to concrete over operating temp (-20°C to 50°C) per MIL-STD 810H |
| ENVIRONMENTAL - Tumble Specification | 2,000 3.3 ft. / 1.0 m tumbles, meets or exceeds IEC specification |
| ENVIRONMENTAL - Vibration & ESD | Vibration: 4 g's PK Sine (5 Hz–2 kHz), 0.04 g²/Hz Random | ESD: +/-15 kV air, +/-8 kV direct/indirect |
