| Fitur | Spesifikasi |
| HARDWARE FEATURES | |

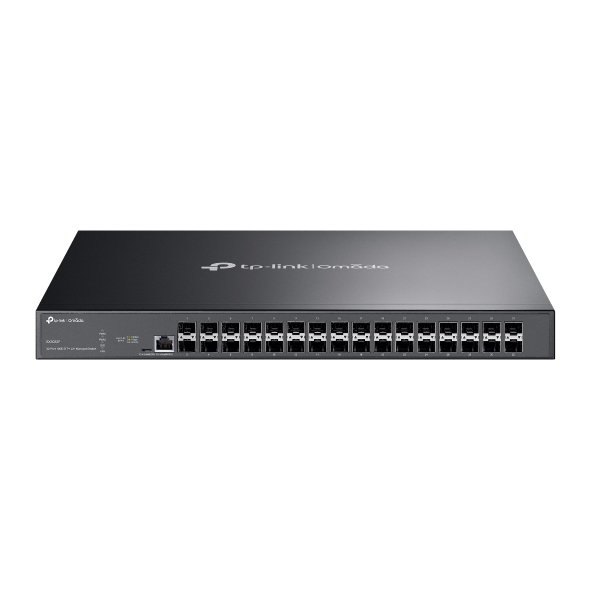

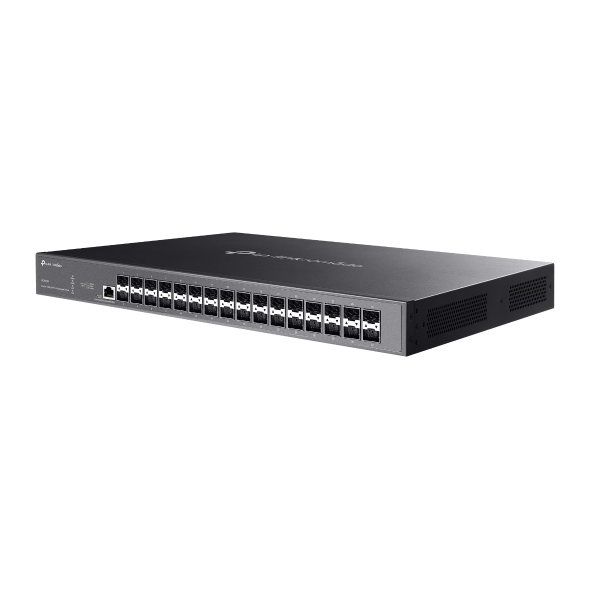

| Interface | 32× 1/10Gbps SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port |
| Fan Quantity | 2 internal fixed fans |
| Physical Security Lock | √ |

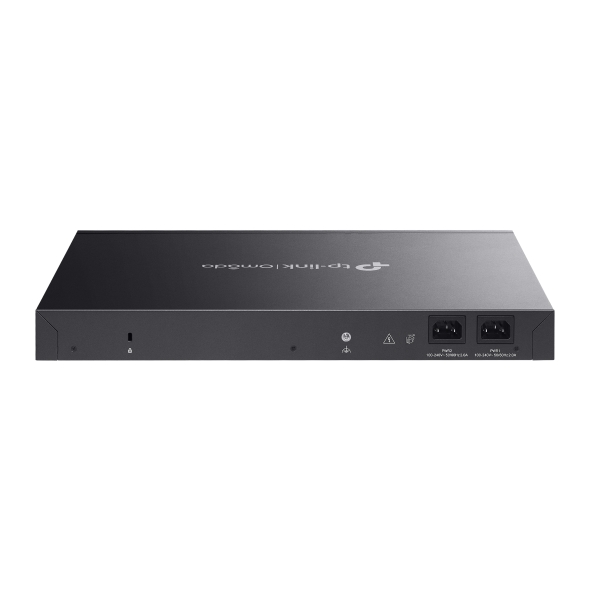

| Power Supply | 1+1 Redundant Power Supply (internal fixed); 100-240 V AC~50/60 Hz |
| Dimensions (W x D x H) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 49.4 W (220 V / 50 Hz) |
| PERFORMANCE | |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32 K |
| MANAGEMENT | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller. |
| Management Features | Web-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Password Recovery; SNTP; System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | SX3032F Switch; 2× Power Cords; Quick Installation Guide; Rackmount Kit; Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: -5–45 °C (23–113 °F); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing |
