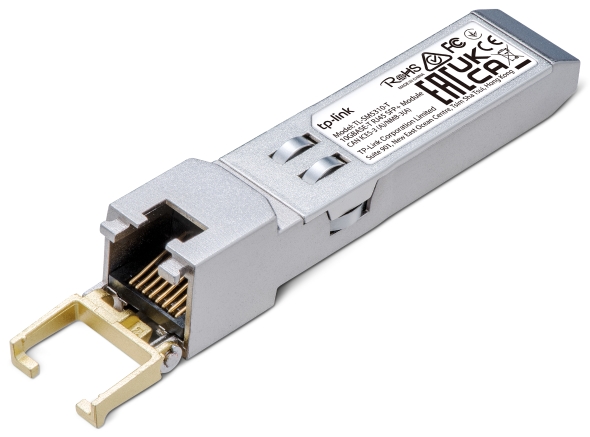

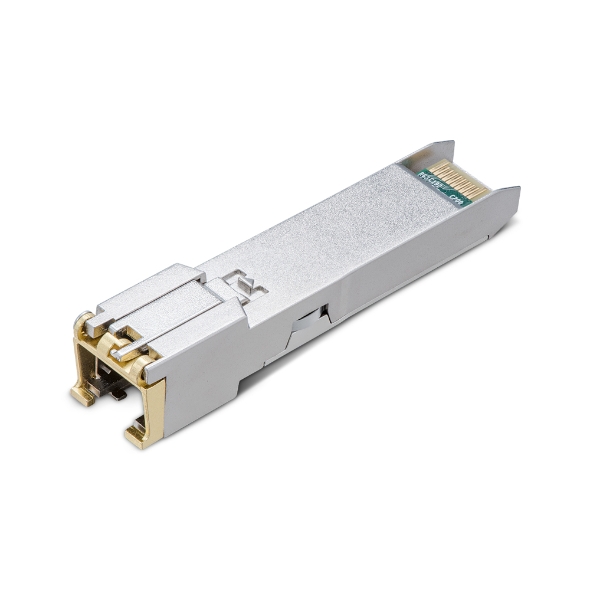

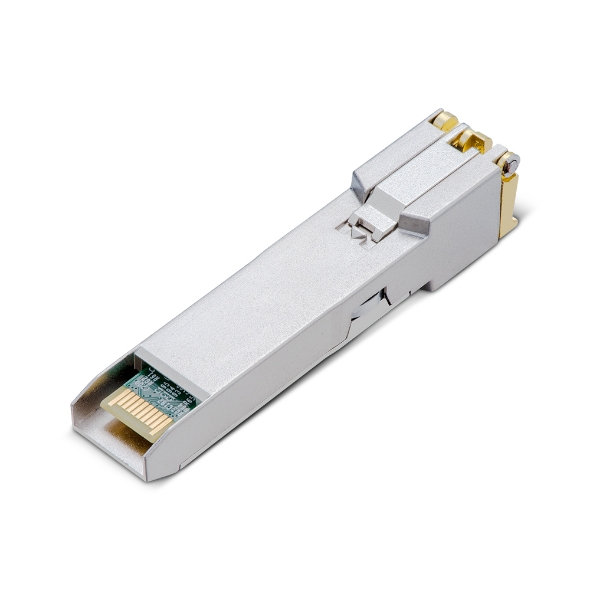

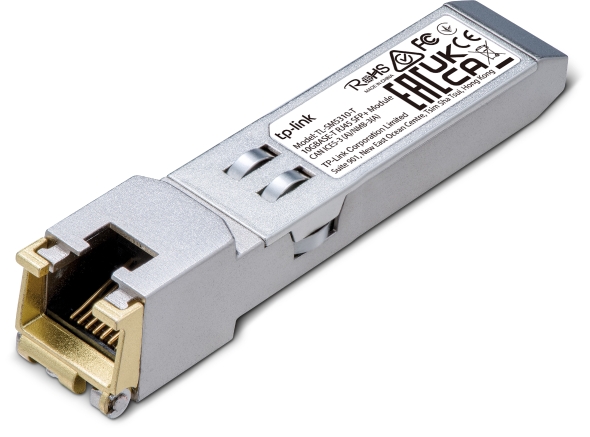

10G BASE-T RJ45 SFP+ ModuleÂ
| Parameter / Feature | Specification Details |
| TRANSCEIVER - Standards and Protocols | IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an |
| TRANSCEIVER - Power Supply | 3.3V |
| TRANSCEIVER - Max Cable Length | 100BASE-TX: UTP Cat 5 or above (max 100m) | 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP Cat 5e or above (max 100m) | 10GBASE-T: UTP Cat 6a or above (max 30m) |
| TRANSCEIVER - Data Rate | 10.3 Gbps |
| TRANSCEIVER - Port Type | 1× 10G RJ45 Port |
| TRANSCEIVER - Safety & Emission Certifications | FCC, CE, RoHS |
| HARDWARE - Hot Swappable | Yes |
| HARDWARE - Dimensions (W x D x H) | 2.7 × 0.5 × 0.5 in. (67.4 × 13.75 × 13.8 mm) |
| ENVIRONMENT - Operating Temperature | 0–70 ℃ (32–158 ℉) |
| ENVIRONMENT - Storage Temperature | -40–85 ℃ (-40–185 ℉) |
| PACKAGE CONTENTS - Package Content | 10G BASE-T RJ45 SFP+ Module TL-SM5310-T | Installation Guide |
