SG6428XHP

Kategori :

L3 Managed Switch
Tanyakan mengenai produk ini

Deskripsi

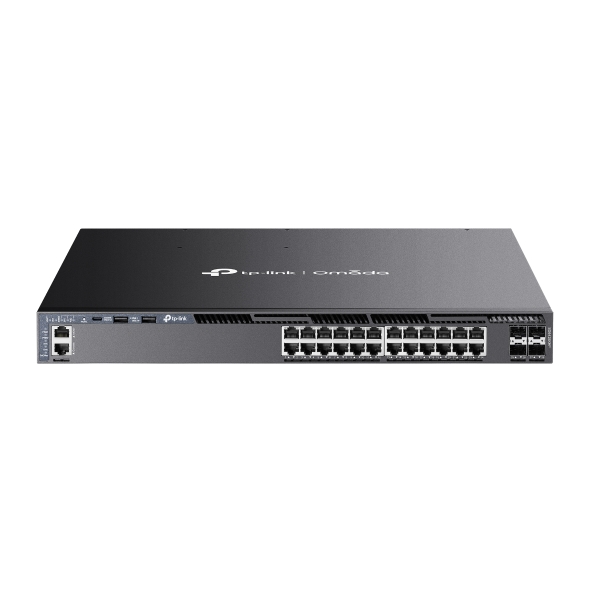

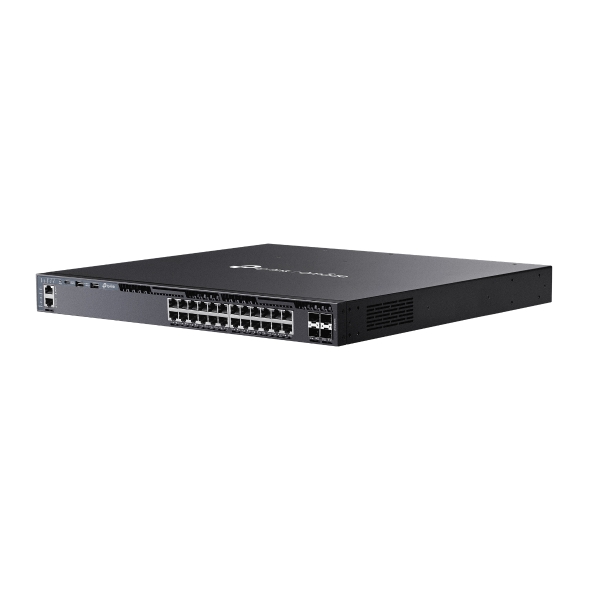

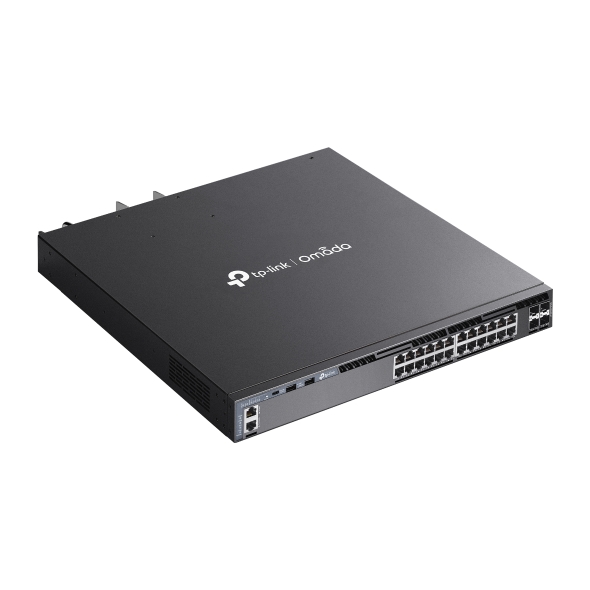

Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots

  • 24× Gigabit RJ45 PoE+ ports
  • 4× 10 Gbps SFP+ slots
  • Up to 720 W total PoE budget*
  • Fast PoE and Perpetual PoE
  • Physical Stacking up to 8 units for built-in redundancy and performance***
  • L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
  • Security Strategies: ACL, Port Security, DoS Defend, 802.1X
  • Highly Available with two field-replaceable power supplies,** VRRP, and ERPS
  • Centralized cloud management via Omada SDN controllers
  • Standalone management via web, CLI, SNMP, and RMON
FiturSpesifikasi
TP-Link SG6428XHP
HARDWARE FEATURES
Interface24× 10/100/1000 Mbps PoE+ RJ45 Ports; 4× 10G SFP+ Slots; 2× USB 2.0 Ports; 1× RJ45 Console Port; 1× USB Type-C Console Port; 1× RJ45 Management Port
Fan QuantityFour field-replaceable and hot-swappable fans

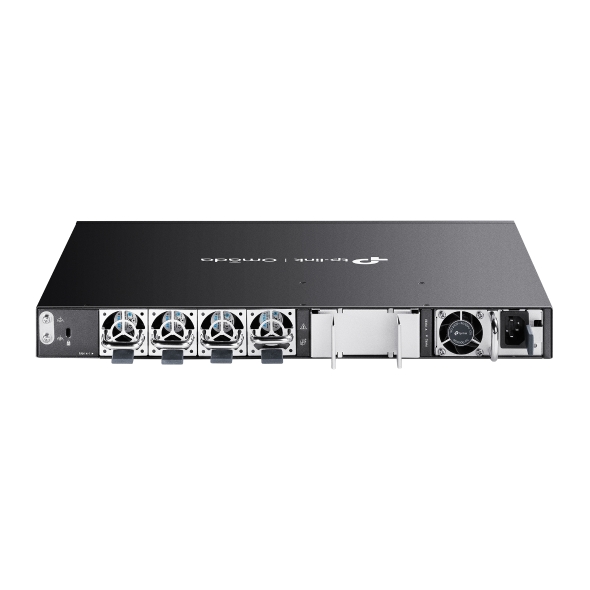

Power SupplyTwo field-replaceable and hot-swappable power supply modules (100–240 VAC, 50/60 Hz). Ships with one PSM500-AC module by default; an additional redundant field-replaceable power supply must be purchased separately.
PoE Ports (RJ45)Standard: IEEE 802.3at/af compliant; PoE+ Ports: 24 ports, up to 30 W per port; PoE Power Budget: up to 720 W. Total PoE budget varies with the power supply modules.
Dimensions (W x D x H)17.3 × 16.5 × 1.7 in; 440 × 420 × 44 mm
MountingRackmountable
Max. Power Consumption42.9 W (110 V/60 Hz, no PD connected); 916.6 W (110 V/60 Hz, with 720 W PD connected and powered by 2× PSM500-AC)
Max. Heat Dissipation146.29 BTU/hr (110 V/60 Hz, no PD connected); 3,125.61 BTU/hr (110 V/60 Hz, with 720 W PD connected and powered by 2× PSM500-AC)
PERFORMANCE
Switching Capacity128 Gbps per unit
StackingStacking Number: 8; Stacking Port: 10G SFP+ slot (all uplink ports can be used as stacking ports); Stack Bandwidth: up to 80 Gbps using 4 stack ports
Packet Forwarding Rate95.2 Mpps
MAC Address Table32K
Packet Buffer Memory3 MB
Jumbo Frame9 KB
MANAGEMENT FEATURES
Omada AppYes; requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes; requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch ProvisioningYes; requires Omada Cloud-Based Controller
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port and telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; EEE
OTHERS
Package ContentSG6428XHP Switch; Power Cord; RJ45 Console Cable; Quick Installation Guide; Rackmount Kit; Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11; MAC® OS; NetWare®; UNIX® or Linux
EnvironmentOperating Temperature: -5 °C to 45 °C (23 °F to 113 °F) at 2,000 meters; -5 °C to 40 °C (23 °F to 104 °F) at 3,000 meters; Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
