SG5428XMPP

Kategori :

L3 Managed Switch
Tanyakan mengenai produk ini

Deskripsi

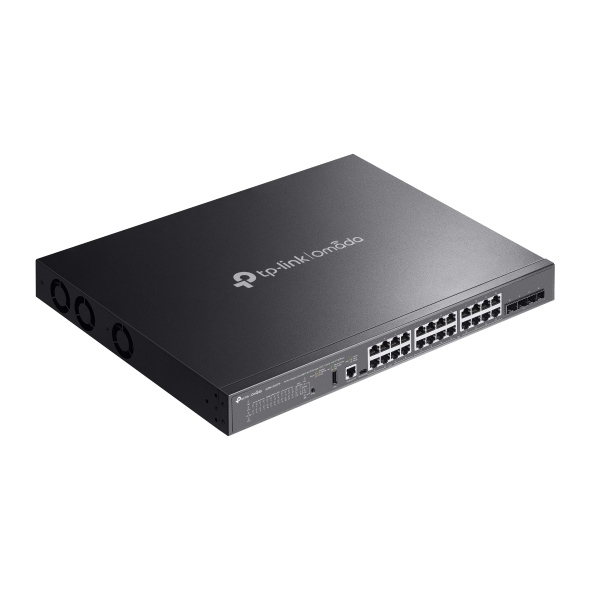

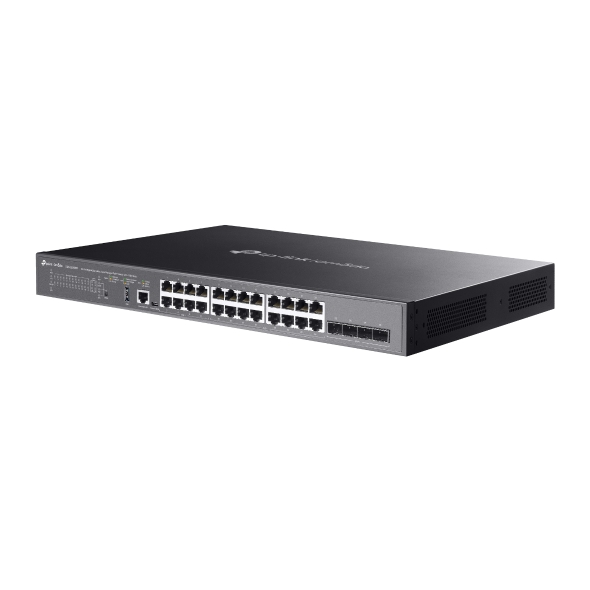

Omada 24-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4× 10G Slots

  • 8× Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
  • 16× Gigabit 802.3af/at PoE+ ports (Max 30W per port)
  • 4× 10 Gbps SFP+ slots
  • Up to 500W total PoE budget*
  • Fast PoE and Perpetual PoE
  • Physical stacking up to 4 units for built-in redundancy and performance
  • L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
  • Security strategies: ACL, Port Security, DoS Defend, 802.1X
  • ERPS supports rapid protection and recovery in a ring topology
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON
FiturSpesifikasi
HARDWARE FEATURES
Interface24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+); 4× 1/10 Gbps SFP+ Slots**; 1× USB 2.0 Port; 1× RJ45 Console Port; 1× USB Type-C Console Port
Fan Quantity3
Power Supply100-240 V~ 50/60 Hz
PoE Ports (RJ45)Standard: 802.3af/at/bt compliant; PoE++ Ports: Ports 1~8 (up to 90W per Port); PoE+ Ports: Ports 9~24 (up to 30W per Port); Power Budget: 500W*; Fast PoE; Perpetual PoE
Dimensions (W x D x H)17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
MountingRackmountable
Max. Power Consumption587.7 W (220V/50Hz) (with 500 W PD connected @ 25 °C); 615.8 W (110V/60Hz) (with 500 W PD connected @ 25 °C)
Max. Heat Dissipation2004.06 BTU/hr (220V/50Hz) (with 500 W PD connected @ 25 °C); 2099.88 BTU/hr (110V/60Hz) (with 500 W PD connected @ 25 °C)
PERFORMANCE
Switching Capacity128 Gbps per Unit
StackingStacking Number: 4; Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports); Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
Packet Forwarding Rate95.23 Mpps
MAC Address Table16 K
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
MANAGEMENT
Omada AppYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of the Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; IEEE 802.3az Energy Efficient Ethernet (EEE)
OTHERS
Package ContentSG5428XMPP Switch; Power Cord; Console Cable; Rackmount Kits; Rubber Feet; Quick Installation Guide
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: -5 °C to 45 °C (23 °F to 113 °F); Storage Temperature: -40 °C to 70 ℃ (-40 °F to 158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
