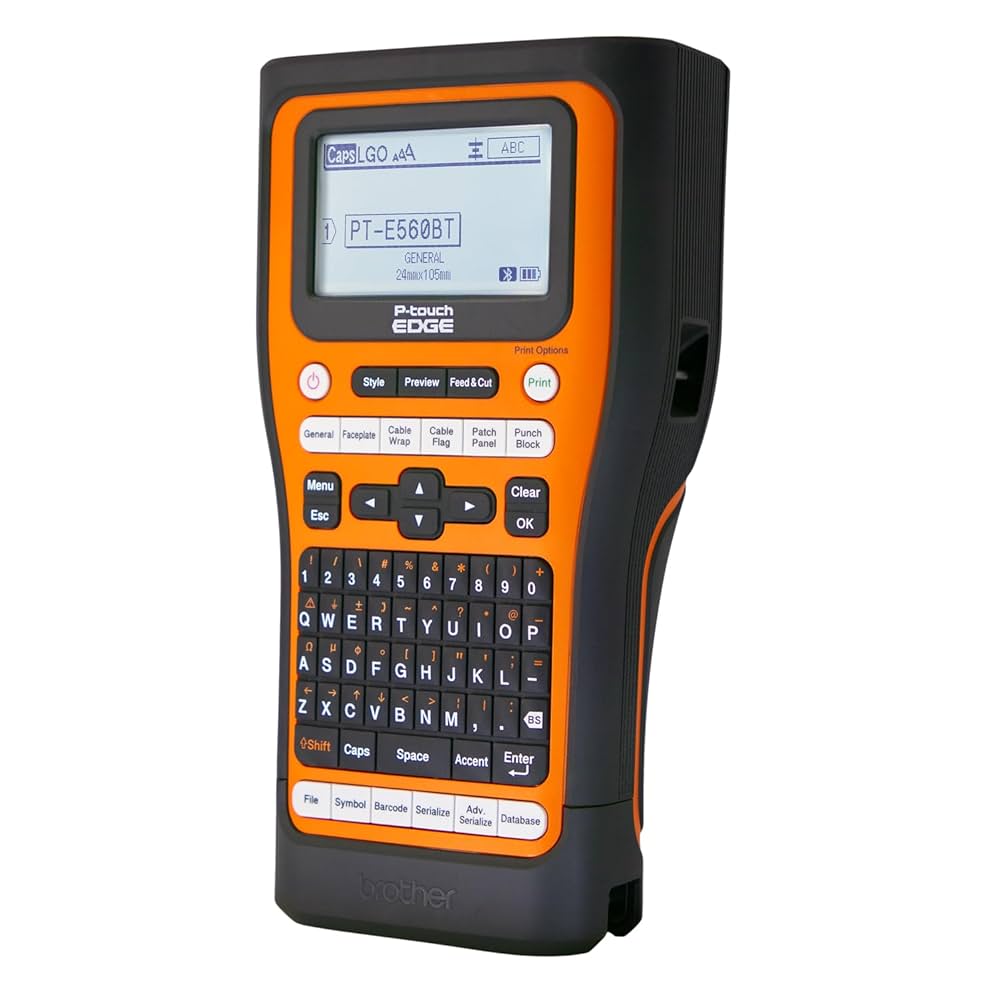

PT-E560BT

Kategori :

P-Touch
Tanyakan mengenai produk ini

Deskripsi

Pro Labelling Machine

  • Create durable labels via the built-in, easy-to-use labelling functions, PC software or simply connect to your smartphone or tablet via
  • Bluetooth and use the Brother Pro Label Tool app
  • Large backlit graphic display
  • Prints durable labels up to 24mm wide
  • Fast print speeds of up to 30mm/sec and automatic (full & half) cutter
  • with easy peel function to print multiple labels in one continuous strip
  • 6x one-touch application keys for general, faceplate, cable flag/wrap, punch down block and patch panel identification
  • Print labels containing QR code/2D barcode and logos
  • Compatible with Brother’s range of Pro Tapes, which are specially
  • designed for industrial labelling applications and provide resistance to water, abrasion, chemicals and temperature extremes
  • Includes 4 specialist tapes to help comply with wiring regulations
FiturSpesifikasi
Specifications
KeyboardQWERTY
Display Type18 characters x 3 lines (240 x 120 dots)
Media TypeTZe, HGe, HSe (Heat-shrink Tube)
Available Tape WidthsTZe: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm; TZe-SL: 24mm; HGe: 6mm, 9mm, 12mm, 18mm, 24mm; HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm, 21.0mm
Product Dimensions (Width X Depth X Height)132 mm × 244 mm × 80 mm
Weight1.05 kg
Print SpeedUsing USB-PD Adapter: Up to 30mm/sec; Using Battery: Up to 20mm/sec
Guarantee3 years / 36 months
Print
Resolution180 dpi / 128 dot
No. Of Printable Lines24 mm tape: 1 - 7 lines; 18 mm tape: 1 - 5 lines; 12 mm tape: 1 - 3 lines; 9 mm tape: 1 - 2 lines; 6 mm tape: 1 - 2 lines; 3.5 mm tape: 1 line
Number of Characters684 characters
Number of Symbols476
BarcodeCODE39; ITF 2/5; EAN13; EAN8; UPC-A; UPC-E; CODABAR; GS1-128 (UCC/EAN128); CODE128; QR Code (model 1, model 2, micro QR, GS1); Datamatrix; Note: GS1 QR codes will be transferred as micro QR codes. 1D barcodes only for transferred templates: ISBN-2; POSTNET; Laser Bar Code; GS1 Databar (RSS); Inteligent Mail Barcode. 2D barcodes only for transferred templates: PDF417; MaxiCode; Aztec code; GS1 Composite
NumberingYes (1 - 99)
Connectivity
ConnectivityBluetooth® Classic, USB 2.0 Full Speed Type C
Media
Printing WidthUp to 18.0mm
Maximum Tape WidthUp to 24mm
Functions
CutterAuto Full and Half
Multi Block PrintingYes
Copy PrintingYes
Mirror PrintingYes
PreviewYes
Memory
File StorageUp to 99 files
Memory Buffer SizeUp to 1800 characters
Power
Power SourceRechargeable Li-ion Battery (BA-E001); Optional: USB-PD Adapter for USB Type-C (PA-AD-004)
Auto Power-OffLi-ion Battery (BA-E001): 20 minutes; USB-PD Adapter for USB Type-C (PA-AD-004): 30 minutes
