PSM550-AC

Kategori :

Chassis Accessory

Deskripsi

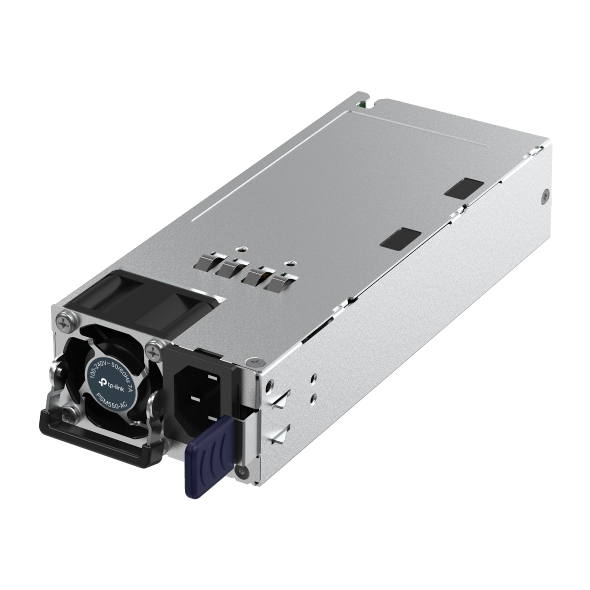

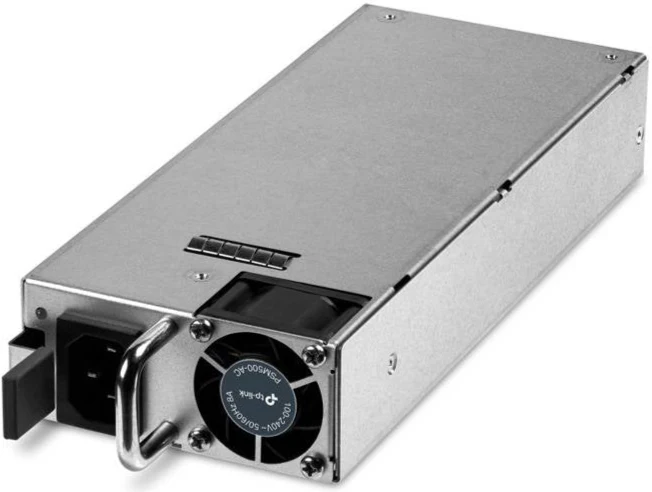

550W AC Power Supply Module

Highlights :

Up to 550 watts output power
Output over-voltage/over-current/short circuit/over-temperature protection
Fully hot-swappable, ensuring no system interruption during installation or replacement
Suitable for SX6632YF, S7500-26XF6Y

Category	Parameter	Value	Unit/Notes
Redundant Power Supply	AC Power Supply	100-240V~ 50/60Hz 7A
Redundant Power Supply	DC Power Output - 12V main	12 VDC/45 A	Maximum
Redundant Power Supply	DC Power Output - 12Vsb	12 VDC/2.1 A	Maximum
Redundant Power Supply	Surge Protection	±4 kV
Redundant Power Supply	Dimensions (W x D x H)	185 × 73.5 × 40	mm
Redundant Power Supply	Max. Power Output	550	W
Environment	Operating Temperature (sea level to 3000 m)	0°C–55°C	32°F–131°F
Environment	Operating Temperature (sea level to 5000 m)	0°C–45°C	32°F–113°F
Environment	Storage Temperature	-40°C–70°C	-40°F–158°F
Environment	Operating Humidity	5%–90% RH	Non-condensing
Environment	Storage Humidity	5%–95% RH	Non-condensing
