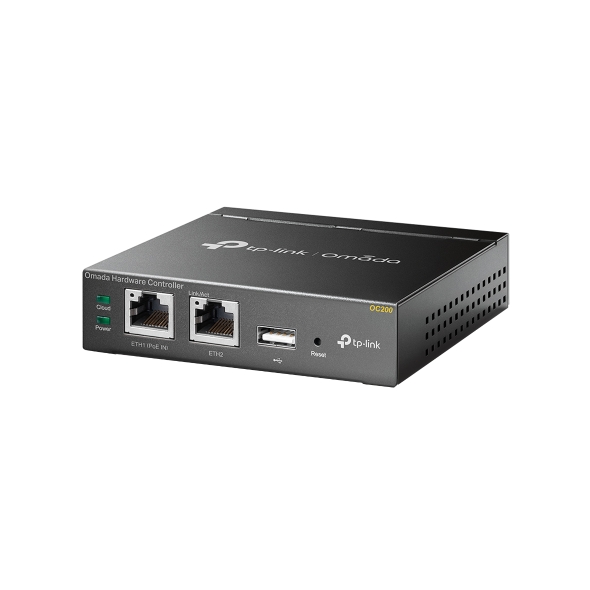

Omada Hardware Controller OC200

OC200_overview_02_normal_20250126022225z

OC200_Overview_06_normal_20211203082722c

OC200_Overview_05_normal_20211203082713k

Kategori :

Hardware Controller

Deskripsi

Centralized Management: Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers.
Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.

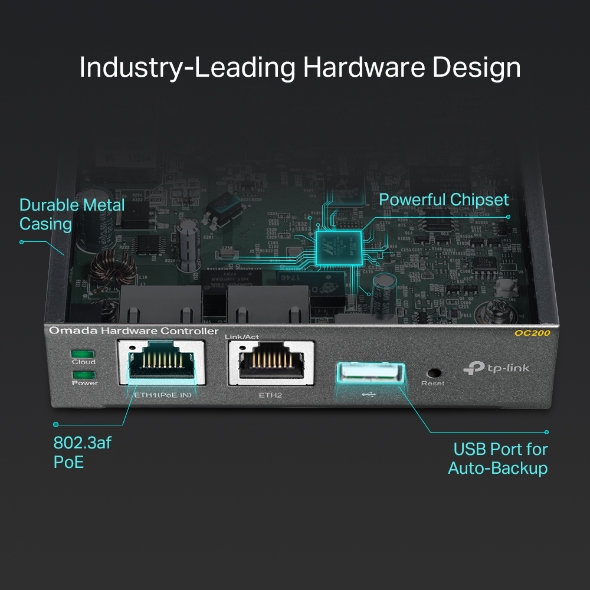

Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports.
Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.

Category	Parameter	Value	Unit/Notes
Hardware Features	Interface - Ethernet Port	2× 10/100 Mbps Ethernet Port
Hardware Features	Interface - USB Port	1× USB 2.0 Port
Hardware Features	Interface - Micro USB Port	1× Micro USB Port
Hardware Features	Power Supply	802.3af/at PoE or Micro USB	DC 5V/Minimum 1A
Hardware Features	Dimensions (W x D x H)	3.9 × 3.9 × 1.0	in
Hardware Features	Dimensions (W x D x H)	100 × 98 × 25	mm
Management Features	Omada App	Yes
Management Features	Centralized Management - Devices	Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
Management Features	Centralized Management - Clients	Up to 1,000 Clients
Management Features	Support Note	Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the device models supported by OC200
Management Features	Cloud Access	Yes
Management Features	L3 Management	Yes
Management Features	Multi-site Management	Yes
Management Features	Automatic Device Discovery	Yes
Management Features	Batch Configuration	Yes
Management Features	Batch Firmware Upgrading	Yes
Management Features	Intelligent Network Monitoring	Yes
Management Features	Abnormal Event Warnings	Yes
Management Features	Unified Configuration	Yes
Management Features	Reboot Schedule	Yes
Management Features	Captive Portal Configuration	Yes
Others	Certification	CE, FCC, RoHS

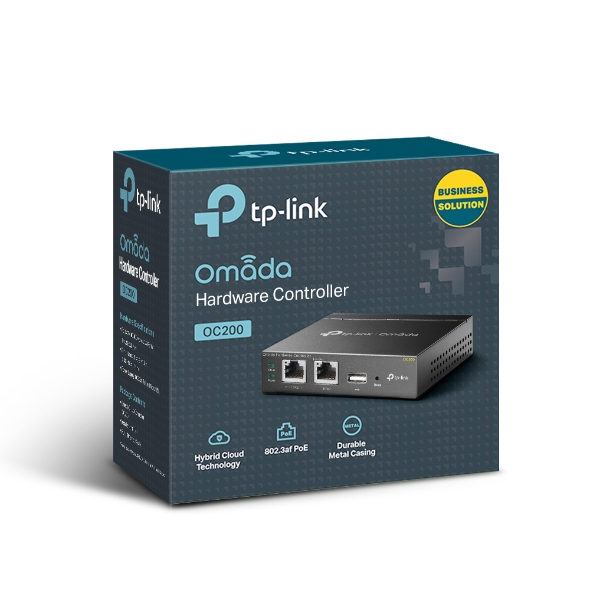

Others	Package Content	Omada Hardware Controller OC200
Others	Package Content	Quick Installation Guide
Others	Package Content	Ethernet Cable
Others	System Requirements	Microsoft Windows 10, 8, 7, Vista, XP or MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature	0–40°C	32–104°F
Environment	Storage Temperature	-40–70°C	-40–158°F
Environment	Operating Humidity	10–90% RH	Non-condensing
Environment	Storage Humidity	5–90% RH	Non-condensing
