The next evolution in the ultra-rugged MC9000 Series now with more power, advanced scanning and the fastest cellular and Wi-Fi connections Wi-Fi 6E and 5GÂ

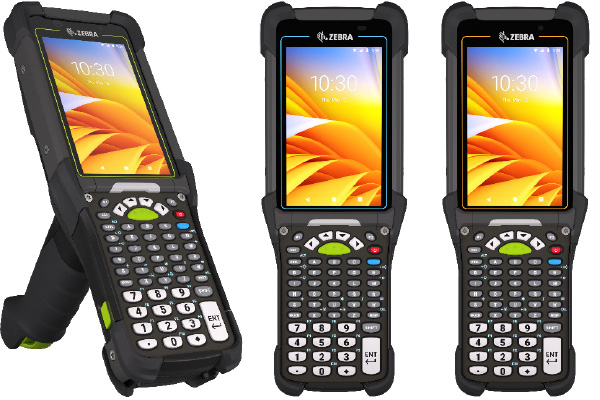

Nearly five million MC9000 Series ultra-rugged mobile computers have helped streamline and error-proof processes in the toughest environments — from manufacturing and warehousing to ports, yards and retail stores. Introducing the next evolution in this highly successful handheld mobile computer family, the MC9400/MC9450.Â
The standard, freezer and non-incendive models are loaded with all the latest mobile technologies. These devices are faster, ready to power the new generation of industrial applications. Scanning is easier with the world’s greatest scanning range — from in-hand to over 100 ft./30.5 m away. And with Wi-Fi 6E and private and public 5G, you get the fastest wireless connections available today — plus the ability to easily and cost-effectively extend your wirelessnetworks to the most expansive indoor and outdoor facilities.Â
Markets and ApplicationsÂ
| Fitur | Spesifikasi |
| Zebra MC9400 / MC9450 | |
| PHYSICAL | |
| Dimensions | 9.4 in. L x 3.5 in. W x 7.4 in. H; 240 mm L x 88 mm W x 189 mm H |
| Weight | 26.2 oz. / 743 g with battery |
| Display | 4.3 in. WVGA (800 x 480), color display, 600 NITS (typical) |
| Imager Window | Corningâ„¢ Gorillaâ„¢ Glass |
| Touch Panel | Dual-mode capacitive touch with finger, gloved finger or stylus input; conductive stylus and screen protector sold separately; Corning Gorilla Glass with air gap on standard model or optically bonded on freezer model |
| Power | Rechargeable Li-Ion 3.6V, 7000mAh (25.20 Wh); optional BLE Battery Li-Ion 3.6V, 7000mAh; optional Freezer Capacity battery 5000mAh (18.80 Wh); optional 7000mAh (25.20 Wh) Non-Incendive battery; hot-swap battery backup with temporary session persistence |
| Expansion Slot | MicroSD supports up to 2 TB |
| SIM | Not specified in provided data |
| Network Connections | MC9400/MC9450: WLAN, WPAN (Bluetooth), USB 2.0 High Speed (host and client); MC9450 only: WWAN 5G data only |
| Notifications | Audible tone; multi-color LED; haptic feedback |
| Keypad | Backlit, field replaceable keypads; 58 Key AlphaNumeric; 53 Key AlphaNumeric STD; 53 Key Terminal Emulation (5250 and VT); 43 Key/34 Key Numeric/Function; 29 Key Numeric/Calculation |
| Voice and Audio | Speaker, microphone, PTT voice; internal speaker and Bluetooth wireless headset support |
| Buttons | Trigger scan button; keypad scan button |
| Interface Ports | USB 2.0 bottom pogo connector; high speed host and client |
| PERFORMANCE CHARACTERISTICS | |
| CPU | Qualcomm 4490 octa-core; 2.4 GHz |
| Operating System | Android; supported Android versions available from Zebra |
| Memory | 6 GB RAM / 128 GB Flash |
| Security | FIPS 140-2 Validated; supports Secure Boot and Verified Boot |
| USER ENVIRONMENT | |
| Operating Temperature | Standard: -4°F to 122°F / -20°C to +50°C; Freezer: -22°F to 122°F / -30°C to +50°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |
| Humidity | Standard: 5%–95% non-condensing; Freezer: 5%–95% condensing with condensation-resistant model and heaters for scanner exit window and touch panel glass |
| Drop Specification | Exceeds MIL-STD-810H: 12 ft. / 3.65 m to concrete; Enterprise drop standard: 8 ft. / 2.4 m to concrete across -20°C to 50°C; Freezer version: 7 ft. / 2.1 m to concrete across -30°C to 50°C |
| Tumble Specification | 6,000 tumbles from 3.3 ft. / 1 m; meets or exceeds IEC tumble specification |
| Sealing | IP65 and IP68 with battery per applicable IEC sealing specifications |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g²/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axes |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge; +/-8 kV direct discharge; +/-8 kV indirect discharge |
| DEVICE APPROVALS, CERTIFICATIONS AND COMPLIANCE | |
| General Compliance | TAA compliant; ARCore Google; Android Enterprise Recommended (AER) |
| TAA | Trade Agreement Act compliance optional on select configurations |
| Non-Incendive (NI) | Optional on select configurations; Class I, II, III Div 2; Gases Class I Groups A/B/C/D; Dusts Class II Groups F/G; Fibers/Flyings Class III; -20°C Ta 50°C T6 |
| DATA CAPTURE | |
| Scanning | SE58 1D/2D Extended Range Scan Engine with IntelliFocusâ„¢ technology and green laser aimer; SE4770 1D/2D Scan Engine with red laser aimer |
| Camera | Front: 8 MP; Rear: 16 MP autofocus; flash LED with balanced white light; supports Torch mode and HDR on standard model |
| NFC | ISO 14443 Type A and B; FeliCa and ISO 15693 cards |
| WIRELESS WAN DATA COMMUNICATIONS (MC9450 ONLY) | |
| Radio Frequency Band | 3G NA: B2/4/5; RoW: B1/2/4/5/8. 4G NA: B2/4/5/7/8/12/13/14/17/25/26/29/30/38/41/48/66/71; RoW: B1/2/3/4/5/6/7/9/10/14/17/18/20/26/28/38/39/40/41/42/43/66/71. 5G FR1 NA: n2/5/7/8/12/13/14/25/26/30/38/41/48/66/71/77/78; RoW: n1/2/3/5/7/8/12/18/20/26/28/38/40/41/66/71/77/78; Gigabit LTE-A; 5G NR Sub-6 (NSA, SA); LTE/NR Carrier Aggregation; private LTE/5G networking support. Actual band support may vary by country or carrier. |
| GPS | MC9450 only: GPS, GLONASS, Galileo, QZSS; Dual-Band GNSS with concurrent L1/G1/E1 and L5/E5a/BDSB2a; a-GPS supports XTRA |
| Multimedia | Wi-Fi Multimediaâ„¢ (WMM) and WMM-PS, including TSPEC |
| VOIP Communications | Supports Workcloud Communicationâ„¢ PTT Express and Workcloud Communication PTT Pro |
| WIRELESS LAN | |
| Radio | IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band 2.4 GHz, 5 GHz, 6 GHz; Wi-Fi CERTIFIED 6â„¢ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates | 2.4 GHz: 802.11b/g/n/ax, 20 MHz, up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax, 20/40/80/160 MHz, up to 2402 Mbps; 6 GHz: 802.11ax, 20/40/80/160 MHz, up to 2402 Mbps |
| Fast Roam | 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
| Operating Channels | 2.4 GHz Channel 1–13 (2401–2483 MHz); 5 GHz Channel 36–165 (5150–5850 MHz); 6 GHz Channel 1–233 (5925–7125 MHz); channel bandwidth 20/40/80/160 MHz. Actual operating channels, frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption | WEP 40/104 bit; Enhanced Open (OWE); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) with EAP-TLS; MC9450 only: EAP-SIM, EAP-AKA, EAP-AKA Prime |
| Certifications | Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise including 192-bit mode; Protected Management Frames; Wi-Fi Enhanced Open; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint |
