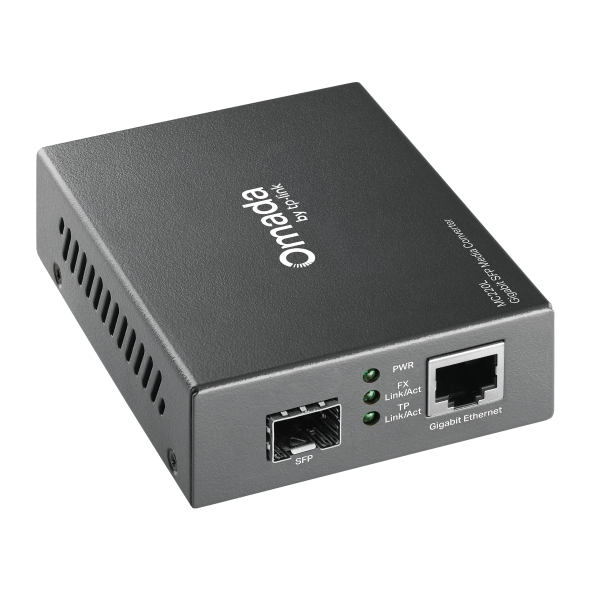

Omada Gigabit SFP Media ConverterÂ
| Parameter / Feature | Specification Details |
| MEDIA CONVERTER - Standards & Protocols | IEEE 802.3i 10BASE-T | IEEE 802.3u 100BASE-T | IEEE 802.3ab 1000BASE-T | IEEE 802.3z 1000BASE-X | IEEE 802.3x Flow Control |
| MEDIA CONVERTER - Basic Functions | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode | Maximum transmission distance depends on the inserting SFP module |
| MEDIA CONVERTER - Interface Ports | 1× 1000M SFP port | 1× 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| MEDIA CONVERTER - Wave Length | Depends on the used SFP module |
| MEDIA CONVERTER - Network Media (1000BASE-X) | Multi-mode / Single-mode SFP module |
| MEDIA CONVERTER - Network Media (1000BASE-T) | UTP category 5, 5e cable (maximum 100m) / EIA/TIA-568 100Ω STP (maximum 100m) |
| HARDWARE - Dimensions (W x D x H) | 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm) |
| HARDWARE - Power Specs | External Power Adapter | Max Power Consumption: 1.7W |
| HARDWARE - LED Indicators | PWR, Link/Act |
| OTHERS - Safety & Emission Certifications | FCC, CE, RoHS |
| OTHERS - Package Contents | MC220L | Power Adapter | Installation Guide |
| OTHERS - Environmental Conditions | Operating Temp: 0℃~50℃ (32℉~122℉) | Storage Temp: -40℃~70℃ (-40℉~158℉) | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing |
