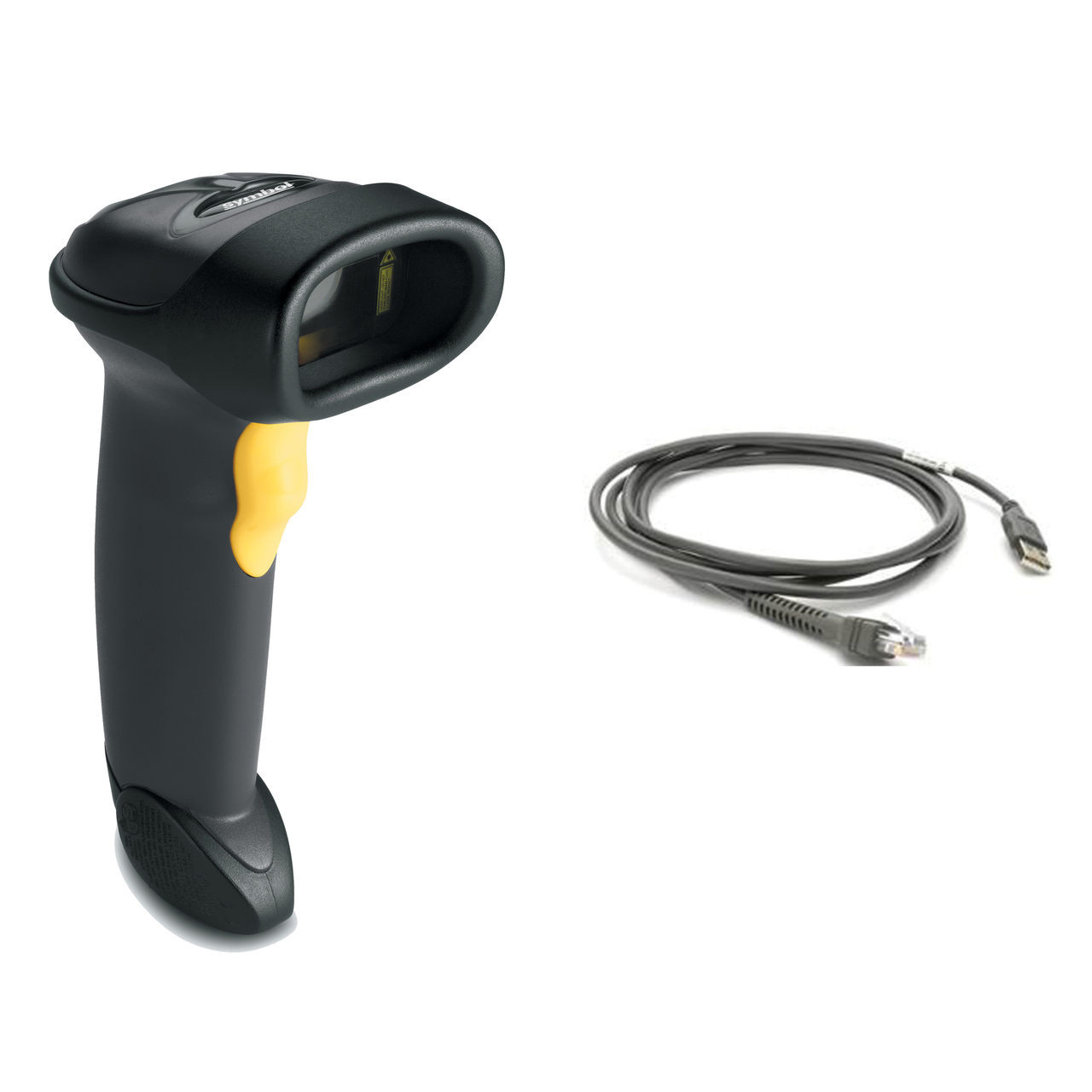

Our best selling handheld laser scannerÂ
With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all — enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density.Â
With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208, the well-proven scanner powering the checkout lines all around the world.Â
Key FeaturesÂ
| Fitur | Spesifikasi |
| Zebra LS2208 | |
| PHYSICAL | |
| Dimensions | 6.0 in. H x 2.5 in. W x 3.3 in. D; 15.2 cm H x 6.4 cm W x 8.5 cm D |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Current at Nominal Voltage (5.0V) | 175 mA (typical) |
| Standby Current (Idle) at Nominal Voltage (5.0V) | 90 mA (typical) |
| Color | Cash Register White; Twilight Black |
| Supported Host Interfaces | USB; RS232; Keyboard Wedge; TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct decode indicator; good decode LEDs; beeper with adjustable tone and volume |
| PERFORMANCE CHARACTERISTICS | |
| Light Source | 650 nm Laser Diode Class 2 |
| Scan Pattern | Single line |
| Scan Speed | 100 scans per second |
| Scan Angle | 35° |
| Minimum Print Contrast | 20% minimum reflective difference |
| Skew Tolerance | ± 10° |
| Pitch Tolerance | ± 65° |
| Roll Tolerance | ± 60° |
| USER ENVIRONMENT | |
| Operating Temperature | 32° to 122° F / 0° to 50° C |
| Storage Temperature | -40° to 158° F / -40° to 70° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete |
| Tumble Specification | Designed to withstand 500 tumbles in 1.64 ft. / 0.5 m tumbler |
| Environmental Sealing | IP30 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to artificial indoor and natural outdoor lighting. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450 Ft. Candles (4,844 Lux); Sunlight: 8,000 Ft. Candles (86,111 Lux) |
| ACCESSORIES | |

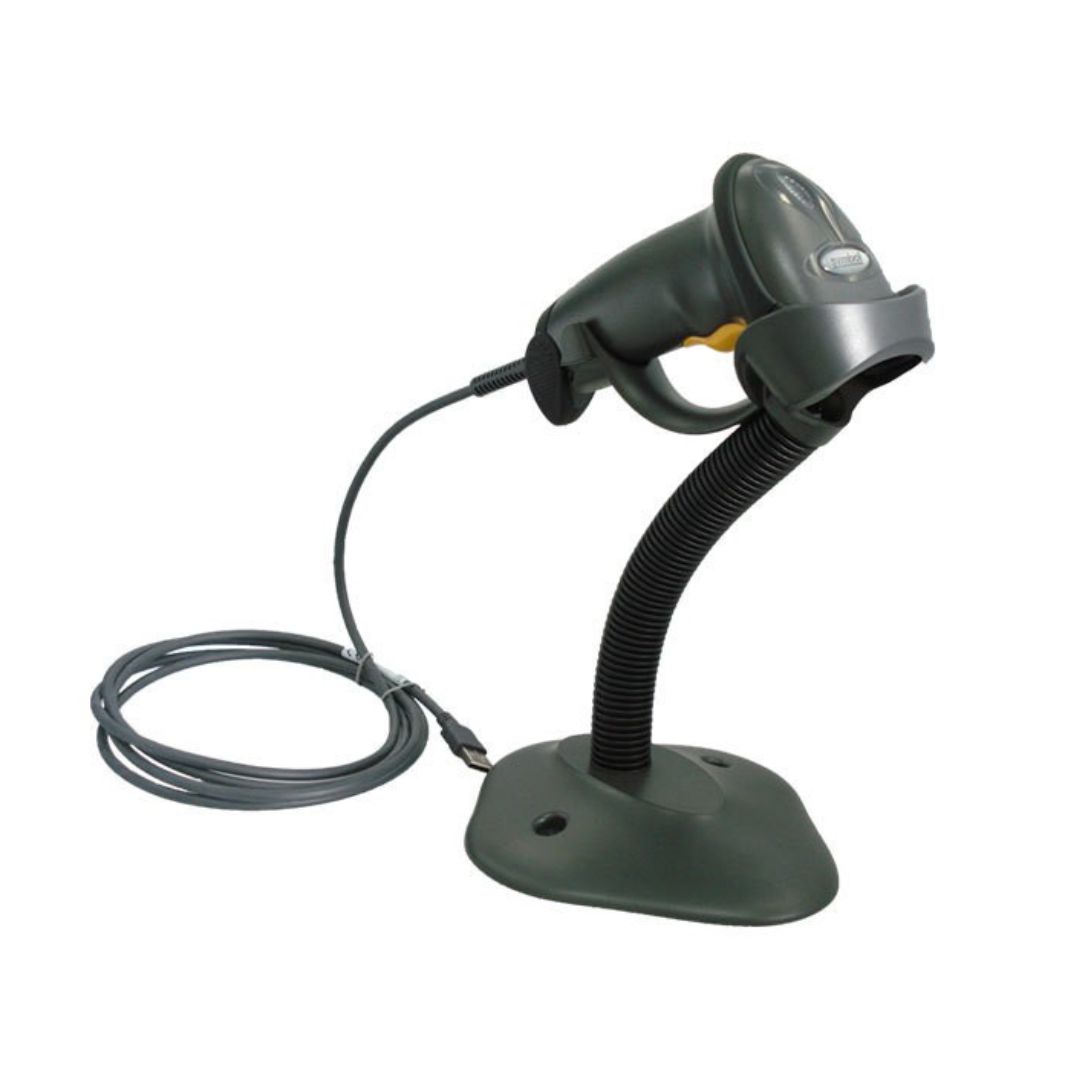

| Accessories | Gooseneck Intellistand |
| REGULATORY | |
| Electrical Safety | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 |
| EMI/RFI | FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC |
| Laser Safety | CDRH Class II; IEC Class 2 |
| Environmental Compliance | Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012 |
| UTILITIES AND MANAGEMENT | |
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. |
| Symbol Scanner SDK | Generates a fully featured scanner application, including documentation, drivers, test utilities and sample source code. |
| Scanner Management Service (SMS) | Remotely manages Zebra scanner and queries its asset information. |
| WARRANTY | |
| Warranty | LS2208 is warranted against defects in workmanship and materials for five years from the date of shipment, subject to Zebra’s hardware warranty statement. Limited lifetime warranty on the scan element. |
| RECOMMENDED SERVICES | |
| Recommended Services | Zebra OneCare Select; Zebra OneCare Service Center Select |
| DECODE RANGES (TYPICAL) | |
| Code 39: 3 mil | 1.6–4.8 in. / 4.1–12.2 cm |
| Code 39: 4 mil | 1.3–8.7 in. / 3.3–22.1 cm |
| Code 39: 5 mil | 0.9–11.7 in. / 2.3–29.7 cm |
| Code 39: 7.5 mil | 0.1–19.1 in. / 0.3–48.5 cm |
| Code 39: 20 mil | 0–33.8 in. / 0–85.9 cm |
| Code 39: 40 mil | 1–43.1 in. / 2.5–109.5 cm |
| UPC: 13 mil (100%) | 0–25.1 in. / 0–63.8 cm |
| SYMBOL DECODE CAPABILITY | |
| Scanning Technology | Code 39; Code 128; Code 93; Codabar/NW7; Code 11; MSI Plessey; UPC/EAN; I 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies. |
| Minimum Element Resolution | Code 39: 3.0 mil |
| Note | Decode range depends on printing resolution, contrast, and ambient light. |
