Android Kiosk ComputerÂ
Choose your size, orientation and peripheralsÂ

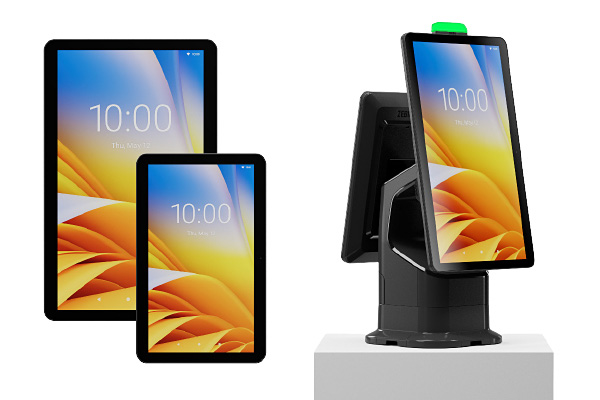

These 15-inch and 22-inch displays can be deployed in either portrait or landscape orientation. The Z-Flex Connectors on each of the four sides are ready to connect peripherals, such as a scanner and a notification light bar. Since there is a universal Z-Flex connector on every side, peripheral placement is not restricted — and can be moved to another location at any time.Â
Markets and ApplicationsÂ
| Fitur | Spesifikasi |
| Zebra Fixed Enterprise Tablet / Kiosk | |
| PHYSICAL | |
| Dimensions - 15 inch | 15.17 in L x 9.43 in W x 1.51 in H; 385.2 mm L x 239.4 mm W x 38.3 mm H |
| Dimensions - 22 inch | 20.35 in L x 12.56 in W x 1.70 in H; 516.8 mm L x 319.0 mm W x 43.3 mm H |
| Weight - 15 inch | 5.7 lbs (2.6 kg) |
| Weight - 22 inch | 11.6 lbs (5.3 kg) |
| Display - 15 inch | 15.6 in. Full High Definition; 1080 x 1920; LED backlight; 300 NITS; optically bonded to touch panel |
| Display - 22 inch | 21.5 in. Full High Definition; 1080 x 1920; LED backlight; 300 NITS; optically bonded to touch panel |
| Touch Panel | 2.0mm thick Alkali-Aluminosilicate chemically strengthened cover glass; fingerprint-resistant anti-smudge coating; multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately) |
| Expansion | MicroSD card supports up to 2 TB |
| Connectivity | USB-C with DP ALT Mode for secondary display |
| Network Connections | WLAN (Wireless Local Area Networks); 10/100/1000 Ethernet via RJ45 connector |
| Notifications | Audible tone; haptic feedback; optional Z-Flex multi-color LED bar accessory; Power LED |
| Keypad | On-screen keypad and enterprise keyboard |
| Audio | Two microphones with noise cancellation; dual 1W speakers |
| Buttons | Power and volume up/down buttons |
| Interface Ports | Ethernet RJ45; USB Type A 3.0 SuperSpeed Host Port; GPIO connector for future expansion with USB 2.0 Host Port |
| Scanner Support | Support for external USB and Bluetooth scanners |
| Mounting and Stands | VESA 100 or VESA 75 mounting; optional accessories: TD50 15-inch secondary display; Z-Flex SE4720 decoded scanner; Z-Flex Multi-Color LED light bar; desktop/floor/countertop stand accessories with support for printer box and height risers |
| Sensors | |
| Motion Sensor | 3-axis gyroscope; 3-axis accelerometer |
| Data Capture | |
| Scanning | Optional SE4720 1D/2D decoded imager Z-Flex Accessory |
| Front Camera | 5 MP |
| Wireless LAN | |
| Radio | IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6â„¢ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates | 2.4 GHz: 802.11b/g/n/ax, 20 MHz, up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax, 20/40/80/160 MHz, up to 2402 Mbps; 6 GHz: 802.11ax, 20/40/80/160 MHz, up to 2402 Mbps |
| Operating Channels | 2.4 GHz Channel 1–13 (2401–2483 MHz); 5 GHz Channel 36–165 (5150–5850 MHz); 6 GHz Channel 1–233 (5925–7125 MHz); channel bandwidth: 20, 40, 80, 160 MHz. Actual channels, frequencies and bandwidths depend on local regulations and certification. |
| Security and Encryption | WPA3 Enterprise 192-bit mode, GCMP256 — EAP-TLS; WPA3 Enterprise, AES-CCMP-128 — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Personal (SAE), AES-CCMP-128; WPA/WPA2 Enterprise, TKIP and AES-CCMP-128; WPA/WPA2 Personal (PSK), TKIP and AES-CCMP-128; Enhanced Open (OWE), AES-CCMP-128; WEP 40 bit and 104 bit |
| Wi-Fi Certifications | Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise including 192-bit mode; Protected Management Frames; Wi-Fi Enhanced Open; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint |
| Fast Roam | 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
| Wireless PAN | |
| Bluetooth | Class 2, Bluetooth v5.3 with Bluetooth Low Energy (BLE) |
| NFC | Center of display, front facing; NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; NFC Forum tags 2, 3, 4, 5; Host Card Emulation; Contactless Payment Support; Front Tap NFC; VAS and Wallet support; Apple ECP1.0/ECP2.0; Apple VAS and Google Smart Tap certified; VAS Library/SDK |
| User Environment | |
| Electrostatic Discharge (ESD) | +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
| Power | |
| Power Supply | 24 VDC Zebra PSU: PWR-BGA24V78W4WW |
| Power Profiles | Predefined or customized configurations for main display brightness, external display connection, speaker, Wi-Fi, Bluetooth, USB and GPIO connectors to meet different power allocations |
| Power over Ethernet | 30W to 90W PSE; IEEE 802.3at/bt; capable of receiving a maximum of 71 watts from a compliant PoE power supply; supports Class 4 through 8 |
