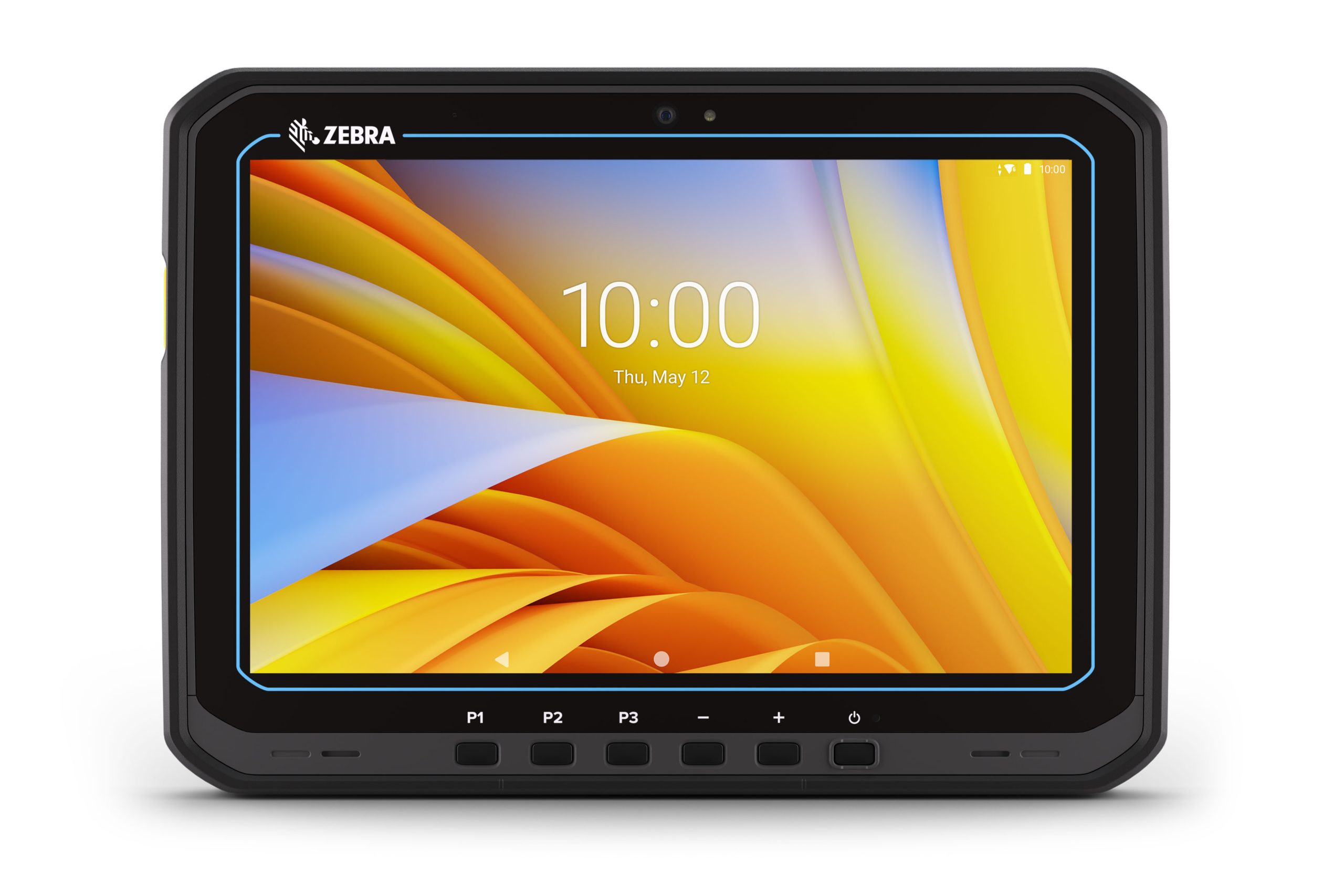

Android Tablet
Designed for tough indoor settings, such as warehouses and manufacturing plants-including the freezer. Perfect for forklift and other material handling vehicle mounting with the innovative vehicle dock.
Key Features
Commonly Used For
| Parameter / Feature | Specification Details |
| PHYSICAL - Dimensions | 10.8 in. W x 7.8 in. L x 0.7 in. H (275 mm W x 199 mm L x 18.3 mm H) |
| PHYSICAL - Weight | 2.44 lbs (1108 g) standard battery | 2.74 lbs (1247 g) extended battery |
| DISPLAY & TOUCH - Display | 10.1 in. WUXGA (1920 x 1200) — 1,000 nits; optically bonded to touchpanel |
| DISPLAY & TOUCH - Touchpanel | Multi-mode capacitive touch (bare/gloved fingertip, conductive stylus sold separately); Corning™ Gorilla™ Glass; Water droplet rejection; Fingerprint resistant anti-smudge coating |
| EXPANSION & PORTS - Expansion Slot | User accessible MicroSD card; supports up to 2 TB |
| EXPANSION & PORTS - Connectivity Ports | 2 x USB 3.1 Type A Ports; 1 x USB 3.1 Type C Port (with DisplayPort 1.2 support) |
| EXPANSION & PORTS - Interface Ports & Expansion | Docking connector (charge and data); Keyboard connector; 1 x USB 2.0 (back I/O - host only) |
| INTERFACE - Notifications | Audible tone; 2x multi-color LEDs |
| INTERFACE - Audio | Stereo speakers and two microphones; audio headset supported through USB port or Bluetooth; speaker/microphone support |
| INTERFACE - Buttons | Power; Scan; Up/Down (volume or brightness); three programmable keys |
| INTERFACE - External Scanner Support | HID via USB and Bluetooth™; SSI via USB and Bluetooth for DS/LI 36XX, RS5100 and RS6100 |
| POWER - Charging | Through USB Type-C (USB PD3.0 compatible) port or optional dock |
| POWER - Battery Options | Standard capacity: 8,920 mAh | Extended capacity: 17,840 mAh | Hot Swap battery mode |
| POWER - No-Battery Configuration | Super Capacitor: 5-minutes of operation |
| POWER - Battery Run Time | Standard battery: 10 hours indoor (WLAN on, 50% backlight) | Extended battery: 20 hours indoor (WLAN on, 50% backlight) |
| POWER - Battery Charge Time | Standard battery: 2.5 hrs (4% to 80% with 45 W supply) | Extended battery: 5.5 hrs (4% to 80% with 45 W supply) |
| SENSORS - Integrated Sensors | Ambient Light Sensor (auto brightness); Magnetometer (eCompass); Motion Sensor (3-axis gyroscope & 3-axis accelerometer); Humidity Sensor (control input for display heating) |
| DATA CAPTURE - Optional Scanner Engine | SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology |
| DATA CAPTURE - Cameras | Rear Camera: 16 MP autofocus with flash LED | Front Camera: 8 MP with mechanical privacy shade |
| DATA CAPTURE - Camera Scanning Capabilities | 1D/2D barcodes; optional OCR for documents, license plates, VINs and more |
