EAP772-Outdoor

Kategori :

Outdoor AP
Tanyakan mengenai produk ini

Deskripsi

Omada Tri-Band Omnidirectional BE11000 Indoor/Outdoor WiFi 7 Access Point

  • Tri-Band Six-Stream Outdoor WiFi 7: Up to 11 Gbps.
  • 6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.
  • True Tri-Band Omnidirectional Coverage: 300m2 (3,200ft2) recommended coverage
  • Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarized antennas.
  • Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
  • Advanced Features: Centralized management, mesh, and seamless roaming
SectionFeatureValue

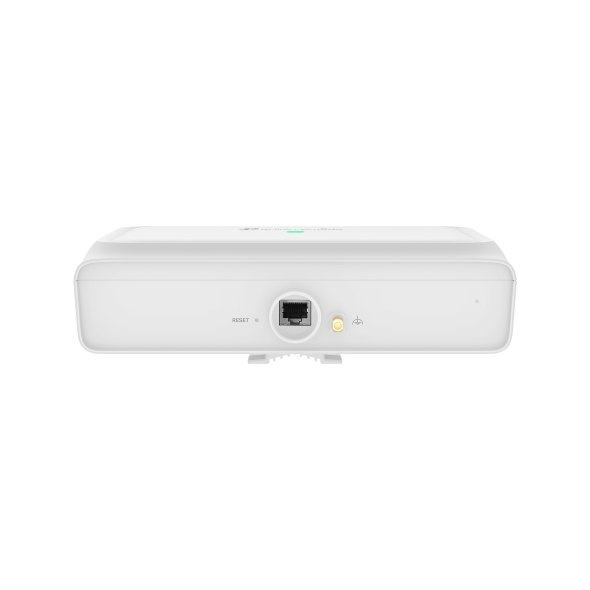

HARDWARE FEATURESInterface1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
HARDWARE FEATURESButtonReset
HARDWARE FEATURESPower Supply802.3at PoE
HARDWARE FEATURESMax. Power Consumption23W (for PoE)
HARDWARE FEATURESDimensions (W x D x H)9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
HARDWARE FEATURESAntenna2.4 GHz: 2× 4 dBi
5 GHz: 2× 6 dBi
6 GHz: 2× 6 dBi
HARDWARE FEATURESGNSSL1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals
Receive sensitivity: -164dBm (tracking)
GPS antennas: Integrated 3dBi omnidirectional antennas
HARDWARE FEATURESBluetoothBLE 5.2
HARDWARE FEATURESWeatherproof EnclosureIP68
HARDWARE FEATURESMountingPole/Wall Mounting (Kits included)
WIRELESS FEATURESCoverage300m2 (3,200ft2) Recommended Omnidirectional Coverage
WIRELESS FEATURESConcurrent Clients380+**
WIRELESS FEATURESWireless StandardsIEEE 802.11be/ax/ac/n/g/b/a
WIRELESS FEATURESFrequency2.4 GHz, 5 GHz, 6 GHz
WIRELESS FEATURESSignal Rate688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)†
WIRELESS FEATURESWireless Functions4k-QAM
OFDMA
Multiple SSIDs: 24 (8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
MLO
320MHz
Omada Mesh§
Seamless Roaming(802.11k/v/r)§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Static IP/Dynamic lP
WIRELESS FEATURESWireless SecurityCaptive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
WIRELESS FEATURESTransmission PowerCE:
Indoor Mode: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1 & band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP)
Outdoor Mode: < 20 dBm (2.4 GHz, EIRP); < 28 dBm (5 GHz, band 3, EIRP)
FCC:
Indoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)
Outdoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)
Management FeaturesOmada AppYes
Management FeaturesCentralized ManagementOmada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Management FeaturesCloud AccessYes. Require the use of an Omada controller.
Management FeaturesEmail AlertsYes
Management FeaturesManagement MAC Access ControlYes
Management FeaturesSNMPv1, v2c
Management FeaturesSystem Logging Local/Remote SyslogYes
Management FeaturesSSHYes
Management FeaturesWeb-based ManagementYes
Management FeaturesL3 ManagementYes
Management FeaturesMulti-site ManagementYes
Management FeaturesManagement VLANYes
Management FeaturesZero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller
OTHERSCertificationCE, FCC, RoHS
OTHERSPackage ContentAccess Point EAP772-Outdoor
Waterproof Kit
Mounting Kits
Installation Guide
OTHERSSystem RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
OTHERSEnvironmentOperating Temperature: -30–70 ℃ (-22–158 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
