EAP655-Wall

Kategori :

Wall Mount AP

Deskripsi

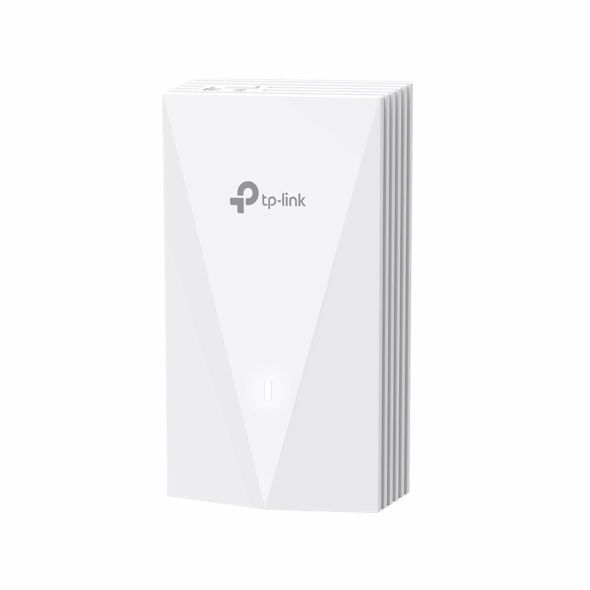

AX3000 Wall Plate WiFi 6 Access Point

Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
Higher Network Efficiency: Deliver data to more devices at the same time with less lag
Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.

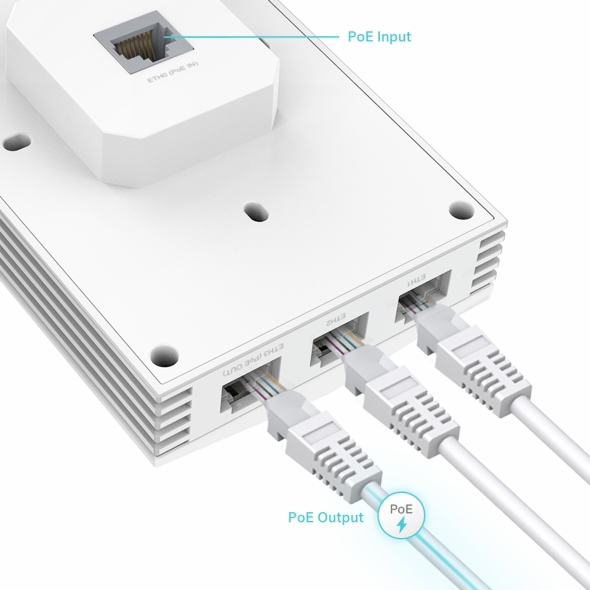

Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies.
Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Category	Feature	Specification
Hardware Features	Interface Uplink	1× Gigabit Ethernet Port
Hardware Features	Interface Downlink	3× Gigabit Ethernet Ports
Hardware Features	PoE Out Port	One downlink port supports PoE out
Hardware Features	PoE Out Requirement	Requires 802.3at PoE+ input
Hardware Features	PoE Pass-through Output	Maximum 10.5 W (EU version) or 10 W (US version), based on laboratory testing
Hardware Features	Physical Security Lock	No
Hardware Features	Button	Reset, LED
Hardware Features	Power Supply	802.3af/at PoE
Hardware Features	Max. Power Consumption EU	12W (802.3at PoE, PoE Out off)
Hardware Features	Max. Power Consumption US	12.6W (802.3at PoE, PoE Out off)
Hardware Features	Dimensions (W x D x H)	143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
Hardware Features	Antenna	2 Dual-Band Antennas
Hardware Features	Antenna Gain 2.4GHz	2× 3 dBi
Hardware Features	Antenna Gain 5GHz	2× 5 dBi
Hardware Features	Mounting	Wall Plate Mounting (Kits included)
Management Features	Omada App	Yes
Management Features	Centralized Management	Omada Hardware Controller
Management Features	Centralized Management	Omada Software Controller
Management Features	Centralized Management	Omada Cloud-Based Controller
Management Features	Cloud Access	Yes. Require the use of an Omada controller.
Management Features	Email Alerts	Yes
Management Features	LED ON/OFF Control	Yes
Management Features	Management MAC Access Control	Yes
Management Features	SNMP	v1, v2c, v3
Management Features	System Logging Local/Remote Syslog	Local/Remote Syslog
Management Features	SSH	Yes
Management Features	Web-based Management	HTTP/HTTPS
Management Features	L3 Management	Yes
Management Features	Multi-site Management	Yes
Management Features	Management VLAN	Yes
Management Features	Zero-Touch Provisioning	Yes. Require the use of an Omada controller.
Wireless Features	Coverage	50㎡ (600 ft²)
Wireless Features	Concurrent Clients	120+
Wireless Features	Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Wireless Features	Frequency	2.4 GHz and 5 GHz
Wireless Features	Signal Rate 5GHz	Up to 2402 Mbps
Wireless Features	Signal Rate 2.4GHz	Up to 574 Mbps
Wireless Features	SSIDs	16 SSIDs (Up to 8 SSIDs on each band)
Wireless Features	Wireless Function	Enable/Disable Wireless Radio
Wireless Features	Wireless Function	Automatic Channel Assignment
Wireless Features	Wireless Function	Transmit Power Control (Adjust Transmit Power on dBm)
Wireless Features	Wireless Function	QoS(WMM)
Wireless Features	Wireless Function	Seamless Roaming
Wireless Features	Wireless Function	Beamforming
Wireless Features	Wireless Function	Rate Limit
Wireless Features	Wireless Function	Load Balance
Wireless Features	Wireless Function	Airtime Fairness
Wireless Features	Wireless Function	Band Steering
Wireless Features	Wireless Function	Reboot Schedule
Wireless Features	Wireless Function	Wireless Schedule
Wireless Features	Wireless Function	RADIUS Accounting
Wireless Features	Wireless Function	MAC Authentication
Wireless Features	Wireless Function	Wireless Statistics
Wireless Features	Wireless Function	Static IP/Dynamic IP
Wireless Security	Captive Portal Authentication	Yes
Wireless Security	Access Control	Yes
Wireless Security	Wireless Mac Address Filtering	Yes
Wireless Security	Wireless Isolation Between Clients	Yes
Wireless Security	VLAN	Yes
Wireless Security	Rogue AP Detection	Yes
Wireless Security	802.1X Support	Yes
Wireless Security	Encryption	WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	CE 2.4GHz	<20 dBm (2.4GHz, EIRP)
Transmission Power	CE 5GHz Band 1 & 2	<23 dBm (5GHz band1 & 2, EIRP)
Transmission Power	CE 5GHz Band 3	<26 dBm (5GHz band3, EIRP)
Transmission Power	FCC 2.4GHz	<21 dBm (2.4 GHz)
Transmission Power	FCC 5GHz	<21 dBm (5 GHz)
Others	Certification	FCC, RoHS
Others	Package Content	AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
Others	Package Content	Installation Guide
Others	System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment	Operating Temperature	0–40 ℃ (32–104 ℉)
Environment	Storage Temperature	-40–70 ℃ (-40–158 ℉)
Environment	Operating Humidity	10–90% RH non-condensing
Environment	Storage Humidity	5–90% RH non-condensing
