EAP6100GP-Desktop

Kategori :

Wi-Fi 6 GPON AP
Tanyakan mengenai produk ini

Deskripsi

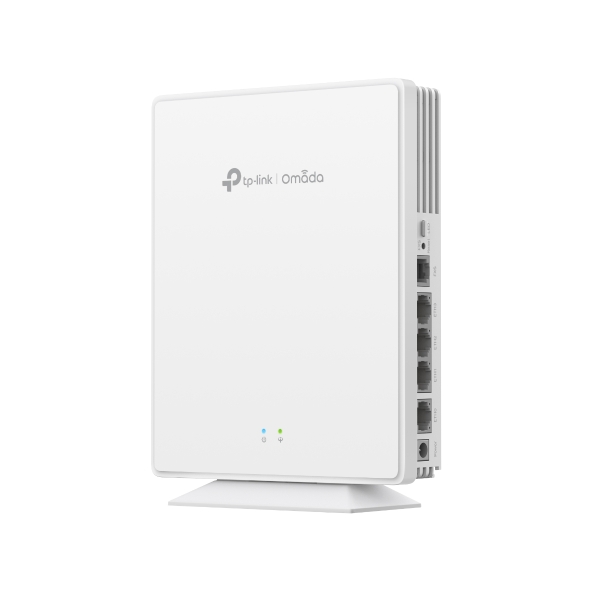

Omada AX1800 Wi-Fi 6 Desktop GPON Access Point

  • Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
  • 1× GPON Port for High-Speed and Ultra-Range Access
  • One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
  • VoIP Calls:  Support multiple VolP accounts and various call features, exceeding traditional landlines
  • Easy Use: One-Click Pairing and Automatic Adoption
  • Smart O&M: PPSK△ and Multiple Portals§
  • High Flexibility: Support both desktop and wall mounting setups
  • Advanced Functions§: Unified Management for OLT^ and Omada Devices, Omada Mesh#, and 802.11k/v/r Seamless Roaming.
FeatureSpecification
HARDWARE FEATURES - Interface1× GPON Port; 1× FXS Port; 4× Gigabit RJ45 Ports (One Supporting 802.3af PoE Out)
HARDWARE FEATURES - GPON InterfacePort Type: SC-APC; Standards and Protocols: ITU-984.x, G.988, Class B+; Data Rate: 2.488 Gbps (Downstream), 1.244 Gbps (Upstream); Fiber Type: 9/125 um Single mode; Max. Cable Length: 20 km
HARDWARE FEATURES - ButtonReset; LED
HARDWARE FEATURES - Power Supply53.5V/0.81A DC
HARDWARE FEATURES - Max. Power Consumption17.3 W (PoE Out Off)
HARDWARE FEATURES - Weight492 g
HARDWARE FEATURES - Dimensions (W x D x H)6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
HARDWARE FEATURES - AntennaInternal Omni; 2.4 GHz: 2× 5 dBi; 5 GHz: 2× 4.5 dBi
HARDWARE FEATURES - MountingDesktop / Wall mounting (Kits included)
WIRELESS FEATURES - Coverage140㎡ (1500 ft²) **
WIRELESS FEATURES - Concurrent Clients120+ *
WIRELESS FEATURES - Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
WIRELESS FEATURES - Frequency2.4 GHz and 5 GHz
WIRELESS FEATURES - Signal Rate5 GHz: 1201 Mbps †; 2.4 GHz: 574 Mbps
WIRELESS FEATURES - Wireless Functions2×2 (2.4G & 5G) MU-MIMO ‡; HE80 (80 MHz Bandwidth) ‡; OFDMA ‡; Mesh #; Seamless Roaming §; Multiple SSIDs (16 SSIDs, 8 on each band); Enable/Disable SSID Broadcast; Enable/Disable Wireless Radio; Guest Network; Automatic Channel Assignment; Beamforming; Rate Limit; Band Steering; Load Balance; Airtime Fairness; Transmit Power Control (Adjust Transmit Power on dBm); QoS (WMM); RADIUS Accounting; MAC Authentication; Reboot Schedule; Wireless Schedule and Statistics; Static IP/Dynamic IP
WIRELESS FEATURES - Wireless SecurityCaptive Portal Authentication §; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
WIRELESS FEATURES - Transmission PowerCE: <20 dBm (2.4 GHz, EIRP); <23 dBm (5 GHz, band1 & band2, EIRP); <27 dBm (5 GHz, band3, EIRP); FCC: <25 dBm (2.4 GHz); <25 dBm (5 GHz)
MANAGEMENT FEATURES - Omada AppYes
MANAGEMENT FEATURES - Centralized ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
MANAGEMENT FEATURES - Cloud AccessYes. Require the use of an Omada controller.
MANAGEMENT FEATURES - Email AlertsYes
MANAGEMENT FEATURES - LED ON/OFF ControlYes
MANAGEMENT FEATURES - Management MAC Access ControlYes
MANAGEMENT FEATURES - SNMPv1, v2c, v3
MANAGEMENT FEATURES - System Logging Local/Remote SyslogSystem Log
MANAGEMENT FEATURES - SSHYes
MANAGEMENT FEATURES - Web-based ManagementYes
MANAGEMENT FEATURES - Zero-Touch ProvisioningYes. Require the use of Omada Cloud-Based Controller.
OTHERS - CertificationCE, FCC, RoHS, IC
OTHERS - Package ContentEAP610GP-Desktop; Desktop/Wall Mounting Kit; Power Adapter; Installation Guide
OTHERS - System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
OTHERS - EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
