EAP223

Kategori :

Ceiling Mount AP
Tanyakan mengenai produk ini

Deskripsi

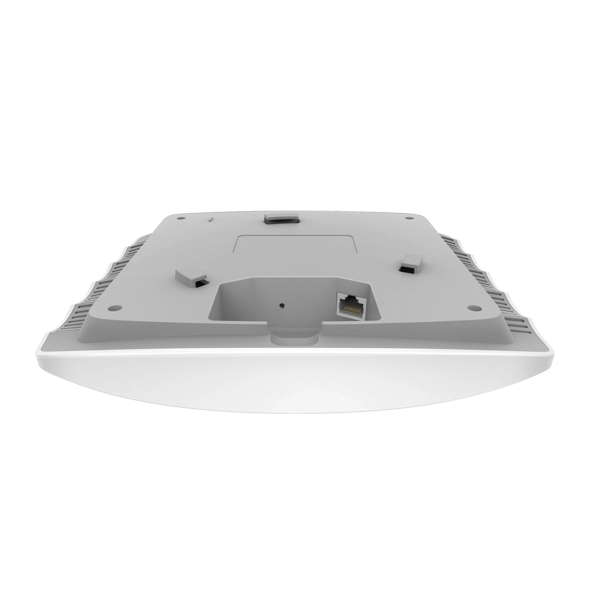

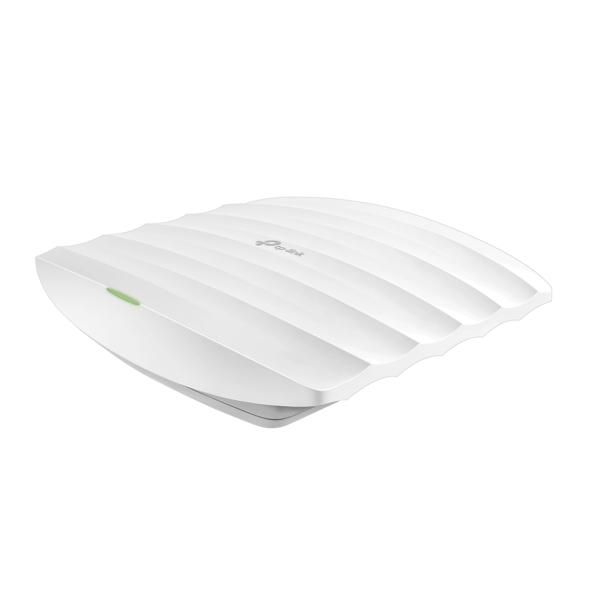

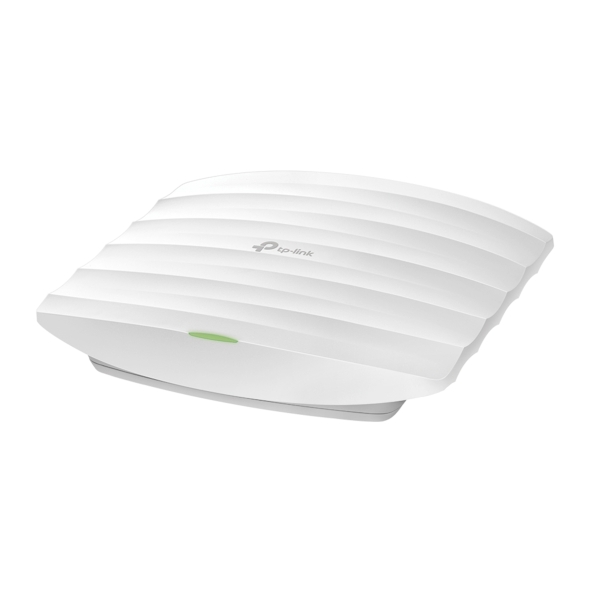

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

  • Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.†
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
  • PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter is not included) for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.
CategoryFeatureSpecification
HARDWARE FEATURESInterfaceGigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
HARDWARE FEATURESPhysical Security LockYes
HARDWARE FEATURESButtonReset
HARDWARE FEATURESPower Supply802.3af PoE; 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
HARDWARE FEATURESMax. Power Consumption12.6 W
HARDWARE FEATURESDimensions (W × D × H)8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
HARDWARE FEATURESAntenna3 Internal Omni; 2.4 GHz: 4 dBi; 5 GHz: 5 dBi
HARDWARE FEATURESMountingCeiling /Wall Mounting (kits included)
WIRELESS FEATURESCoverage115㎡(1250 ft²)§
WIRELESS FEATURESConcurrent Clients220+**
WIRELESS FEATURESWireless StandardsIEEE802.11ac/n/g/b/a
WIRELESS FEATURESFrequency2.4 GHz and 5 GHz
WIRELESS FEATURESSignal Rate5 GHz: Up to 867 Mbps; 2.4 GHz: Up to 450 Mbps
WIRELESS FEATURESWireless FunctionsMultiple SSIDs (Up to 16 SSIDs, 8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); Seamless Roaming*; Omada Mesh*; Band Steering; Load Balance; MU-MIMO; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client
WIRELESS FEATURESWireless SecurityCaptive Portal Authentication*; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support
WIRELESS FEATURESTransmission PowerCE: ≤20 dBm(2.4 GHz, EIRP), ≤23 dBm(5 GHz, EIRP); FCC: ≤24 dBm(2.4 GHz), ≤22 dBm(5 GHz)
MANAGEMENT FEATURESOmada AppYes
MANAGEMENT FEATURESCentralized ManagementOmada Hardware Controller OC300; Omada Hardware Controller OC200; Omada Software Controller; Omada Cloud-Based Controller
MANAGEMENT FEATURESCloud AccessYes, through OC300; OC200; Omada Software Controller; Omada Cloud-Based Controller
MANAGEMENT FEATURESEmail AlertsYes
MANAGEMENT FEATURESLED ON/OFF ControlYes
MANAGEMENT FEATURESManagement MAC Access ControlYes
MANAGEMENT FEATURESSNMPv1,v2c
MANAGEMENT FEATURESSystem Logging Local/Remote SyslogLocal/Remote Syslog
MANAGEMENT FEATURESSSHYes
MANAGEMENT FEATURESWeb-based ManagementHTTP/HTTPS
MANAGEMENT FEATURESL3 ManagementYes
MANAGEMENT FEATURESMulti-site ManagementYes
MANAGEMENT FEATURESManagement VLANYes
MANAGEMENT FEATURESZero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller
OTHERSCertificationCE, FCC, RoHS
OTHERSPackage ContentAC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223; Mounting Kits; Installation Guide
OTHERSSystem RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
OTHERSEnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
