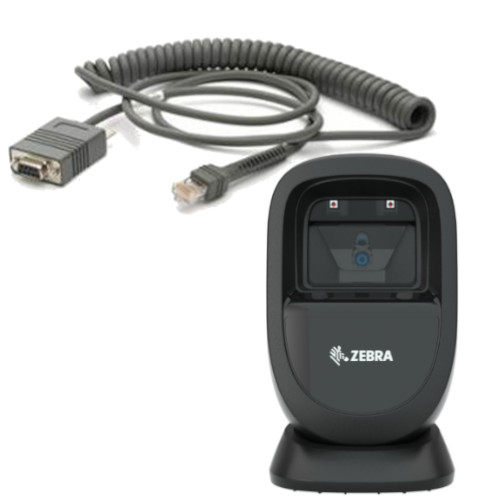

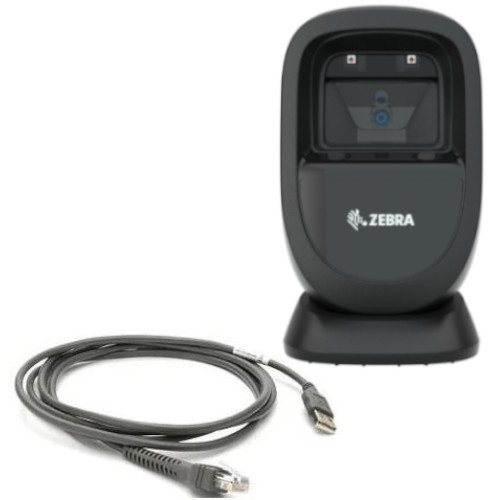

Hands-free scannerÂ
The DS9300 Series fits anywhere, scans everything, and is built for all-day reliability. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps, and spills.Â
Key FeaturesÂ
| Fitur | Spesifikasi |
| Barcode Scanner | |
| PHYSICAL | |
| Dimensions | 5.7 in. H x 3.4 in. W x 3.3 in. D; 14.5 cm H x 8.6 cm W x 8.3 cm D |
| Weight | 11.2 oz. / 318.0 g |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Current at Nominal Voltage (5.0V) | Presentation mode: 335 mA; Trigger mode: 350 mA |
| Standby Current (Idle) at Nominal Voltage (5.0V) | Presentation mode: 135 mA; Trigger mode: 75 mA |
| Color | Alpine White; Midnight Black |
| Supported Host Interfaces | USB Certified; RS232; Keyboard Wedge; TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| TAA Compliance | Trade Agreement Act Compliant (optional on select configurations) |
| Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation system |
| User Indicators | Good decode LEDs; rear view LEDs; beeper with adjustable tone and volume |
| PERFORMANCE CHARACTERISTICS | |
| Swipe Speed (Presentation) | Up to 120 in./305 cm per second for 13 mil UPC in optimized mode |
| Light Source | Aiming pattern: circular 617 nm amber LED |
| Illumination | 660 nm Hyper Red LED |
| Imager Field of View | 52° H x 33° V nominal |
| Image Sensor | 1280 x 800 pixels |
| Minimum Print Contrast | 15% |
| Skew Tolerance | +/-60° |
| Pitch Tolerance | +/-60° |
| Roll Tolerance | 360° |
| IMAGING CHARACTERISTICS | |
| Graphics Format Support | Images can be exported as bitmap, JPEG or TIFF |
| Image Quality | 109 PPI on a 4.1 in. x 5.8 in./A6 sized document |
| USER ENVIRONMENT | |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete |
| Tumble Specification | Designed to withstand 1,000 tumbles in 1.5 ft. / 0.5 m tumbler |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect |
| Ambient Light Immunity | 0 to 10,000 foot-candles / 0 to 107,700 Lux |
| REGULATORY | |
| Environmental Compliance | EN 50581:2012; RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000; REACH 1907/2006 |
| Electrical Safety | IEC 62368-1 2nd ed.; EN 62368-1:2014/AC:2015; UL/IEC 60950-1, 2nd ed.; CAN/CSA C22.2 No.60950-1, 2nd ed. |
| LED Safety | IEC 62471:2006 (Ed.1.0); EN 62471:2008 (LED) |
| EMI/RFI | FCC 47 CFR Part 15B; ICES-003; EN55032; EN55024; EN55035; VCCI; SABS |
| ACCESSORIES | |
| Accessories | Multi-mount bracket; locking-mount bracket |
| SYMBOL DECODE CAPABILITY | |
| 1D | Code 39; Code 128; Code 93; Codabar/NW7; Code 11; MSI Plessey; UPC/EAN; I 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32 (Italian Pharma) |
| 2D | PDF417; Micro PDF417; Composite Codes; TLC-39; Aztec; DataMatrix; MaxiCode; QR Code; Micro QR; Han Xin; Postal Codes; securPharm; DotCode; Dotted DataMatrix |
| OCR | OCR-A; OCR-B; MICR; US currency |
| Digimarc | Available on specific models only |
| Minimum Element Resolution | Code 39: 3 mil; Code 128: 3 mil; Data Matrix: 5 mil; QR Code: 5 mil |
