DS8108-HC

Kategori :

Barcode Scanner
Tanyakan mengenai produk ini

Deskripsi

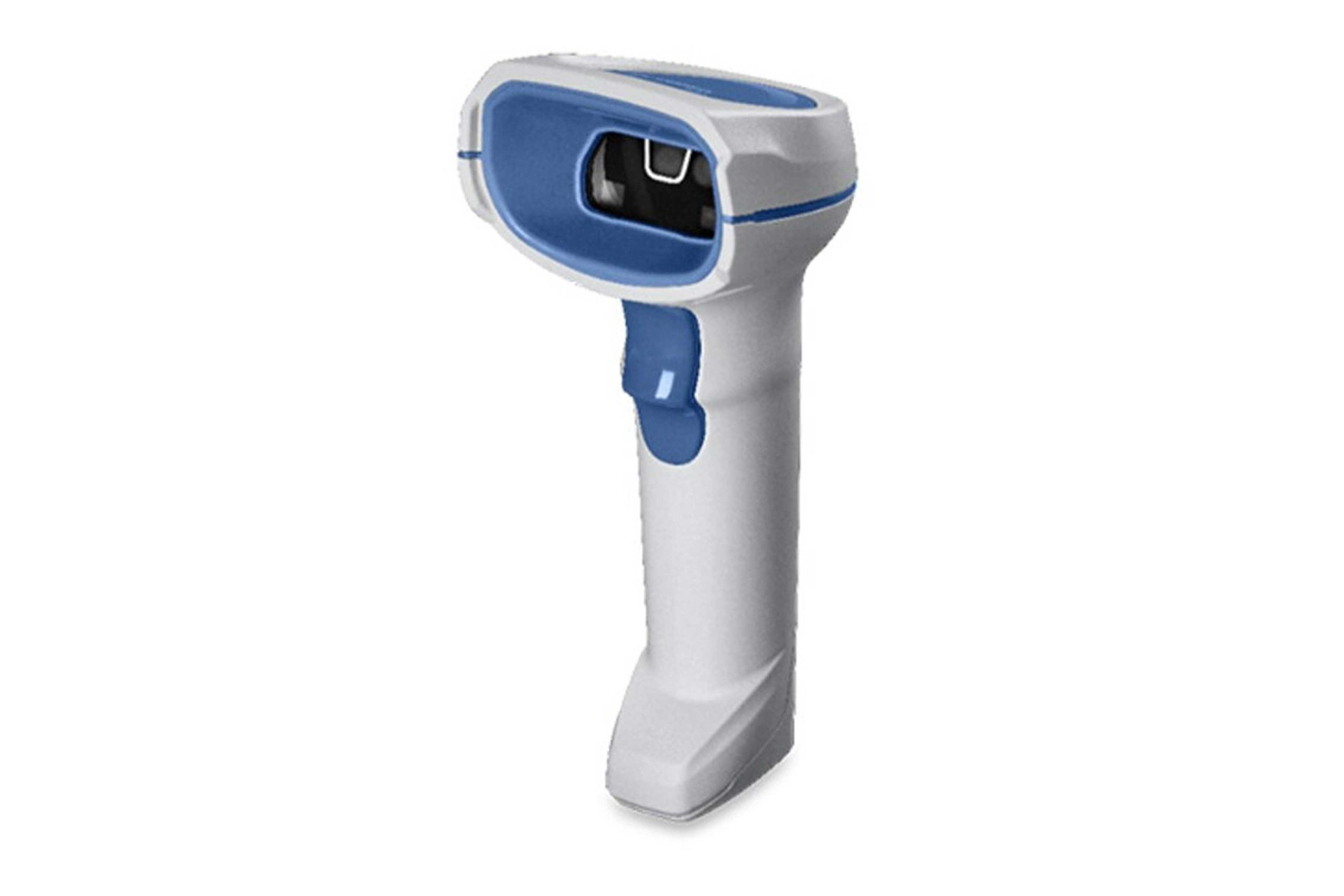

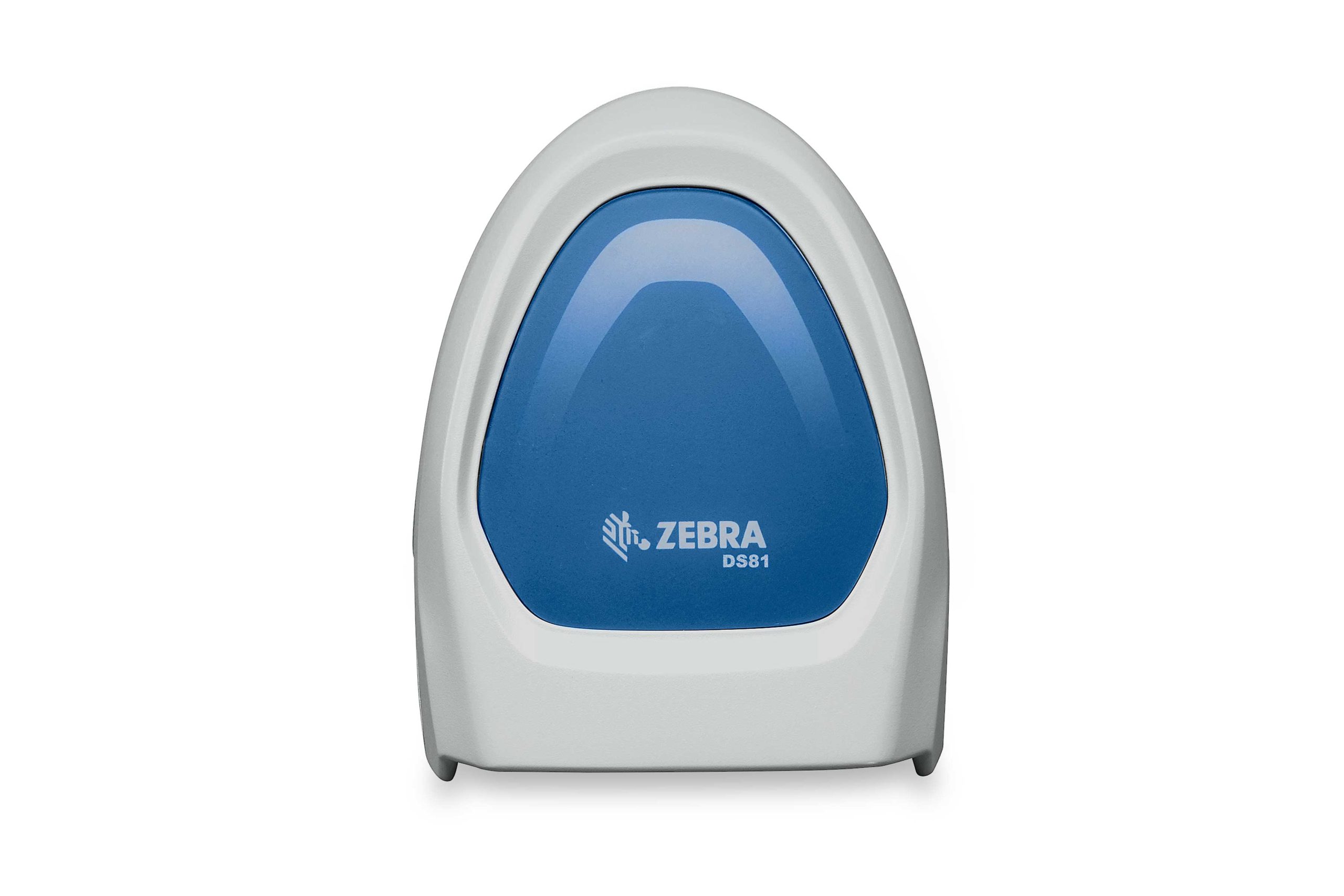

Healthcare Scanner

Zebra's premium DS8108-HC corded scanner is purpose-built for healthcare environments and clinician workflows. With unparalleled performance to read the toughest barcodes in any condition, clinicians can stay focused on patient care.

In the Box

  • DS8108-HC Corded Handheld healthcare scanner
  • USB cable

Key Features

  • Scan Type: 2D, 1D
  • Image Sensor: 1280x960 pixels
  • Scan Range: High Density
  • Corded/Cordless: Corded

Commonly Used For

  • Bedside Point of Care
  • Electronic Patient and Medical Record Access and Identification
FeatureSpecification
DimensionsDS8108-HC / DS8178-HC: 6.6x2.6x4.2 in (16.8x6.6x10.7 cm); Standard Cradle: 2.8x3.3x8.3 in; Presentation Cradle: 2.9x3.7x4.8 in
WeightDS8108-HC 154 g; DS8178-HC 235.3 g; Cradles 202 g / 182 g
Input Voltage RangeDS8108-HC 4.5–5.5VDC; DS8178-HC cradle 5V 4.7–5.5V or 12V 10.8–13.2V
CurrentDS8108-HC 450 mA; cradle 470 mA USB / 743 mA 12V
ColorHealthcare White
InterfacesUSB Certified; RS232; Keyboard Wedge; IBM 46XX over RS485
Keyboard Support90+ international keyboards
FIPS CertificationFIPS 140-2 compliant
Apple MFiMFi certified (DS8178-HC cordless)
IndicatorsDecode LED; rear LEDs; beeper; charge gauge
Light Source528 nm true green aiming pattern
Illumination2x warm white LEDs
Sensor1280 x 960 pixels
Field of View48° x 37°
Contrast16% minimum
Skew/Pitch/Roll±60° / ±60° / 0–360°
Image FormatsBitmap; JPEG; TIFF
Image Quality109 PPI A4
ResolutionCode39 3.0 mil; Code128 3.0 mil; DataMatrix 5.0 mil; QR 5.0 mil; PDF 4.0 mil
1D CodesCode 39, Code 128, Code 93, Codabar, Code 11, MSI, UPC/EAN, GS1 DataBar
2D CodesPDF417, MicroPDF417, Aztec, DataMatrix, QR, MaxiCode, Han Xin
WarrantyDS8178-HC / CR8178-HC: 3 years; DS8108-HC: 5 years
