Handheld ScannerÂ

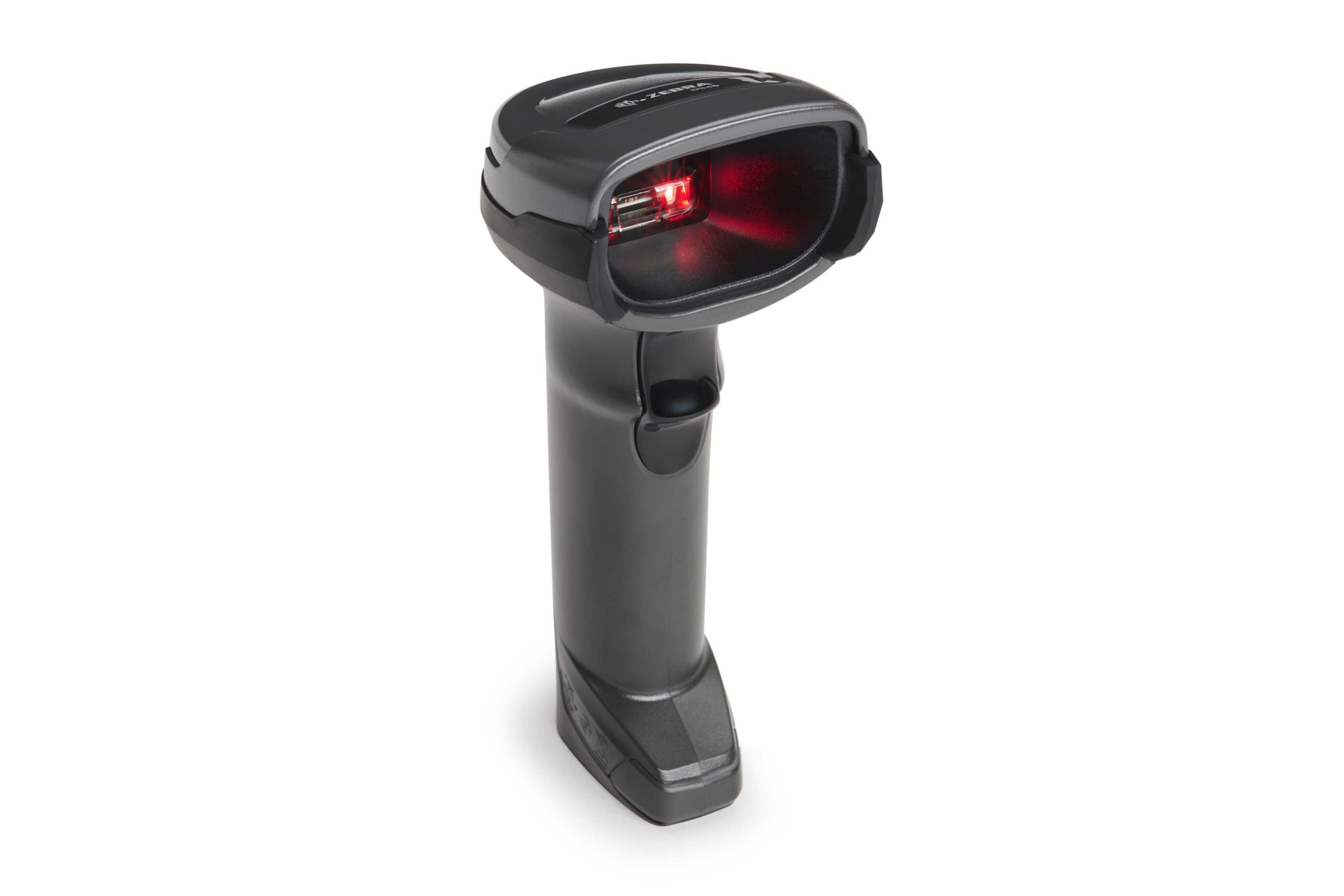

The cordless DS4678 offers the versatility and scanning performance to scan items of all sizes, read barcodes in nearly any condition and handle a wide range of transactions. Bulky items in a shopping cart, a customer's driver's license, a mobile coupon, tiny barcodes in the Jewelry department-the DS4678 can capture them all. It delivers over 13 hours of continuous scanning on a single charge, with a compact Presentation cradle to fit any point of sale.Â
Key FeaturesÂ
In the BoxÂ
Commonly Used ForÂ
| Parameter / Feature | Specification Details |
| PHYSICAL - Dimensions (DS4608 Corded) | 6.5 in. H x 2.6 in. W x 3.9 in. D (16.5 cm H x 6.7 cm W x 9.8 cm D) |
| PHYSICAL - Dimensions (DS4678 Cordless) | 6.6 in. H x 2.6 in. W x 4.2 in. D (16.8 cm H x 6.6 cm W x 10.7 cm D) |
| PHYSICAL - Dimensions (Standard Cradle) | 2.8 in. H x 3.3 in. W x 8.3 in. D (7.1 cm H x 8.4 cm W x 21.1 cm D) |
| PHYSICAL - Dimensions (Presentation Cradle) | 2.8 in. H x 3.3 in. W x 8.3 in. D (7.1 cm H x 8.4 cm W x 21.1 cm D) |
| PHYSICAL - Weight (Corded / Cordless) | Corded: 5.7 oz (161.9g) | Cordless: 7.9 oz (225g) |
| PHYSICAL - Weight (Cradles) | Standard Cradle: 7.1 oz (201.3g) | Presentation Cradle: 6.5 oz (184.3g) |
| PHYSICAL - Input Voltage Range (Corded) | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| PHYSICAL - Input Voltage Range (Cradles) | 4.7 to 5.5 VDC Host Powered; 10.8 to 13.2 VDC External Power Supply |
| PHYSICAL - Operating Current (Corded) | 340 mA (typical) |
| PHYSICAL - Operating Current (Cradles) | 470 mA (typical) Standard USB; 743 mA (typical) 12V |
| PHYSICAL - Standby Current (Corded) | 150 mA (typical) |
| PHYSICAL - Color Options | Nova White (corded only), Twilight Black |
| PHYSICAL - Supported Host Interfaces | USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| PHYSICAL - Keyboard Support | Supports over 90 international keyboards |
| PHYSICAL - TAA Compliance | Trade Agreement Act Compliant |
| PHYSICAL - Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation system |
| PHYSICAL - User Indicators | Direct Decode Indicator, Good Decode LEDs, Rear view LEDs, Beeper (adjustable tone and volume) |
| PERFORMANCE - Light Source | Aiming Pattern: circular 617nm amber LED |
| PERFORMANCE - Illumination | (2) 660nm red LEDs |
| PERFORMANCE - Imager Field of View | 31.6° H x 22.6° V nominal |
| PERFORMANCE - Image Sensor | 1280 x 800 pixels |
| PERFORMANCE - Minimum Print Contrast | 15% minimum reflective difference |
| PERFORMANCE - Skew / Pitch / Roll Tolerance | +/- 60°, +/- 60°, 0°–360° |
| IMAGING - Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
| IMAGING - Image Quality | 96PPI on an A4 document (DS4600-SR) |
| DECODE - 1D Symbologies | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| DECODE - 2D Symbologies | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix |
| DECODE - OCR Capabilities | OCR-A, OCR-B, MICR, US Currency |
| DECODE - Minimum Element Resolution | Code 39: 3.0 mil (DS4600-SR) / 2.0 mil (DS4600-HD) | DataMatrix: 5.0 mil (DS4600-SR) / 4.0 mil (DS4600-HD) |
