Handheld ScannerÂ

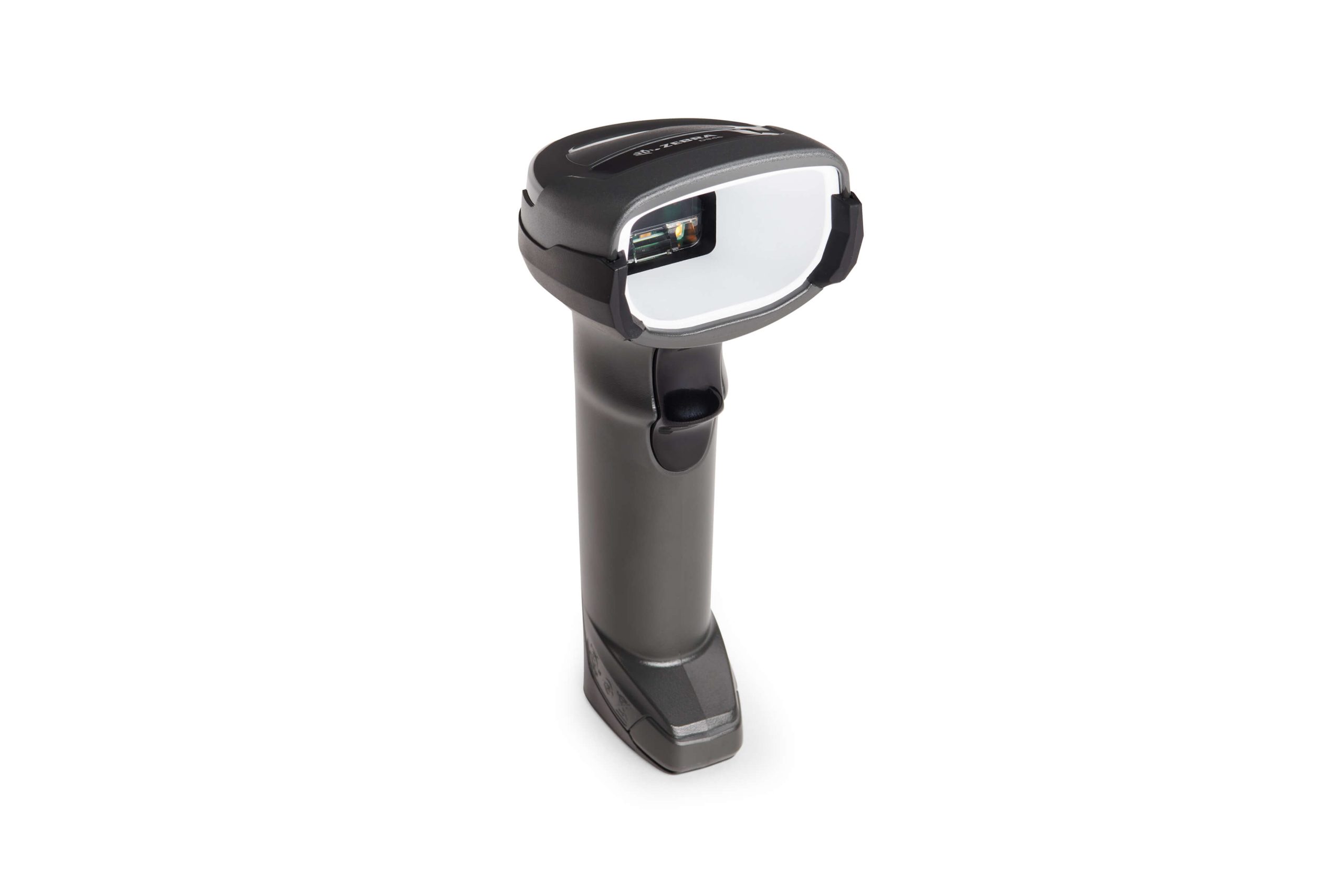

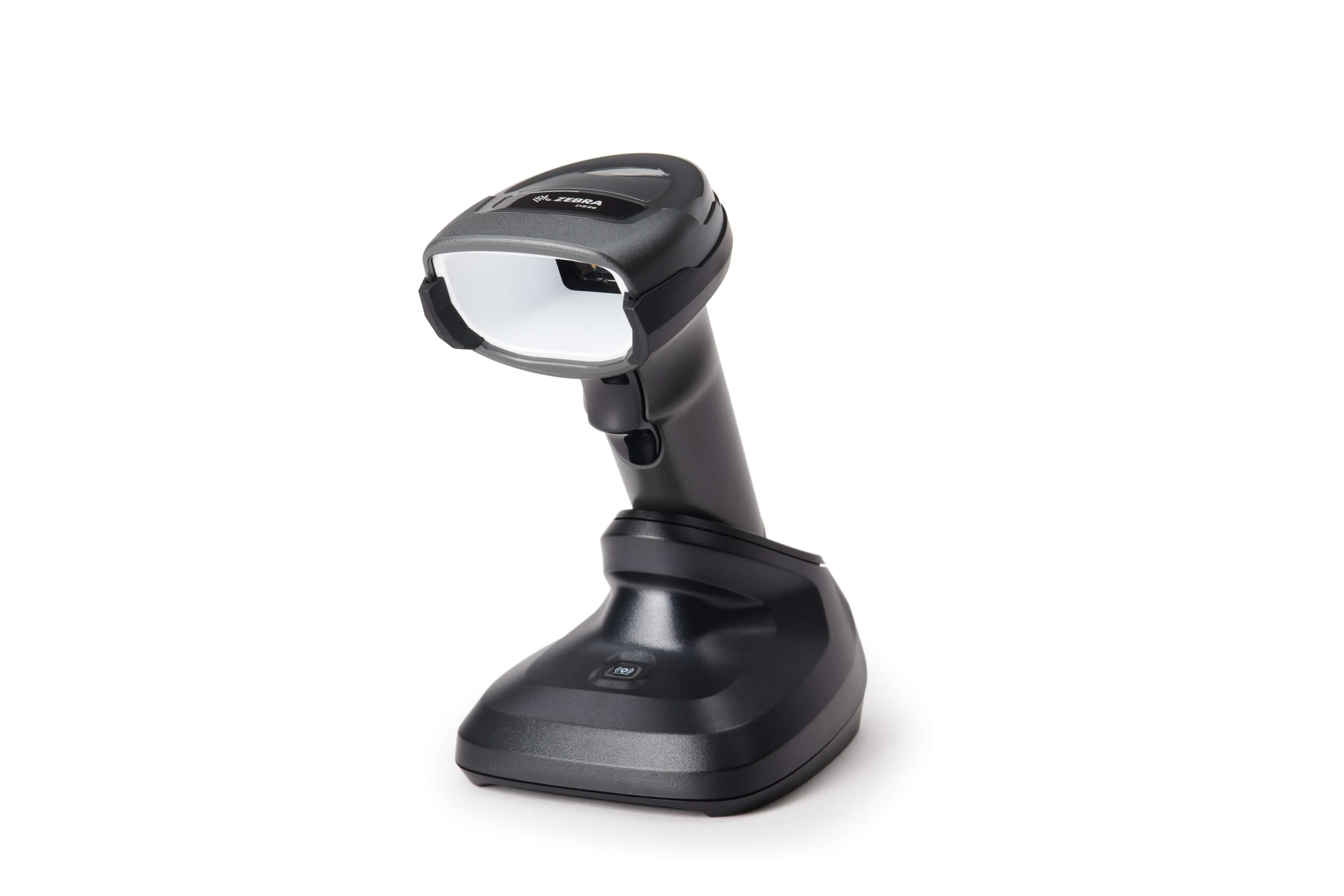

The cordless DS4678-DPE is purpose built to capture whatever type of barcodes are found in your electronics manufacturing operations-from laser etched direct part marks, high density and low contrast codes, to 4-inch wide barcodes. It's battery delivers more than 50,000 scans in a single charge.Â
Key FeaturesÂ
In the BoxÂ
Commonly Used ForÂ
| Parameter / Feature | Specification Details |
| PHYSICAL - Dimensions (DS4608-DPE Corded) | 6.5 in H x 2.6 in W x 3.9 in D (16.5cm H x 6.7cm W x 9.8cm D) |
| PHYSICAL - Dimensions (DS4678-DPE Cordless) | 6.6 in H x 2.6 in W x 4.2 in D (16.8cm H x 6.6cm W x 10.7cm D) |
| PHYSICAL - Dimensions (Standard Cradle) | 2.8 in H x 3.3 in W x 8.3 in D (7.1cm H x 8.4cm W x 21.1cm D) |
| PHYSICAL - Dimensions (Presentation Cradle) | 2.8 in H x 3.3 in W x 8.3 in D (7.1cm H x 8.4cm W x 21.1cm D) |
| PHYSICAL - Weight (Corded / Cordless) | Corded: 5.7 oz (161.9g) | Cordless: 7.9 oz (225g) |
| PHYSICAL - Weight (Cradles) | Standard Cradle: 7.1 oz (201.3g) | Presentation Cradle: 6.5 oz (184.3g) |
| PHYSICAL - Input Voltage Range (Corded) | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| PHYSICAL - Input Voltage Range (Cradles) | 4.7 to 5.5 VDC Host Powered; 10.8 to 13.2 VDC External Power Supply |
| PHYSICAL - Operating Current (Corded) | 340 mA (typical) |
| PHYSICAL - Operating Current (Cradles) | 470 mA (typical) Standard USB; 743 mA (typical) 12V |
| PHYSICAL - Standby Current (Corded) | 150 mA (typical) |
| PHYSICAL - Color Options | Twilight Black |
| PHYSICAL - Supported Host Interfaces | USB, RS232, TGCS (IBM) 46XX over RS485 |
| PHYSICAL - Keyboard Support | Supports over 90 international keyboards |
| PHYSICAL - User Indicators | Direct Decode Indicator, Good Decode LEDs, Rear view LEDs, Beeper (adjustable tone/volume), haptic/vibration |
| PERFORMANCE - Light Source | Aiming Pattern: circular 528nm true green LED |
| PERFORMANCE - Illumination | (2) warm white LEDs |
| PERFORMANCE - Imager Field of View | 34° H x 21.6° V nominal |
| PERFORMANCE - Image Sensor | 1280 x 800 pixels |
| PERFORMANCE - Minimum Print Contrast | 15% minimum reflective difference |
| PERFORMANCE - Skew / Pitch / Roll Tolerance | +/- 60°, +/- 60°, 0°–360° |
| IMAGING - Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
| DECODE - 1D Symbologies | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| DECODE - 2D Symbologies | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, DotCode, Dotted DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm |
| DECODE - Minimum Element Resolution | Code 39 – 2.0 mil | DataMatrix – 4.0 mil |
