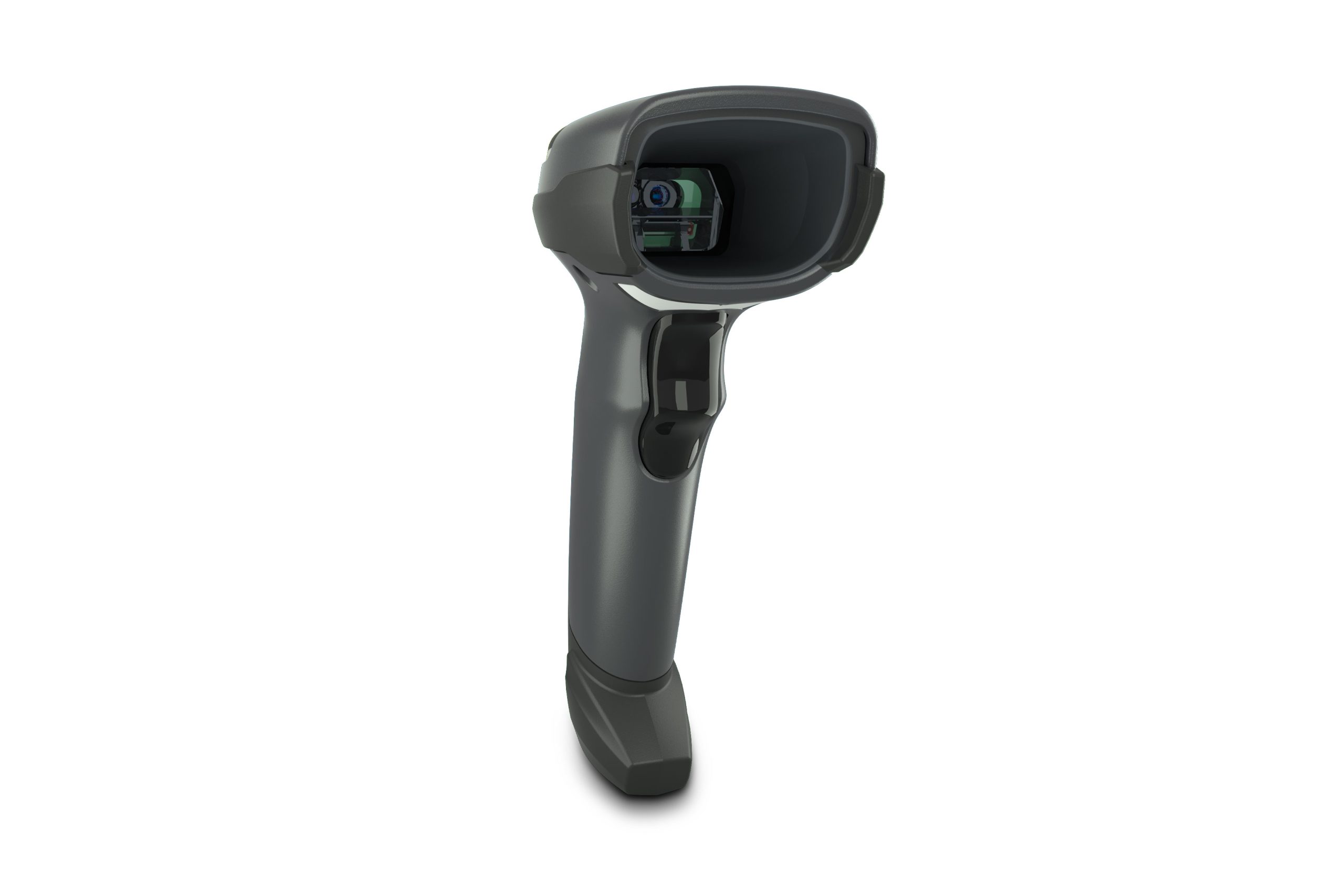

Handheld ScannerÂ
With the DS4600 Series for retail, you get a wide range of productivity-enhancing innovation to streamline more transactions and tasks throughout the store. Scan multiple barcodes with a single trigger pull or automatically single out and scan one barcode on a field of many. You can capture data from travel documents with OCR. And there’s optional support for U.S. driver’s license parsing and EAS tag deactivation.Â
Key FeaturesÂ
In the BoxÂ
Commonly Used ForÂ
| Parameter / Feature | Specification Details |
| PHYSICAL - Dimensions (DS4608 Corded) | 6.5 in. H x 2.6 in. W x 3.9 in. D (16.5 cm H x 6.7 cm W x 9.8 cm D) |
| PHYSICAL - Dimensions (DS4678 Cordless) | 6.6 in. H x 2.6 in. W x 4.2 in. D (16.8 cm H x 6.6 cm W x 10.7 cm D) |
| PHYSICAL - Dimensions (Standard Cradle) | 2.8 in. H x 3.3 in. W x 8.3 in. D (7.1 cm H x 8.4 cm W x 21.1 cm D) |
| PHYSICAL - Dimensions (Presentation Cradle) | 2.8 in. H x 3.3 in. W x 8.3 in. D (7.1 cm H x 8.4 cm W x 21.1 cm D) |
| PHYSICAL - Weight (Corded / Cordless) | Corded: 5.7 oz (161.9g) | Cordless: 7.9 oz (225g) |
| PHYSICAL - Weight (Cradles) | Standard Cradle: 7.1 oz (201.3g) | Presentation Cradle: 6.5 oz (184.3g) |
| PHYSICAL - Input Voltage Range (Corded) | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| PHYSICAL - Input Voltage Range (Cradles) | 4.7 to 5.5 VDC Host Powered; 10.8 to 13.2 VDC External Power Supply |
| PHYSICAL - Operating Current (Corded) | 340 mA (typical) |
| PHYSICAL - Operating Current (Cradles) | 470 mA (typical) Standard USB; 743 mA (typical) 12V |
| PHYSICAL - Standby Current (Corded) | 150 mA (typical) |
| PHYSICAL - Color Options | Nova White (corded only), Twilight Black |
| PHYSICAL - Supported Host Interfaces | USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| PHYSICAL - Keyboard Support | Supports over 90 international keyboards |
| PHYSICAL - TAA Compliance | Trade Agreement Act Compliant |
| PHYSICAL - Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation system |
| PHYSICAL - User Indicators | Direct Decode Indicator, Good Decode LEDs, Rear view LEDs, Beeper (adjustable tone/volume) |
| PERFORMANCE - Light Source | Aiming Pattern: circular 617nm amber LED |
| PERFORMANCE - Illumination | (2) 660nm red LEDs |
| PERFORMANCE - Imager Field of View | 31.6° H x 22.6° V nominal |
| PERFORMANCE - Image Sensor | 1280 x 800 pixels |
| PERFORMANCE - Minimum Print Contrast | 15% minimum reflective difference |
| PERFORMANCE - Skew / Pitch / Roll Tolerance | +/- 60°, +/- 60°, 0°–360° |
| IMAGING - Graphics Format Support | Bitmap, JPEG, TIFF |
| IMAGING - Image Quality | 96PPI on an A4 document (DS4600-SR) |
| DECODE - 1D Symbologies | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| DECODE - 2D Symbologies | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix |
| DECODE - OCR Capabilities | OCR-A, OCR-B, MICR, US Currency |
| DECODE - Minimum Element Resolution | Code 39: 3.0 mil (DS4600-SR) / 2.0 mil (DS4600-HD) | DataMatrix: 5.0 mil (DS4600-SR) / 4.0 mil (DS4600-HD) |
