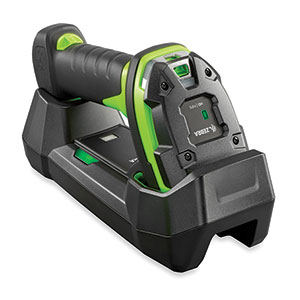

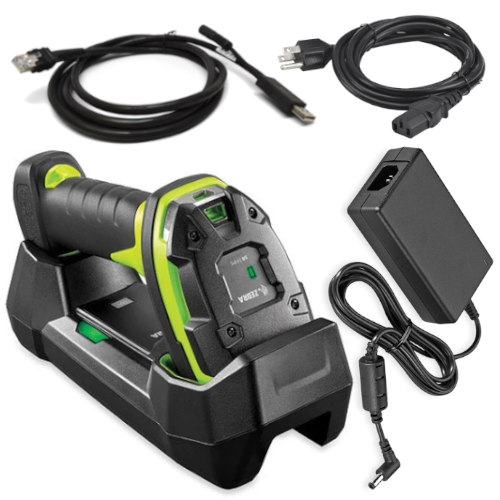

Zebra DS3678-SR Ultra-Rugged 1D/2D Wireless Barcode Scanner

The DS3608-DP/DS3678-DP Ultra-Rugged Scanner delivers unstoppable performance for direct part marks (DPM) and 1D/2D barcodes. The ultimate in data capture flexibility, the DS3608-DP/DS3678-DP is available in a cordless model that allows the elimination of hazardous cable in aisles.

Key Features:

  • Comprehensive patented features enable the capture of literally every type of direct part mark (DPM) and printed 1D/2D barcode.
  • The DS3608-DP/DS3678-DP is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-DP/ DS3678-DP is built to survive an 8 ft./2.4 m drop to concrete — 23 percent more durable than any other scanner in this class. The scanners operate reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop.
  • Built to handle extreme cold, heat and humidity, you can use the DS3608-DP and DS3678-DP anywhere — even in the freezer.
  • Bluetooth 4.0 (Low Energy) provides lightning fast wireless communication and maximum energy efficiency.
  • Zebra’s Network Connect for Automation delivers a seamless connection between DS3608-DP/DS3678-DP scanners and a manufacturer’s Industrial Ethernet network without the need for third party conversion equipment.
FiturSpesifikasi
Zebra DS3608-DP / DS3678-DP
PHYSICAL
Dimensions - Corded7.3 in. H x 3.0 in. W x 5.2 in. D; 18.5 cm H x 7.7 cm W x 13.2 cm D
Dimensions - Cordless7.3 in. H x 3.0 in. W x 5.6 in. D; 18.5 cm H x 7.7 cm W x 14.3 cm D
Weight - Corded10.72 oz. / 304 g
Weight - Cordless14.18 oz. / 402 g
Input Voltage RangeHost powered: 4.5 VDC min., 5.5 VDC max.; External power supply: 11.4 VDC min., 12.6 VDC max.
Operating CurrentDS3608-DP (corded): 360 mA (RMS typical)
Standby CurrentDS3608-DP (corded): 100 mA (RMS typical)
ColorIndustrial Green
Supported Host InterfacesUSB, RS232, Keyboard Wedge
BatteryPowerPrecision+ 3100 mAh Li-Ion rechargeable battery
User IndicatorsDirect decode indicator; LEDs; beeper; vibration
PERFORMANCE CHARACTERISTICS
Scans per Full Charge100,000+
Image CaptureBasic
IlluminationDirect: Two (2) warm white light LEDs
Aimer655 nm laser
Imager Field of ViewHorizontal: 31°; Vertical: 23°
Image Sensor1,280 x 960 pixels
Minimum Print Contrast15% minimum reflective difference
Skew/Pitch/RollSkew: ± 60°; Pitch: ± 60°; Roll: ± 360°
DECODE CAPABILITIES
1DCode 39; Code 128; Code 93; Codabar/NW7; Code 11; MSI Plessey; UPC/EAN; I 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32 (Italian Pharma)
2DPDF417; Micro PDF417; Composite Codes; TLC-39; Aztec; DataMatrix; MaxiCode; QR Code; Micro QR; Chinese Sensible (Han Xin); Postal Codes
IUID SupportSupports IUID parsing, including the ability to read and separate IUID fields per application requirements
USER ENVIRONMENT
Operating Temperature - Corded-22° F to 122° F / -30° C to 50° C
Operating Temperature - Cordless-4° F to 122° F / -20° C to 50° C
Storage Temperature-40° F to 158° F / -40° C to 70° C
Humidity5% to 95% non-condensing
Drop SpecificationWithstands multiple 8.0 ft. / 2.4 m drops to concrete
Tumble Specification5,000 tumbles @ 3.3 ft. (1 m)
SealingScanner: IP65 and IP67; FLB cradle: IP65
ESDPer EN61000-4-2, ±20 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
Ambient Light Immunity0 to 10,037 Foot Candles / 0 to 108,000 Lux (direct sunlight)
UTILITIES AND MAINTENANCE
123ScanPrograms scanner parameters, upgrades firmware, provides scanned barcode data and prints reports.
Scanner SDKGenerates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code.
Scanner Management Service (SMS)Remotely manages Zebra scanner and queries its asset information.
Network ConnectConnects 3600 Series scanners directly to an Industrial Ethernet network without third-party conversion equipment.
WIRELESS CONNECTIVITY
Bluetooth RadioBluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
Data Rate3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth; 1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio RangeDirect line of sight in open air: Class 1 minimum 300 ft. (100.0 m); Class 2 minimum 30 ft. (10.0 m)
REGULATORY
EnvironmentalRoHS EN 50581:2012
Electrical SafetyEU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013; US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
Laser/LED SafetyExempt Risk Group LED per IEC/EN 62471 (Ed 1); Class 2 Laser per IEC/EN 60825-1 (Ed 3); Complies with 21CFR1040.10
EMI/RFIIT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B; Digital Apparatus: ICES-003 Issue 5, Class B
