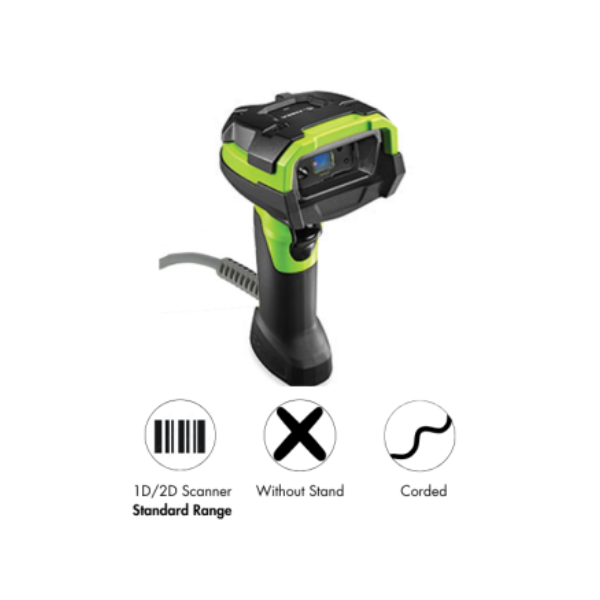

Zebra DS3608-SR Barcode Scanner Corded 2D Cable OnlyÂ
The Zebra DS3608-SR and DS3678-SR Ultra-Rugged Scanners are designed for unstoppable performance in demanding environments, perfect for warehouse and manufacturing operations. These advanced 1D/2D barcode scanners deliver lightning-fast capture over a range of nearly 5 ft. (1.5 m) and excel at reading barcodes under various conditions—whether printed or displayed on a screen. With their ultra-rugged design, these scanners can withstand drops, tumbles, and harsh environmental conditions, ensuring maximum productivity for your workforce.Â
Key FeaturesÂ
SpecificationsÂ
| Fitur | Spesifikasi |
| Zebra DS3608-DP / DS3678-DP | |
| PHYSICAL | |
| Dimensions - Corded | 7.3 in. H x 3.0 in. W x 5.2 in. D; 18.5 cm H x 7.7 cm W x 13.2 cm D |
| Dimensions - Cordless | 7.3 in. H x 3.0 in. W x 5.6 in. D; 18.5 cm H x 7.7 cm W x 14.3 cm D |
| Weight - Corded | 10.72 oz. / 304 g |
| Weight - Cordless | 14.18 oz. / 402 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max.; External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current | DS3608-DP (corded): 360 mA (RMS typical) |
| Standby Current | DS3608-DP (corded): 100 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces | USB; RS232; Keyboard Wedge |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
| PERFORMANCE CHARACTERISTICS | |
| Scans per Full Charge | 100,000+ |
| Image Capture | Basic |
| Illumination | Direct: Two (2) warm white light LEDs |
| Aimer | 655 nm laser |
| Imager Field of View | Horizontal: 31°; Vertical: 23° |
| Image Sensor | 1,280 x 960 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ±60°; Pitch: ±60°; Roll: ±360° |
| DECODE CAPABILITIES | |
| 1D | Code 39; Code 128; Code 93; Codabar/NW7; Code 11; MSI Plessey; UPC/EAN; I 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32 (Italian Pharma) |
| 2D | PDF417; Micro PDF417; Composite Codes; TLC-39; Aztec; DataMatrix; MaxiCode; QR Code; Micro QR; Chinese Sensible (Han Xin); Postal Codes |
| IUID Support | Supports IUID parsing, including the ability to read and separate IUID fields per application requirements |
| USER ENVIRONMENT | |
| Operating Temperature - Corded | -22° F to 122° F / -30° C to 50° C |
| Operating Temperature - Cordless | -4° F to 122° F / -20° C to 50° C |
| Storage Temperature | -40° F to 158° F / -40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete |
| Tumble Specification | 5,000 tumbles @ 3.3 ft. (1 m) |
| Sealing | Scanner: IP65 and IP67; FLB cradle: IP65 |
| ESD | Per EN61000-4-2, ±20 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,037 Foot Candles / 0 to 108,000 Lux (direct sunlight) |
| UTILITIES AND MAINTENANCE | |
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. |
| Scanner SDK | Generates a fully featured scanner application, including documentation, drivers, test utilities and sample source code. |
| Scanner Management Service (SMS) | Remotely manages Zebra scanner and queries its asset information. |
| Network Connect | Connects 3600 Series scanners directly to an Industrial Ethernet network without third-party conversion equipment. |
| WIRELESS CONNECTIVITY | |
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth; 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air: Class 1 minimum 300 ft. (100.0 m); Class 2 minimum 30 ft. (10.0 m) |
| REGULATORY | |
| Environmental | RoHS EN 50581:2012 |
| Electrical Safety | EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013; US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 |
| Laser/LED Safety | Exempt Risk Group LED per IEC/EN 62471 (Ed 1); Class 2 Laser per IEC/EN 60825-1 (Ed 3); Complies with 21CFR1040.10 |
| EMI/RFI | IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B; Digital Apparatus: ICES-003 Issue 5, Class B |
