5GHz AC 867Mbps 23dBi Outdoor CPEÂ
| Feature | Specification |
| HARDWARE FEATURES - Processor | Qualcomm 750MHz CPU, MIPS 74Kc |
| HARDWARE FEATURES - Memory | 128 MB DDR2 RAM, 16 MB Flash |
| HARDWARE FEATURES - Interface | 1× 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE); 1× Reset Button |
| HARDWARE FEATURES - Power Supply | Passive Power over Ethernet via LAN (+4,5 pins; -7,8 pins); Voltage range: 16-27V DC |
| HARDWARE FEATURES - Dimensions (W x D x H) | 366 × 280 × 207 mm (14.4 × 11.0 × 8.1 in.) |
| HARDWARE FEATURES - Antenna Gain | 23 dBi |
| HARDWARE FEATURES - Antenna Beamwidth | 9° (Azimuth) / 7° (Elevation) |
| HARDWARE FEATURES - Protection | 15 KV ESD Protection; 6 KV Lightning Protection |
| HARDWARE FEATURES - Enclosure | Material: Outdoor PC stabilized plastic; Weatherproof: IP65 water and dust proof design |
| WIRELESS FEATURES - Wireless Standards | IEEE 802.11a/n/ac |
| WIRELESS FEATURES - Wireless Speeds | Up to 173.4 Mbps (20 MHz, Dynamic) |
| WIRELESS FEATURES - Frequency | 5.85 GHz |
| WIRELESS FEATURES - Transmission Power | 12 dBm (+/- 2dBm) |
| SOFTWARE FEATURES - Network Configuration | WAN: Static/Dynamic/PPPoE; LAN: Static/Dynamic/DHCP; Forwarding: ALG/UPnP/Virtual Server/Port Trigger; Security: SPI Firewall/Ping Forbidden/DoS Protection; Access Control; Static Routing; Bandwidth Control; IP & MAC Binding |
| SOFTWARE FEATURES - Wireless Configurations | Selectable Channel Width: 20/40/80MHz (Depend on Country Regulation); Auto Channel Selection; Transmit Power Control; Dynamic Frequency Selection (DFS); WDS Enable/Disable; Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; SSID Broadcast Enable/Disable; Multi-SSID with VLAN Tagging (AP Mode only); Distance/ACK Timeout Setting; Wireless MAC Address Filter; Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia; Long Range PtP |
| SOFTWARE FEATURES - Management Features | Discovery and Remote Management via Pharos Control application; HTTP/HTTPS Web-based management; System log; SNMP Agent (v2c); Ping Watch Dog; Dynamic DDNS; SSH Server |
| SOFTWARE FEATURES - System Tools | Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory; Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP; Spectrum Analyzer; Speed Test; Ping; Traceroute; Antenna Alignment |
| SOFTWARE FEATURES - System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications |
| POE ADAPTER FEATURES - Dimensions (W x D x H) | 85.8 × 43.9 × 29.7 mm |
| POE ADAPTER FEATURES - Interfaces | 1× AC Jack with Earth Ground; 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data); 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
| POE ADAPTER FEATURES - Button | Remote Reset Button |
| POE ADAPTER FEATURES - Power Status LEDs | Green |
| POE ADAPTER FEATURES - Input | 100-240VAC, 50/60Hz |
| POE ADAPTER FEATURES - Output | 24VDC, 0.5A Max; +4, 5 pins; -7, 8 pins (Support up to 60m Power over Ethernet) |
| POE ADAPTER FEATURES - Efficiency | >84.29% |
| POE ADAPTER FEATURES - Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS - Certification | CE, FCC, RoHS, IP65, IC |

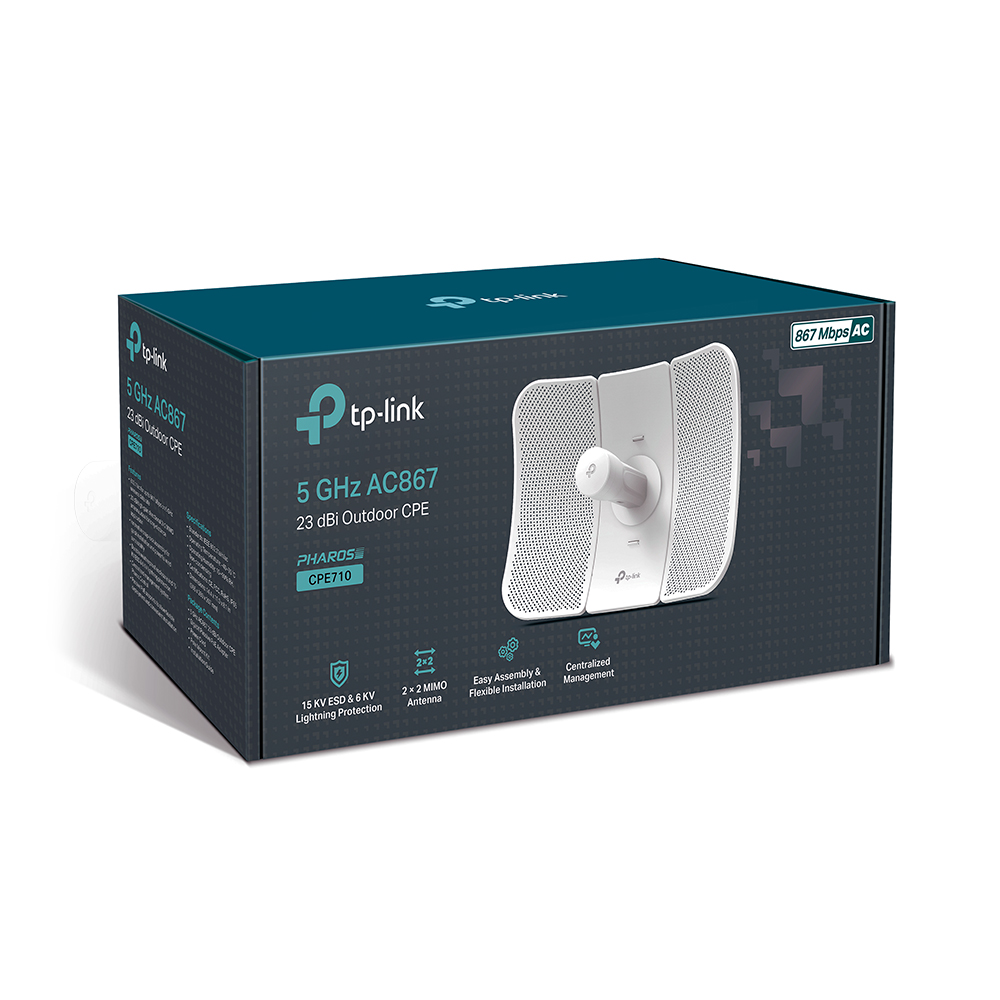

| OTHERS - Package Content | Outdoor Wireless CPE; 24V 0.5A Passive PoE Adapter; Pole Mounting Kits; AC Power Cord; Installation Guide |
| OTHERS - System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢, Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| OTHERS - Browser Note | We recommend using one of the following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| OTHERS - Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~95% non-condensing |
