TL-SG1218MP

Kategori :

Computer Networking
Tanyakan mengenai produk ini

Deskripsi

18-Port Gigabit Rackmount Switch with 16 PoE+

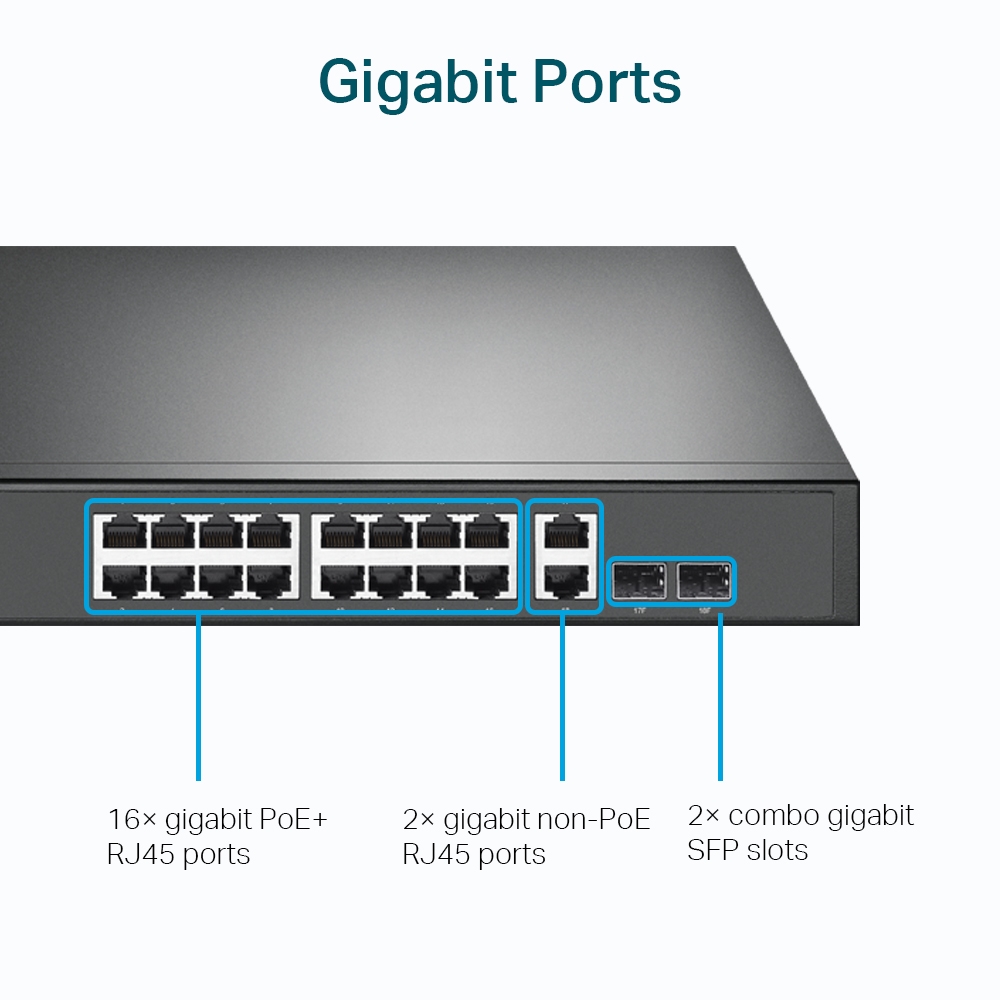

  • 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots

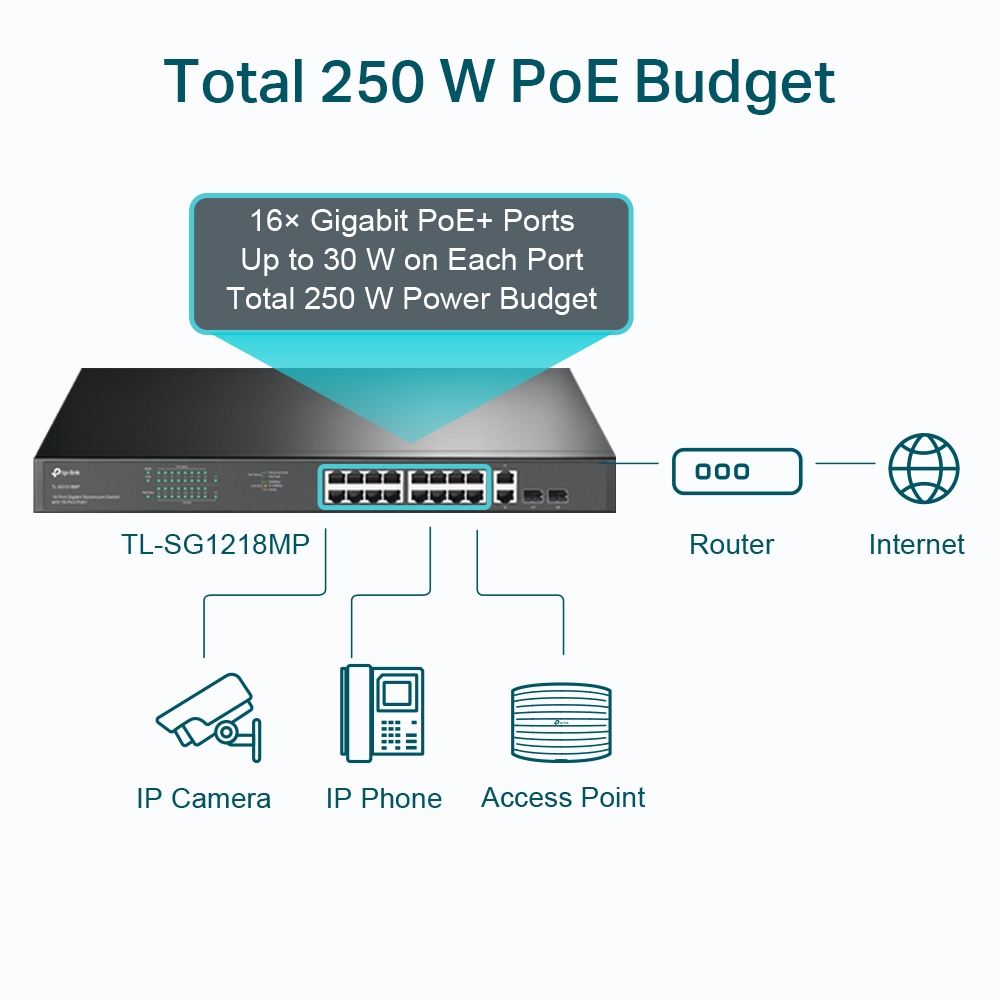

  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
  • Working with IEEE 802.3af/at compliant PDs
  • Plug and play, with no configuration and installation needed
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic

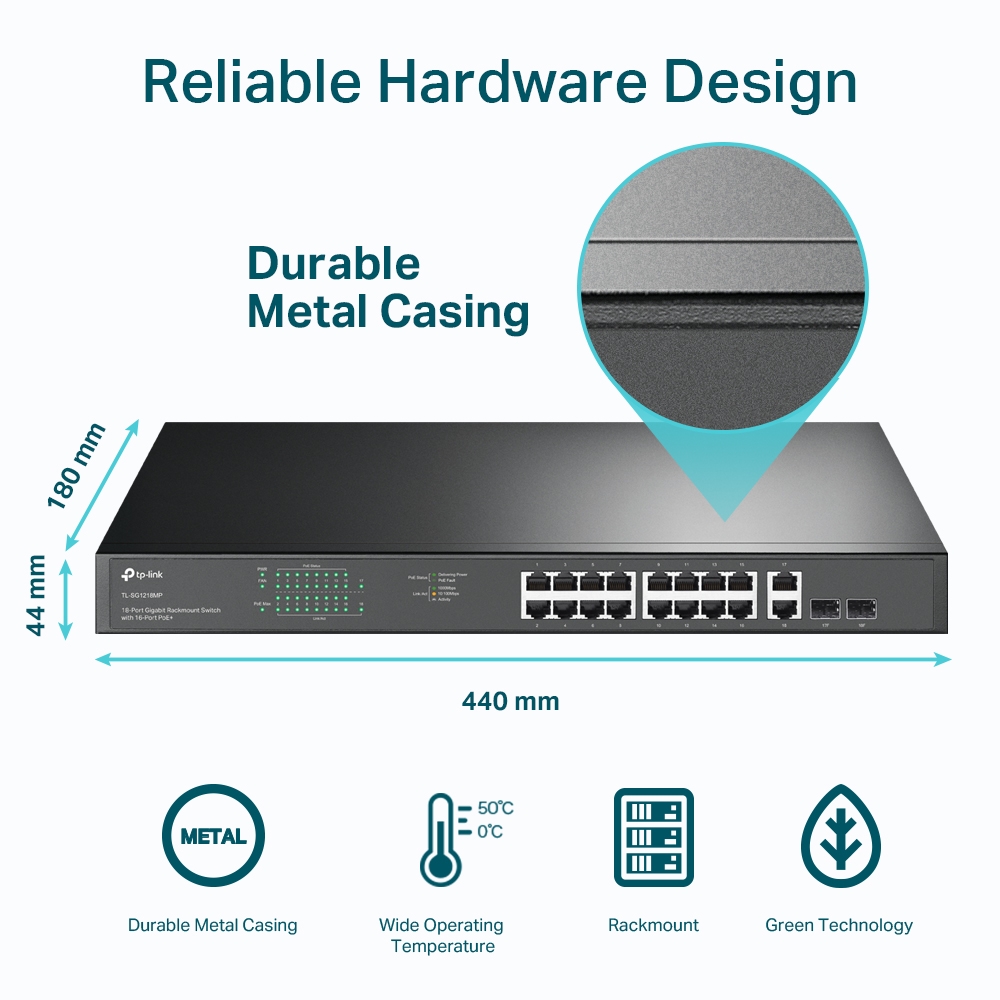

  • Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)
FiturSpesifikasi
HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface16× PoE+ gigabit RJ45 ports; 2× gigabit non-PoE RJ45 ports; 2× combo gigabit SFP slots
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 1000BASE-X MMF, SMF
Fan Quantity2
Physical Security LockYes
Power Supply100–240 VAC, 50/60 Hz
PoE+ Ports(RJ45)Standard: 802.3at/802.3af compliant; PoE Ports: Ports 1–16; PoE Power Budget: 250 W
Dimensions (W x D x H)17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)
MountingRack Mountable
Max Power Consumption21.4 W (220/50 Hz. no PD connected); 286.64 W (220/50 Hz. with 250 W PD connected)
Max Heat Dissipation72.97 BTU/h (no PD connected); 977.44 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity36 Gbps
Packet Forwarding Rate26.78 Mbps
MAC Address Table8K
Packet Buffer Memory4.1 Mbit
Advanced FunctionsCompatible With IEEE 802.3af/at Compliant PDs; 802.1p/DHCP QoS; Mac Address Auto-Learning And Auto-Aging; IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Jumbo Frame10 KB
OTHERS
CertificationCE, FCC, RoHS
Package ContentsTL-SG1218MP; Installation Guide; Power Cord; Rackmount Kit; Rubber Feet
EnvironmentOperating Temperature: 0–50 °C (32–122 °F); Storage Temperature: -40–70 °C (-40–158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
