TLK 100 WAVE PTX™ RADIO
| Network | 3G/4G, Wi-Fi |
| Channel Capacity | 96 Channels |
| Contact List | 300 contacts |
| Dimensions (H x W x L) | Without Antenna: 131 x 59 x 22 mm (5.2 x 2.3 x 0.9 in) With Antenna: 169 x 59 x 22 mm (6.7 x 2.3 x 0.9 in) |
| Weight with Battery | 170g (6.0 oz) |
| Battery Capacity | 3.7V (Nominal) 2500 mAh |
| Battery (2500mAh Li-Ion Battery) Operating Hours 5:5:90 Duty Cycle1 |
18 Hours |
| Voice Codec | OPUS |
| Bluetooth | V4.2, BLE |
| GPS | GNSS / A-GNSS (GPS, GLONASS, Galileo, BeiDou) |
| Wi-Fi | 802.11 a/b/g/n 2.4/5.0 GHz |
| Models Available | Pre-installed SIM – data service included in WAVE PTX subscription2 SIM free – add your own SIM and data service |
| IP Rating | IP54 IEC60529 |
| Apps Supported | Powered by WAVE PTX |
| Encryption | AES-256 |
Deskripsi

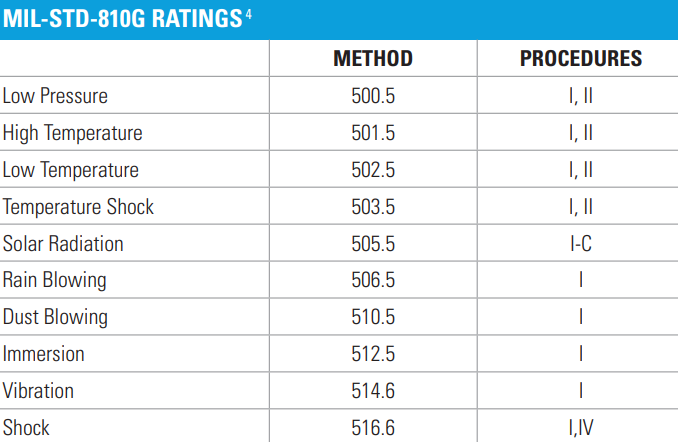

ENVIRONMENTAL SPECIFICATIONS
Operating Temperature : -20ºC to 60ºC / -4ºF to +140ºF (radio), -10ºC to 60ºC / 14ºF to 140ºF (with battery)
Storage Temperature : -40°C to 85°C (-40°F to +185°F)
Thermal Shock : Per MIL STD-810
Humidity : Per MIL STD-810
ESD : IEC 61000-4-2 Level 4
Dust and Water Intrusion : IEC60529 – IP54 Cat 2
Packaging Test : Per MIL STD-810
