SG2005P-PD

Kategori :

Gigabit Smart Switch
Tanyakan mengenai produk ini

Deskripsi

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

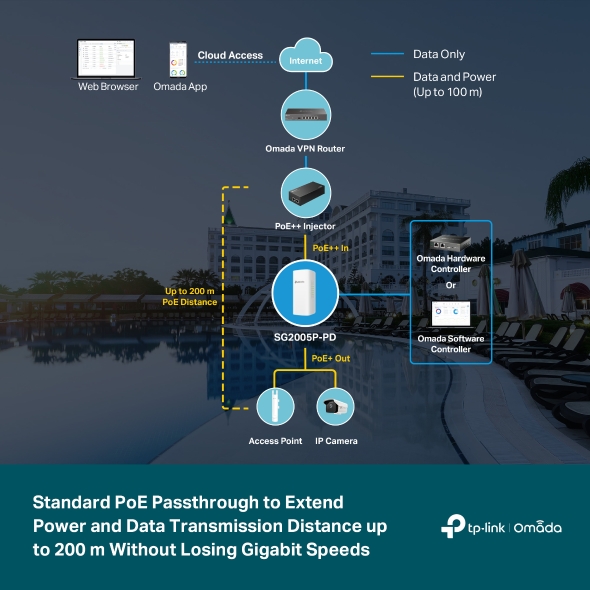

  • Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*

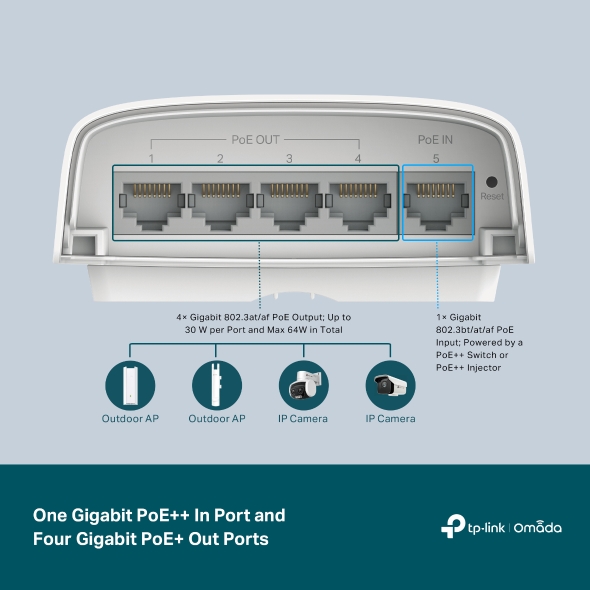

  • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
  • Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions.

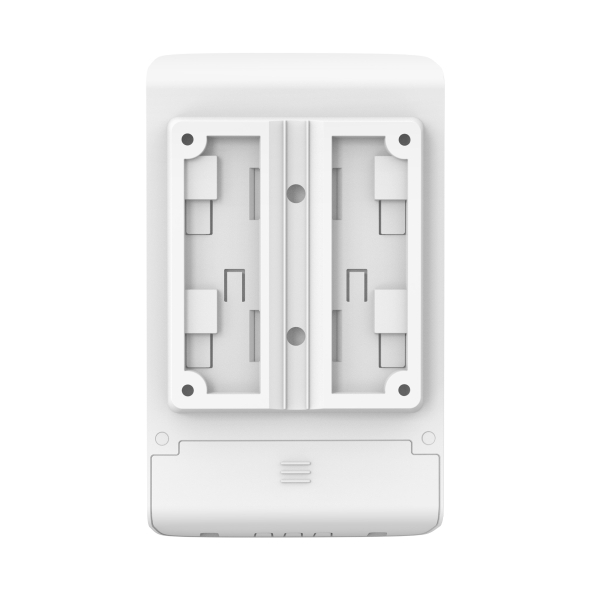

  • Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management.
  • Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
FeatureSpecification
HARDWARE FEATURES - Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

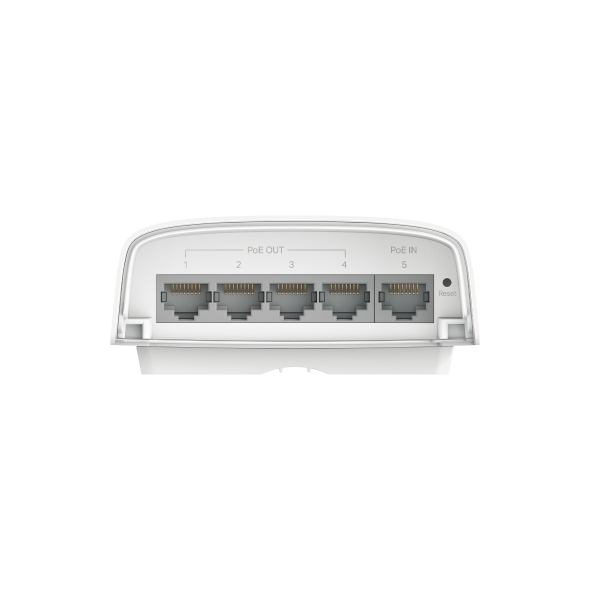

HARDWARE FEATURES - Interface1× 10/100/1000 Mbps RJ45 PoE In Port (compliance with 802.3af/at/bt); 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)
HARDWARE FEATURES - Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
HARDWARE FEATURES - Fan QuantityFanless
HARDWARE FEATURES - Power SupplyObtain Power from 802.3af/at/bt PoE Source
HARDWARE FEATURES - PoE Ports (RJ45)PoE In Port: Port 5, compliance with 802.3af/at/bt; PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE; PoE Power Budget: 64 W when powered by 802.3bt Type 4 (90 W); 44 W when powered by 802.3bt Type 3 (60 W); 19 W when powered by 802.3at; 6 W when powered by 802.3af
HARDWARE FEATURES - Dimensions (W x D x H)3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)
HARDWARE FEATURES - Max. Power Consumption71.5 W (when powered by 802.3bt Type 4 (90 W))
HARDWARE FEATURES - Max. Heat Dissipation243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))
PERFORMANCE - Switching Capacity10 Gbps
PERFORMANCE - Packet Forwarding Rate7.44 Mpps
PERFORMANCE - MAC Address Table8k
PERFORMANCE - Packet Buffer Memory4.1 Mbit
PERFORMANCE - Jumbo Frame9 KB
SOFTWARE FEATURES - Quality of Service802.1p CoS/DSCP priority; 8 priority queues; Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control: Port/Flow-based Rating Limit; Smoother Performance; Storm Control: Multiple Control Modes (kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
SOFTWARE FEATURES - L2 and L2+ Features32 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 32 IPv4/IPv6 Static Routes; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Static ARP; Proxy ARP; Gratuitous ARP; Link Aggregation: Static link aggregation, 802.3ad LACP, up to 8 aggregation groups and up to 8 ports per group; Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter/Protect, Root Protect; Loopback Detection; Flow Control: 802.3x Flow Control; Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Flow-Based, Ingress/Egress/Both; Device Link Detect Protocol (DLDP); 802.1ab LLDP/LLDP-MED
SOFTWARE FEATURES - L2 Multicast511 IPv4, IPv6 shared multicast groups; IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, Static Group Config; Multicast VLAN Registration (MVR); Multicast Filtering; MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config; Limited IP Multicast (256 profiles and 16 entries per profile)
SOFTWARE FEATURES - Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule
SOFTWARE FEATURES - VLANVLAN Group: Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 12 Entries; Protocol VLAN; GVRP; Voice VLAN
SOFTWARE FEATURES - Access Control ListSupport up to 230 entries; Time-Range: Time Slice, Week Time-Range, Absolute Time-Range, Holiday; Time-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, IP Protocol, TCP Flag, TCP/UDP Source Port, TCP/UDP Destination Port, DSCP/IP TOS; IPv6 ACL; Combined ACL; Rule Operation: Permit/Deny; Policy Action: Mirror, Rate Limit, Redirect, QoS Remark; ACL Rules Binding: Port Binding, VLAN Binding; Actions for flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark
SOFTWARE FEATURES - SecurityAAA; 802.1X: Port-based authentication, MAC (Host) based authentication, Authentication Method includes PAP/EAP-MD5, MAB, Guest VLAN, Support Radius authentication and accountability; IP/IPv6-MAC Binding: 512 Binding Entries, DHCP Snooping, DHCPv6 Snooping, ARP Inspection, ND Detection; IP Source Guard: 253 Entries, Source IP+Source MAC; IPv6 Source Guard: 183 Entries, Source IPv6 Address+Source MAC; DoS Defend; Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode; Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
SOFTWARE FEATURES - IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
SOFTWARE FEATURES - MIBsMIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIBs; RMON MIB (RFC1757, rmon 1,2,3,9)
MANAGEMENT FEATURES - Omada AppYes, through Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
MANAGEMENT FEATURES - Centralized ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
MANAGEMENT FEATURES - Cloud AccessYes, through Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
MANAGEMENT FEATURES - Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
MANAGEMENT FEATURES - Management FeaturesWeb-based GUI; Command Line Interface (CLI) through telnet; SNMPv1/v2c/v3; SNMP Trap/Inform; RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; SNTP; System Log
OTHERS - CertificationCE, FCC, RoHS
OTHERS - Package ContentSG2005P-PD; Mounting Kits; Installation Guide
OTHERS - System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
OTHERS - EnvironmentOperating Temperature: -40 to 60 °C (-40 to 140 °F); Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing
