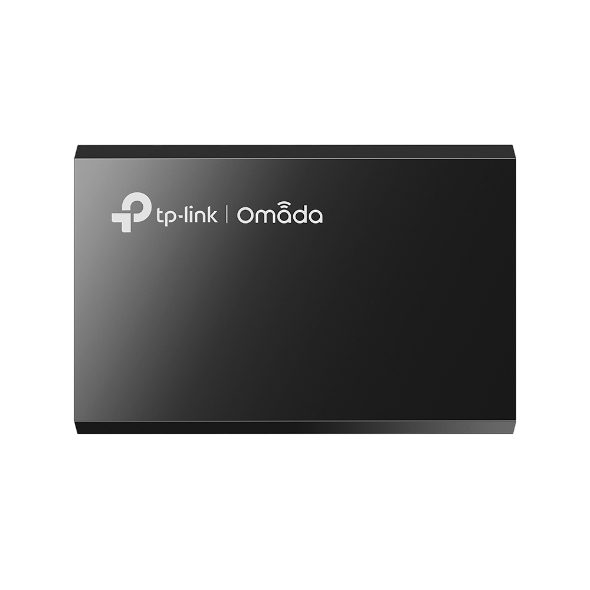

Omada PoE InjectorÂ
| Parameter / Feature | Specification Details |

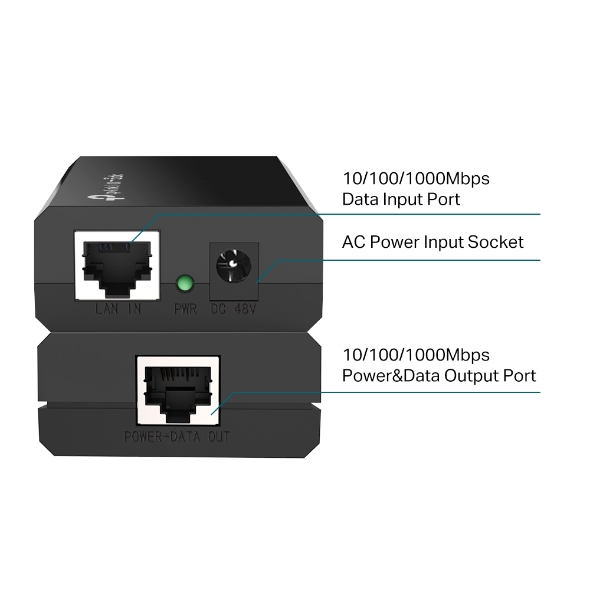

| HARDWARE - Interface | 2× 10/100/1000Mbps RJ45 Port | Auto Negotiation/Auto MDI/MDIX | 1× 48VDC Power Input Port |
| HARDWARE - Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) / EIA/TIA-568 100Ω STP (Max 100m) | 100BASE-TX: UTP category 5, 5e cable (Max 100m) / EIA/TIA-568 100Ω STP (Max 100m) | 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| HARDWARE - Power Supply | 15.4W (Max. 48VDC) |
| HARDWARE - LED Indicator | PWR |
| HARDWARE - Dimensions (W x D x H) | 3.2 x 2.1 x 0.9 in. (80.8 x 54 x 24 mm) |

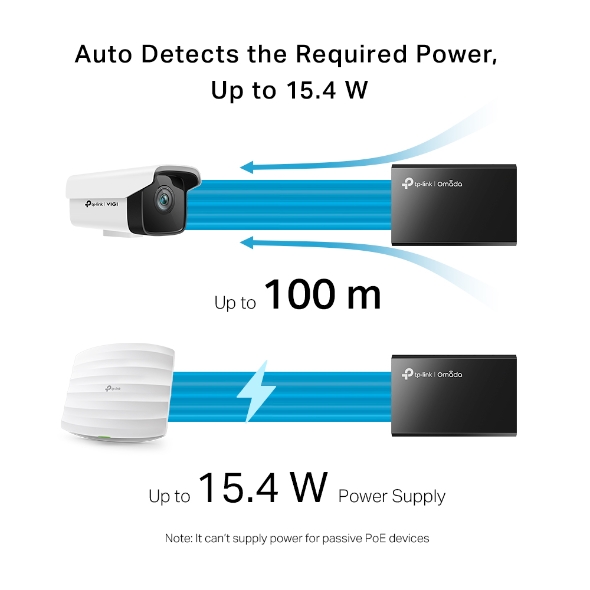

| SOFTWARE - Basic Functions | Compatible with IEEE 802.3af compliant PDs | Delivers power up to 100 meters | Auto-determines the necessary power requirements |
| OTHERS - Certifications | FCC, CE, RoHS |
| OTHERS - Package Contents | POE150S | Power Adapter | Installation Guide |
| OTHERS - System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux |
| OTHERS - Operating Environment | Operating Temp: 0℃~40℃ (32℉~104℉) | Storage Temp: -40℃~70℃ (-40℉~158℉) |
| OTHERS - Humidity Environment | Operating Humidity: 10%~90% non-condensing | Storage Humidity: 5%~90% non-condensing |
