Download PDF Version
ES220GMP

Kategori :

Easy Managed Switch
Tanyakan mengenai produk ini

Deskripsi

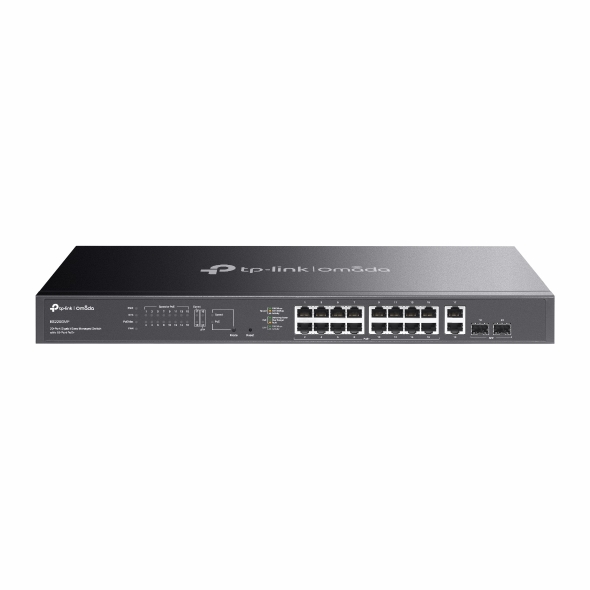

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+

  • 18× 10/100/1000Mbps RJ45 ports (16× 802.3af/at-compliant PoE+)
  • 2× Gigabit SFP slots
  • 250W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoSâ–³, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design
FeatureSpecification
HARDWARE FEATURES - Interface16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+); 2× 10/100/1000 Mbps RJ45 Port; 2× Gigabit SFP Slot; Auto-Negotiation/Auto MDI/MDIX
HARDWARE FEATURES - Fan Quantity2
HARDWARE FEATURES - InstallationRackmountable
HARDWARE FEATURES - Physical Security Lock√
HARDWARE FEATURES - Power Supply100–240V AC, 50/60Hz
HARDWARE FEATURES - PoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant; PoE Ports: 16 ports; PoE Budget: 250W available for all PoE+ ports, 30W max per port; Fast PoE & Perpetual PoE; PoE Auto Recovery ‡; Up to 250m PoE transmission distance **
HARDWARE FEATURES - Dimensions (W x D x H)17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
HARDWARE FEATURES - Surge Protection±6kV
PERFORMANCE - Packet Buffer Memory4 Mbit
PERFORMANCE - Jumbo Frame15 KB
PERFORMANCE - Switching Capacity40 Gbps
PERFORMANCE - Packet Forwarding Rate29.76 Mpps
PERFORMANCE - MAC Address Table8K
SOFTWARE FEATURES - Quality of ServicePort-based/802.1p/DSCP QoS; 8 Priority Queues; Priority Schedule Mode: WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control: Port-Based Rating Limit; Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control â–³
SOFTWARE FEATURES - L2 FeaturesStatic Link Aggregation; Loop Prevention / Loopback Detection; Flow Control: 802.3x Flow Control; Mirroring: Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both; Port Statistics: Port Mirror Status, Traffic Statistics; 802.1ab LLDP
SOFTWARE FEATURES - L2 MulticastIGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave
SOFTWARE FEATURES - VLANMTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID
SOFTWARE FEATURES - Transmission MethodStore-And-Forward
MANAGEMENT FEATURES - Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
MANAGEMENT FEATURES - Centralized ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
MANAGEMENT FEATURES - Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
MANAGEMENT FEATURES - Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
MANAGEMENT FEATURES - Management FeaturesWeb-based GUI; DHCP Client; Cable Diagnostics; Automatic Device Discovery †; Batch Configuration †; Batch Firmware Upgrading †; Unified Configuration †
OTHERS - CertificationFCC, CE, RoHS
OTHERS - Package ContentES220GMP; Power Cord; Mounting Brackets; Rubber Feet; Screws; Installation Guide
OTHERS - EnvironmentOperating Temperature: -5℃~50℃ (23℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Tanyakan mengenai produk ini
