ES205G

Kategori :

Easy Managed Switch

Deskripsi

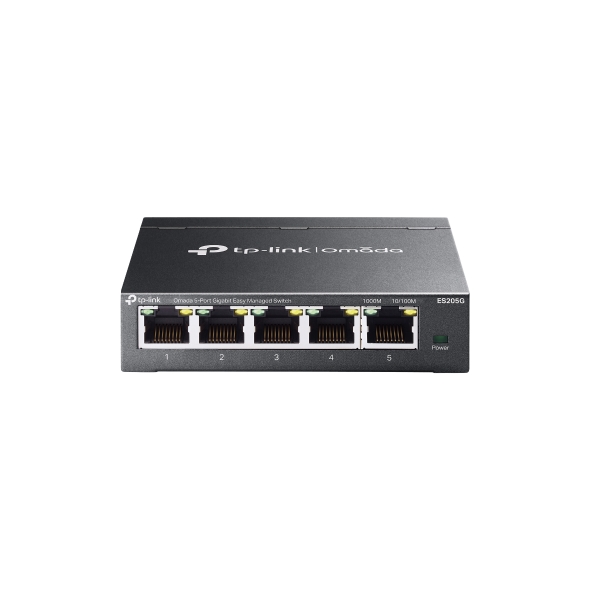

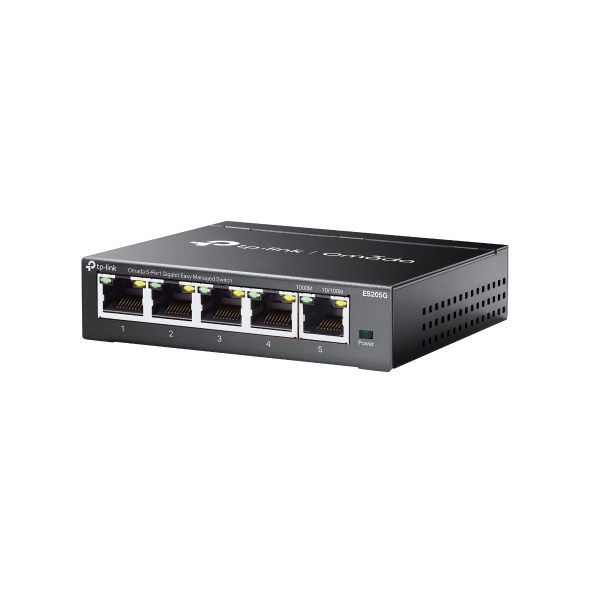

Omada 5-Port Gigabit Easy Managed Switch

5× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
Automatic Loop Prevention, VLAN, and IGMP Snooping Fanless design for silent operation

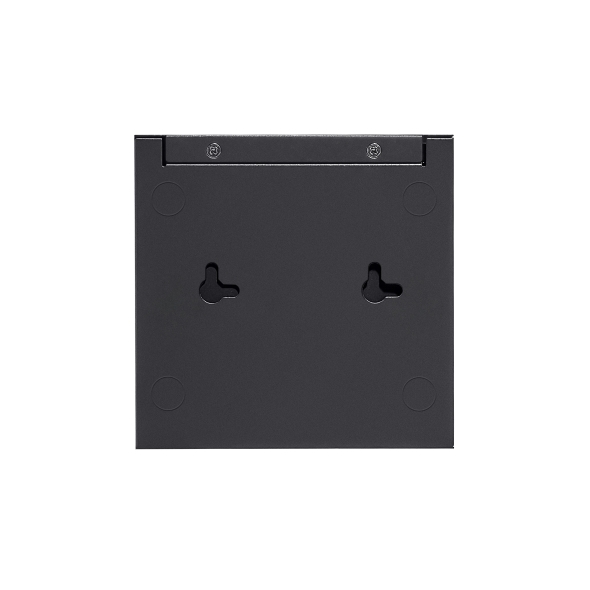

Durable metal casing and desktop/wall mounting design

Feature	Specification
SOFTWARE FEATURES - Quality of Service	Port-based/802.1p/DSCP QoS; 8 Priority Queues; Priority Schedule Mode: WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control: Port-Based Rating Limit; Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control △
SOFTWARE FEATURES - L2 Features	Static Link Aggregation; Loop Prevention / Loopback Detection; Flow Control: 802.3x Flow Control; Mirroring: Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both; Port Statistics: Port Mirror Status, Traffic Statistics; 802.1ab LLDP
SOFTWARE FEATURES - L2 Multicast	IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave
SOFTWARE FEATURES - VLAN	MTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID
SOFTWARE FEATURES - Transmission Method	Store-And-Forward
MANAGEMENT FEATURES - Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
MANAGEMENT FEATURES - Centralized Management	Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
MANAGEMENT FEATURES - Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
MANAGEMENT FEATURES - Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
MANAGEMENT FEATURES - Management Features	Web-based GUI; DHCP Client; Cable Diagnostics; Automatic Device Discovery †; Batch Configuration †; Batch Firmware Upgrading †; Unified Configuration †
OTHERS - Certification	FCC, CE, RoHS
OTHERS - Package Content	ES205G; Power Adapter; Installation Guide; Rubber Feet
OTHERS - Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
